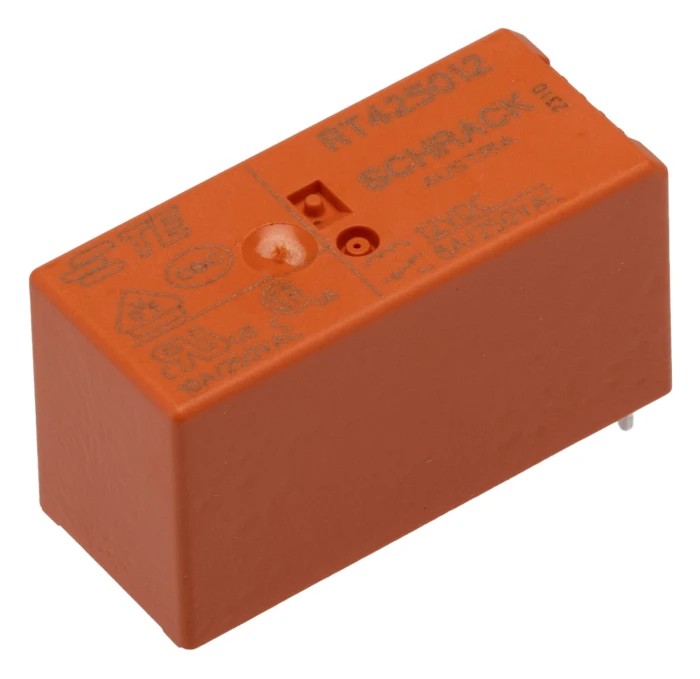

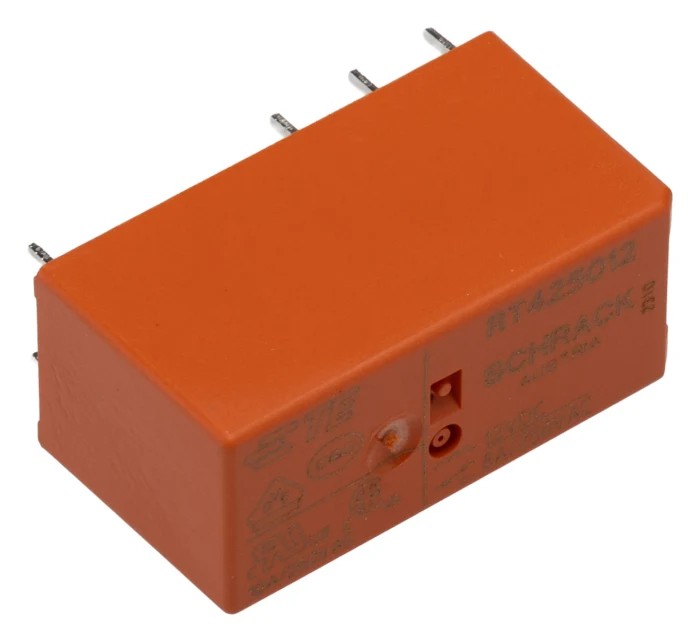

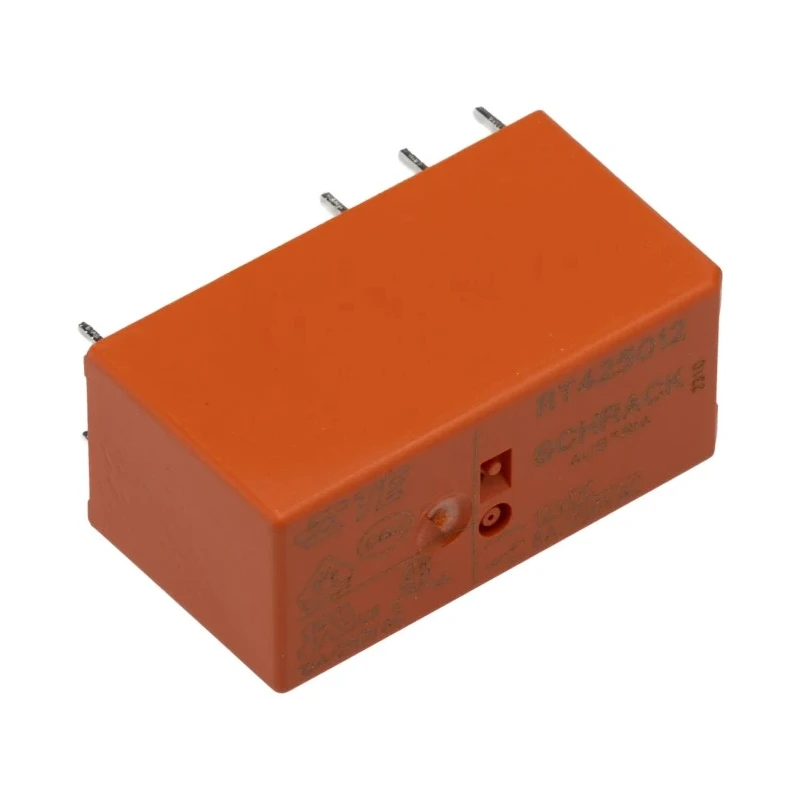

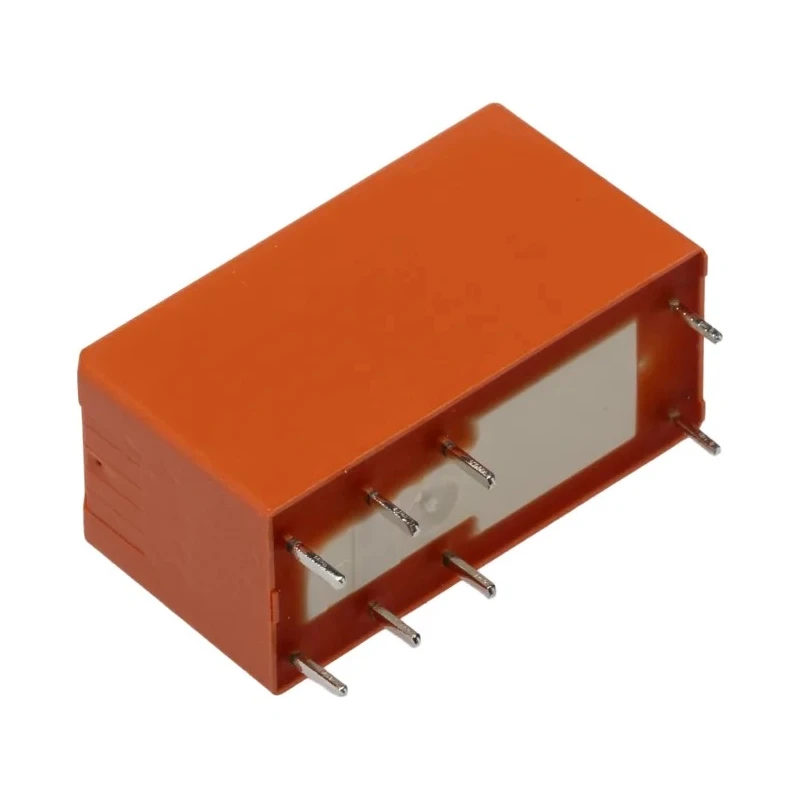

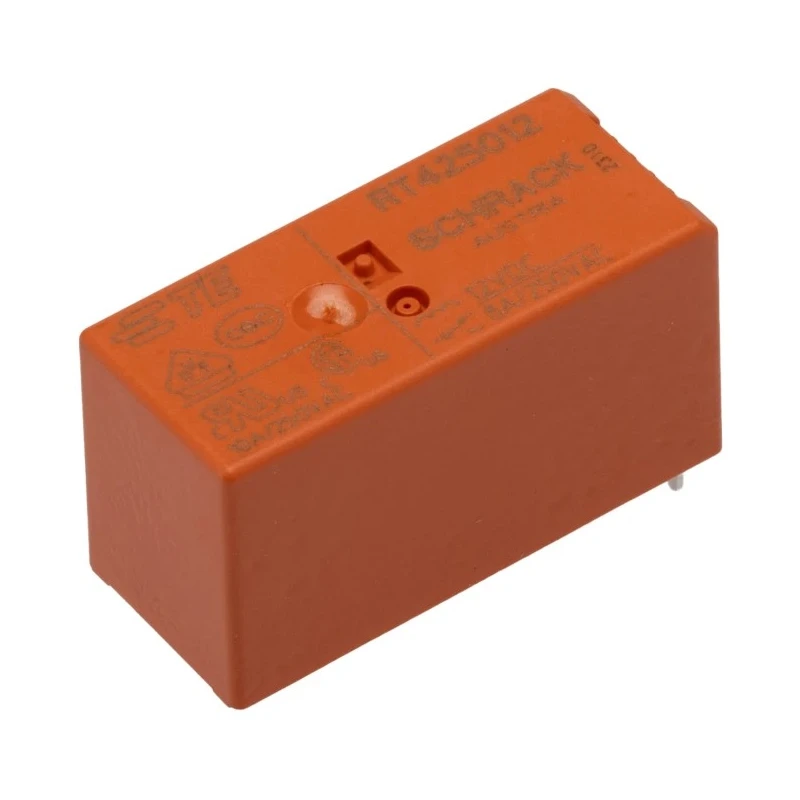

TE Connectivity PCB Power Relay 12V DC Coil 8A Switching Current DPDT RT425012

TE Connectivity RT425012 PCB Power Relay is a high-quality, double pole double throw (DPDT) relay featuring a 12V DC coil voltage and an 8A switching current, perfect for various industrial and commercial applications. This relay is tailored for through-hole PCB mounting, providing a compact and reliable switching solution for automation, interface systems, domestic devices, security lighting, and heating controls.

The relay dimensions are 29mm in length, 12.7mm in width, and 15.7mm in height, allowing easy integration onto intricate PCB layouts. The gold-plated contact material ensures superior conductivity and extended lifespan under switching loads up to 400V AC. Operating reliably through a temperature range of -40°C to +85°C, it is suited for harsh electrical environments.

With a coil resistance of 360Ω and low coil power consumption of 250mW, this TE Connectivity RT425012 relay efficiently balances power use and performance. The solder terminal type facilitates secure and consistent PCB soldering processes. Furthermore, the product complies with IEC 60335-1 safety standards, is RoHS compliant to meet environmental regulations, and carries VDE approval for performance assurance.

This relay series (RT2) is known for flux-proof pinning at 5mm spacing, enhancing reliability during manufacturing. It caters to applications requiring safe and versatile switching with the capability of double pole double throw contact configuration.

Applications include interface electronics, automation control systems, domestic appliances, security lighting installations, and heating system controls. The relay's robustness and certified standards make it ideal for demanding environments in industrial, commercial, and domestic sectors.

Operates at coil voltage of 12V DC for efficient control. Double Pole Double Throw (DPDT) contact configuration for versatile switching. Supports maximum switching AC voltage of 400V AC. High quality gold-plated contact material ensures durability and reliable conductivity.

Compact dimensions with Length 29mm, Width 12.7mm, Height 15.7mm for easy PCB integration. Designed to withstand wide operating temperatures from -40°C to +85°C. Low coil power consumption rated at 250mW for energy savings.

Terminal type is solder, compatible with standard PCB assembly processes. Meets international standards including IEC 60335-1, RoHS compliant, and VDE approved. Country of origin Austria, ensuring high manufacturing quality.
