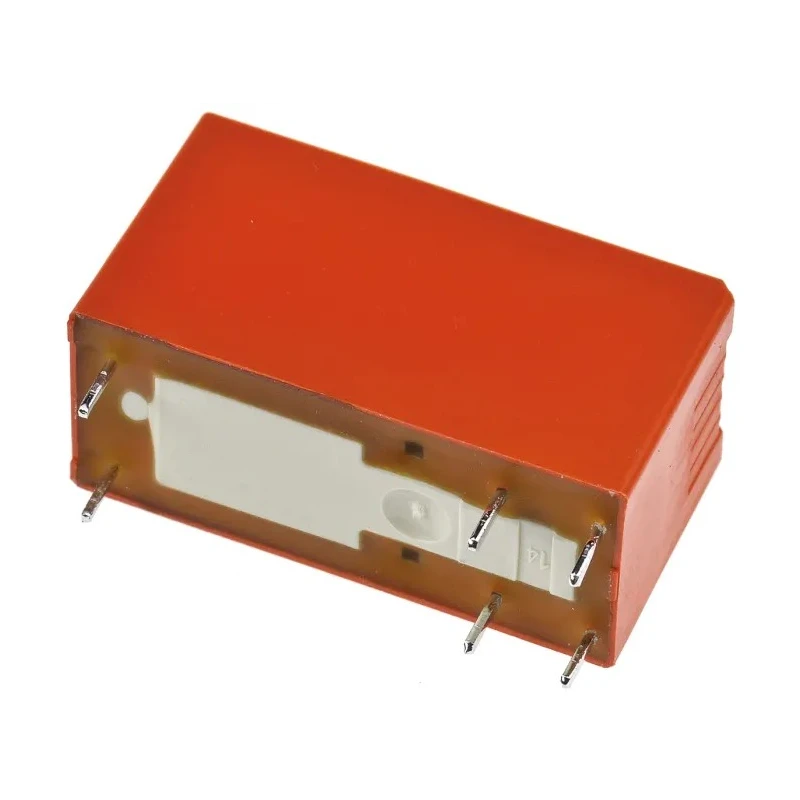

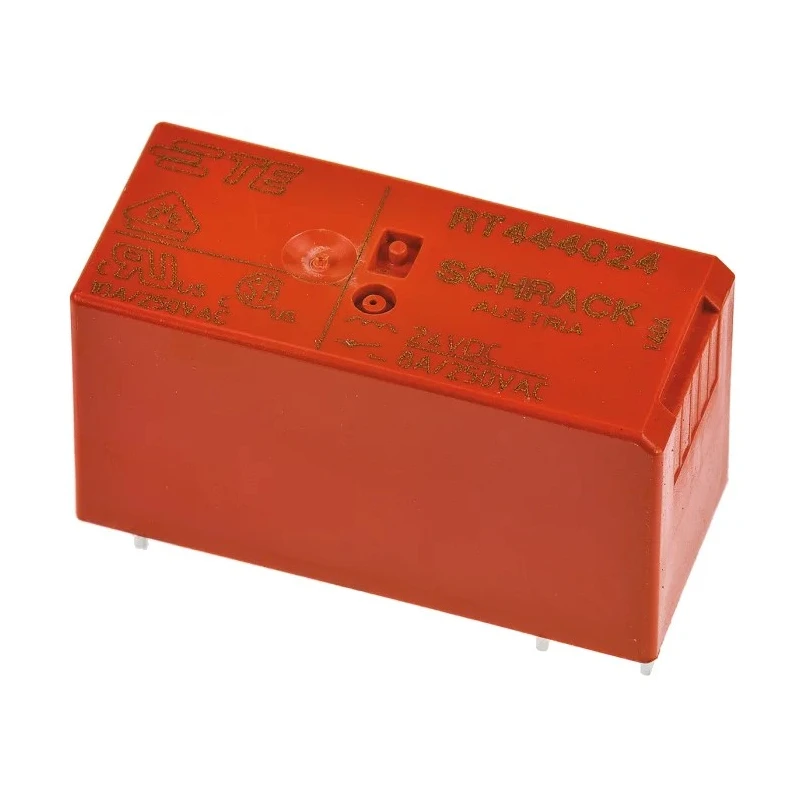

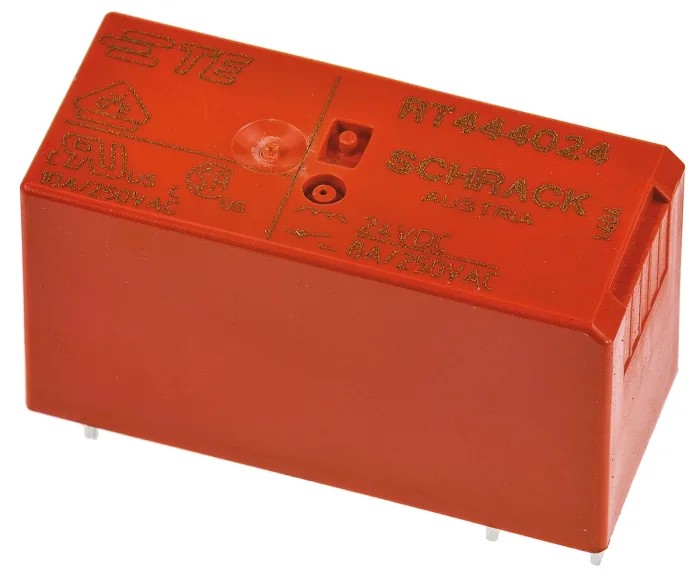

TE Connectivity PCB Power Relay 24V DC Coil 8A Switching Current DPST RT444024

TE Connectivity RT444024 PCB Power Relay is a high-performance relay designed for industrial, automation, and domestic applications requiring reliable electrical switching. It operates with a 24V DC coil voltage and features an 8A switching current capacity, supporting switching of AC voltages up to 400V. The relay uses a DPST (Double Pole Single Throw) contact configuration, providing dual switching circuits in a compact form suitable for PCB mounting.

Constructed with silver nickel alloy contacts, the relay offers excellent conductivity and longevity. Its coil resistance of 1.4 kΩ and low coil power of 250 mW ensure efficient operation. The measured dimensions are 29mm in length, 12.7mm in width, and 15.7mm in height, making it suitable for space-constrained designs.

This relay complies with IEC 60335-1 and VDE standards and is RoHS certified, making it suitable for safe and environmentally conscious use. It operates reliably within an operating temperature range of -40°C to 85°C, making it adaptable across various industrial environments. The solder terminal type ensures firm mounting on printed circuit boards, facilitating efficient assembly.

Applications for the TE Connectivity RT444024 relay include automation systems, security lighting controls, heating system management, and general interface switching in industrial and domestic setups. Its robust construction and compliance with international standards make it an ideal choice for engineers and designers requiring durable and reliable power switching components.

Operates with 24V DC coil voltage for controlled switching. DPST contact configuration supports dual independent switching. High switching current rating of 8A for versatile applications. Compact design with dimensions 29 x 12.7 x 15.7 mm fits PCB layouts efficiently.

Silver nickel alloy contacts ensure long-term durability. Low coil power consumption of 250 mW enables energy-efficient operation. Compliance with IEC 60335-1, VDE standards, and RoHS directives ensures quality and safety.

Wide operating temperature range from -40°C to 85°C for harsh environments. Soldered terminal type facilitates reliable PCB mounting. Manufactured in Austria adhering to high production standards. Discover more Power Relays and related components in the Electronics & Electricals section at EnvMart for your industrial and automation needs.
