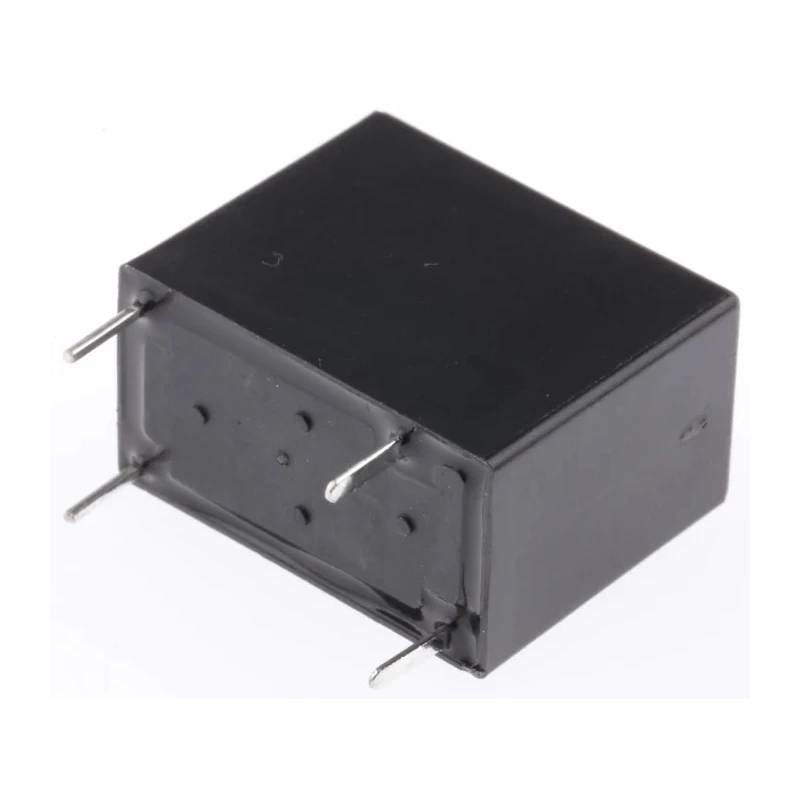

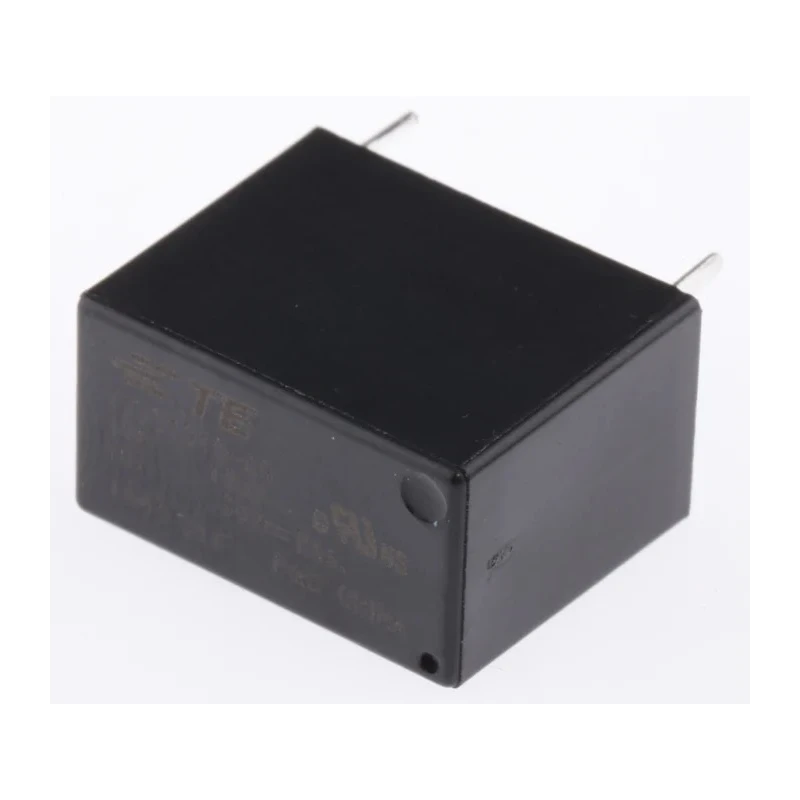

TE Connectivity DIN Rail Power Relay 5V DC Coil 10A Switching Current SPST T77S1D10-05
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 14.7mm |
| Length | 18.2mm |
| Model | T77S1D10-05 |
| Width | 14mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | T77 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Coil Resistance | 55Ω |
| Coil Voltage | 5V dc |
Key Features
- Designed for DIN rail mounting ensuring easy installation in control panels.
- Compact dimensions of 18.2mm length, 14.7mm height, and 14mm width fit space-constrained applications.
- Coil resistance of 55 ohms and silver alloy contact material for durability and efficient electrical conduction.
- Wide operating temperature range from -40°C to +85°C suitable for industrial environments.
- Through-hole terminal type provides secure and stable electrical connections.
- RoHS compliant ensuring environmentally safe materials and manufacturing.
- Silver alloy contacts support high switching capacity and long service life.
- Immersion cleanable case design for enhanced reliability in challenging conditions.
Product Description
TE Connectivity T77S1D10-05 is a high-quality DIN Rail Power Relay designed for robust industrial and automation applications. Featuring a 5V DC coil voltage and a 10A switching current, this SPST contact relay offers reliable electrical switching performance for control and signal conditioning tasks.
This relay is part of the T77 series, noted for its miniature size and immersion cleanable case, supporting demanding industrial, laboratory, HVAC, manufacturing, and electrical automation environments. It is engineered to operate reliably in temperatures ranging from -40°C to +85°C, making it suitable for a variety of harsh conditions.
The relay’s compact dimensions of 18.2mm length, 14.7mm height, and 14mm width enable installation in space-limited control panels, while its DIN rail mount ensures straightforward integration into standard industrial racks. The through-hole terminal type guarantees robust and secure electrical connections.
Constructed with silver alloy contacts, the relay provides excellent conductivity and durability, supporting frequent switching loads. Coil resistance is 55 ohms, optimized for efficient coil activation while minimizing power consumption.
This product is RoHS compliant, affirming its adherence to environmental regulations without sacrificing industrial performance. Its immersion cleanable case further enhances reliability by protecting internal components during maintenance or cleaning processes.
Designed for DIN rail mounting ensuring easy installation in control panels. Compact dimensions of 18.2mm length, 14.7mm height, and 14mm width fit space-constrained applications. Coil resistance of 55 ohms and silver alloy contact material for durability and efficient electrical conduction.
Wide operating temperature range from -40°C to +85°C suitable for industrial environments. Through-hole terminal type provides secure and stable electrical connections. RoHS compliant ensuring environmentally safe materials and manufacturing.
Silver alloy contacts support high switching capacity and long service life. Immersion cleanable case design for enhanced reliability in challenging conditions.
The TE Connectivity T77S1D10-05 relay is highly recommended for industrial electrical control, automation systems, HVAC systems, manufacturing equipment, laboratory applications, and any scenario demanding reliable switching performance with compact size.
Explore more electronic relays and power control components in the Power Relay category on EnvMart for comprehensive automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current of 10A, making it suitable for various control and signal conditioning tasks.
The relay operates with a coil voltage of 5V DC, which is essential for its activation.
It has compact dimensions of 18.2mm in length, 14.7mm in height, and 14mm in width, allowing for installation in space-constrained applications.
The relay features a Single Pole Single Throw (SPST) contact configuration, suitable for various switching applications.
The T77S1D10-05 operates reliably within a temperature range of -40°C to +85°C, making it suitable for harsh industrial environments.
This model utilizes a through-hole terminal type, which provides secure and stable electrical connections.
Yes, this relay is RoHS compliant, ensuring that it adheres to environmental regulations regarding hazardous substances.
The coil resistance is 55 ohms, which is optimized for efficient coil activation and minimizes power consumption.
The contacts are made of silver alloy, which supports high switching capacity and contributes to a long service life.
This relay is designed for DIN rail mounting, facilitating easy installation in control panels.
The relay is manufactured in China, as indicated in its specifications.
This model is suitable for industrial electrical control, automation systems, HVAC systems, and laboratory applications, among others.
