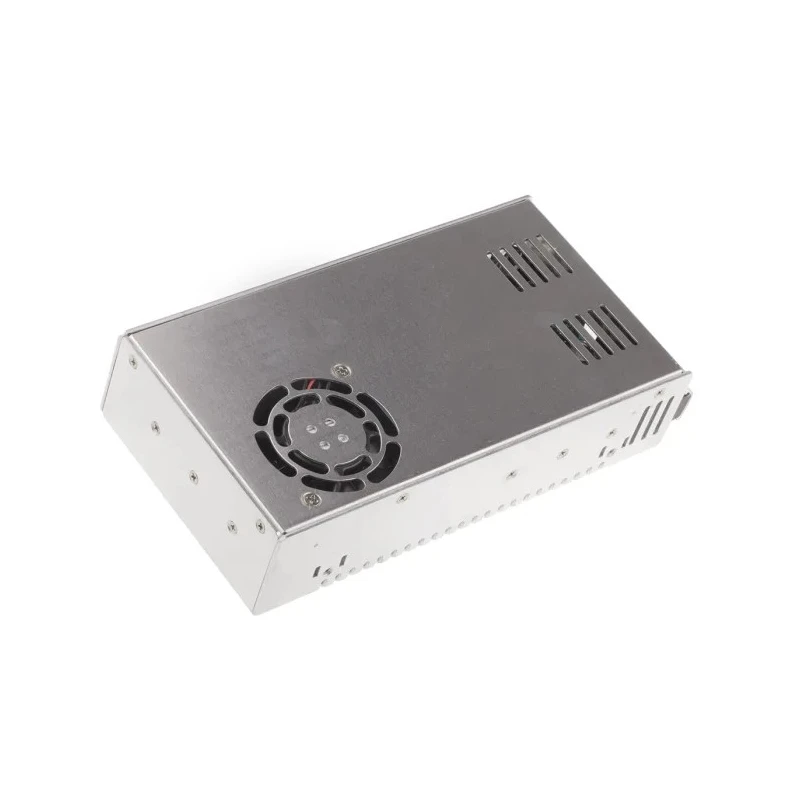

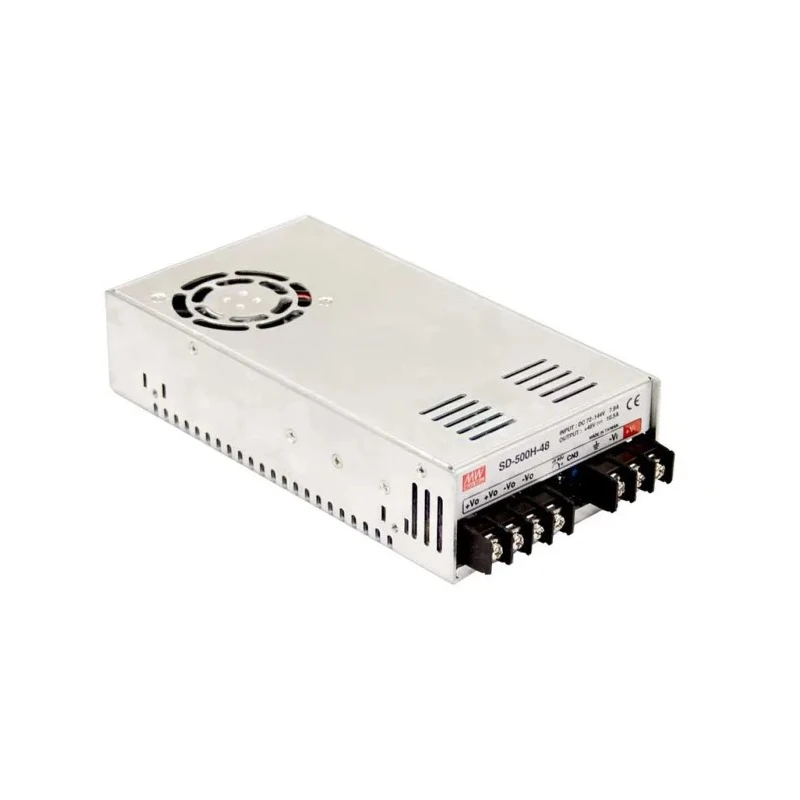

MEAN WELL DC/DC Converter 48V DC Output, 72V-96V DC Input, 10.5A Output Current, 504W, Chassis Mount, 60°C Max SD-500H-48

MEAN WELL SD-500H-48 is a high reliability DC/DC Converter designed for industrial and electronic power supply applications. It provides a stable 48V DC output from a wide input voltage range between 72V and 96V DC, delivering up to 10.5A output current and 504W maximum power. This unit is optimally suited for chassis mounting applications due to its compact size and robust construction.

The converter features an ultra-wide 4:1 input voltage ratio that allows flexible voltage compatibility. It achieves a high efficiency of 90%, contributing to reduced energy loss and heat generation. Designed for demanding environments, the product operates reliably over a broad temperature range from -20°C minimum to 60°C maximum.

MEAN WELL incorporates multiple protection mechanisms including short circuit, overload, over-voltage, and over-temperature safeguards, ensuring long-term reliability and safety. Isolation voltage between input and output is rated at 2kV AC to prevent electrical noise and interference.

Additional user conveniences include remote ON/OFF control, remote sensing to compensate voltage drops, and an LED indicator that signals power status clearly. The converter complies with important EMC standards such as EN 55022 Class B and EN 61000-4-2 electromagnetic immunity to operate seamlessly in complex electronic systems.

Its physical dimensions (215mm length, 115mm width, and 50mm depth) and lightweight design (1.15kg) enable installation flexibility in industrial, laboratory, manufacturing, and power supply environments. The chassis mounting facilitates secure and reliable fixing within electrical panels or equipment racks.

Overall, the MEAN WELL SD-500H-48 DC/DC Converter delivers dependable, efficient, and safe power conversion tailored for demanding electronic and industrial applications. Designed for chassis mounting with robust construction for industrial applications.

Supports ultra-wide 4:1 input voltage range for flexible integration. Features efficient operation with 90% efficiency rating. Operational temperature range from -20°C to 60°C ensures reliability in harsh environments. Includes protections against short circuit, overload, over-voltage, and over-temperature conditions.

Isolation voltage of 2kV AC between input and output ensures safety and noise reduction. Remote ON/OFF control and remote sensing functions for enhanced control. LED power-on indicator to facilitate operational monitoring.

Meets EMC standards EN 55022 Class B and EN 61000-4-2 for electromagnetic compatibility. Compact dimensions of 215mm length, 115mm width, and 50mm depth support easy installation. Explore the MEAN WELL DC/DC Converter series at EnvMart for reliable power solutions in industrial, laboratory, manufacturing, and automation applications.
