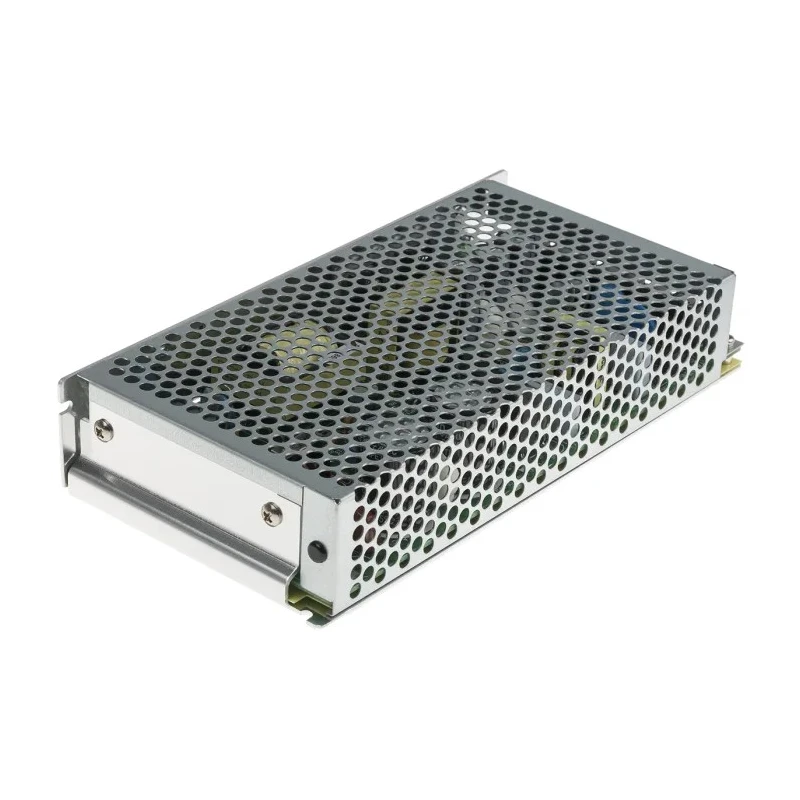

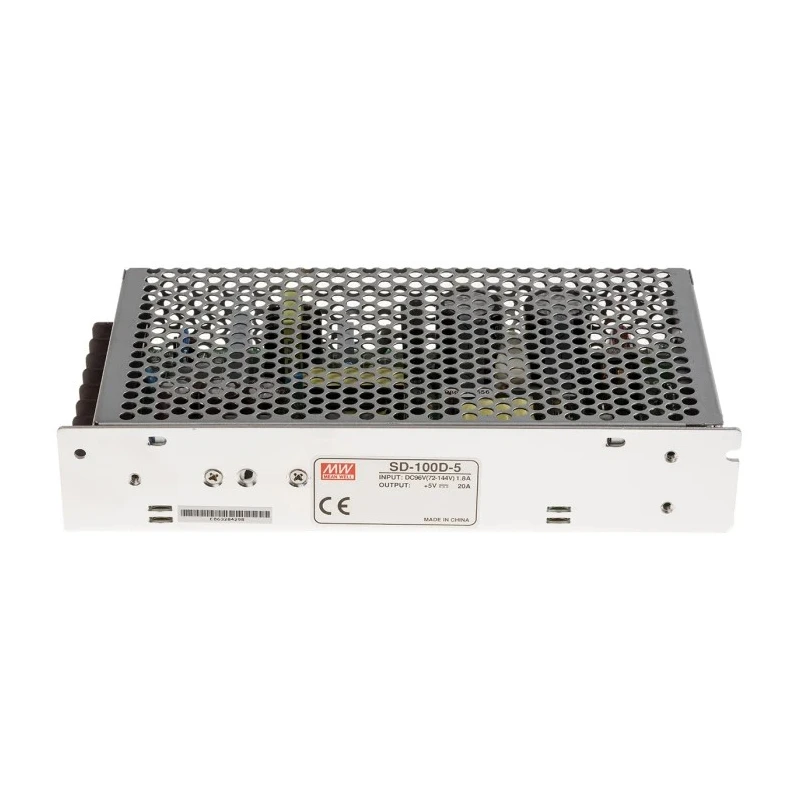

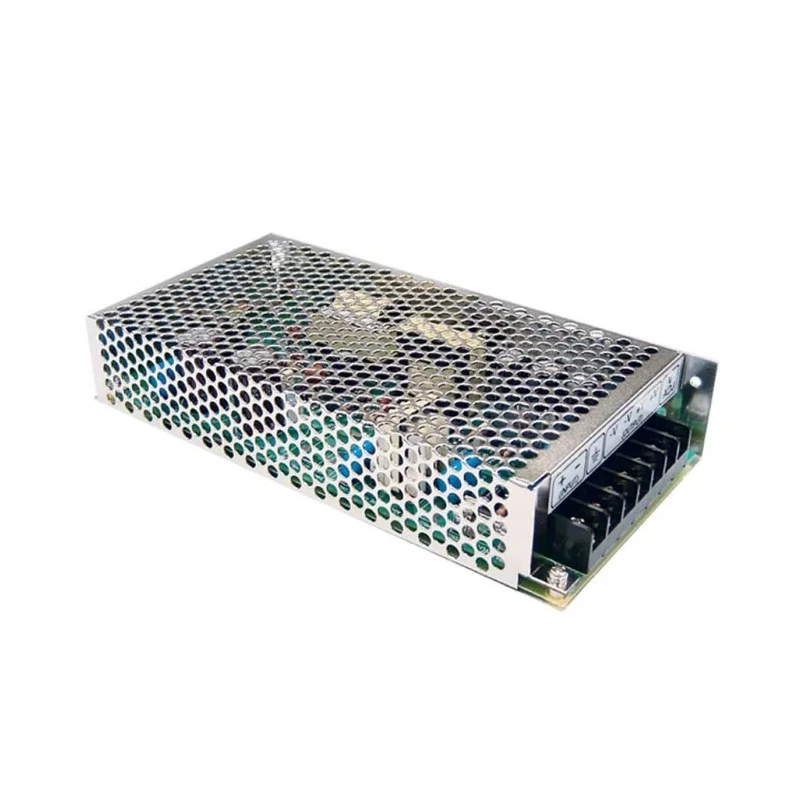

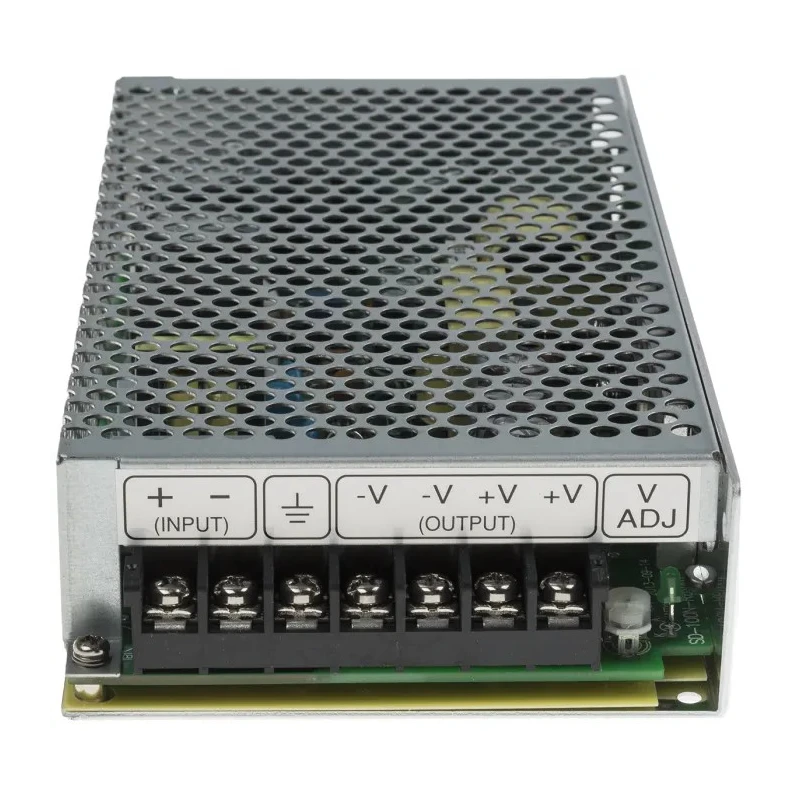

MEAN WELL SD-100 Series Single Output Regulated Isolated DC-DC Converter 5V DC, 96V DC Input, 20A Output Current SD-100D-5

MEAN WELL SD-100D-5 is a high-quality single output DC-DC converter designed for industrial and electronic applications requiring stable power conversion. It provides a regulated output voltage of 5V DC at a maximum current of 20A with a power rating of 100W. The device supports a wide input voltage range from 72V to 96V DC, making it suitable for use in power systems where voltage can vary significantly.

This converter features a compact chassis mount design with dimensions of 199mm in length, 38mm in width, and 38mm in depth, allowing for easy integration into equipment racks or electrical cabinets. It has a mean time between failures (MTBF) of 355500 hours, demonstrating its reliability in continuous operation environments.

The SD-100D-5 includes comprehensive protection mechanisms such as short circuit protection, overload protection, and overvoltage protection, ensuring the safety and longevity of both the converter and the connected devices. It operates efficiently at 76%, contributing to reduced heat generation and electrical losses.

Its operating temperature range of -10°C to 60°C enables use in various industrial and commercial settings including manufacturing systems, automation equipment, communications infrastructure, and laboratory instrumentation. The converter also provides a high isolation voltage of 1.5kV AC between input and output, enhancing noise immunity and meeting EMC standards EN 55022 Class B and EN 61000-4-2.

LED indicators clearly show power status, simplifying troubleshooting and system monitoring. The output voltage can be finely adjusted up to 5.5V to meet specific application requirements. Additionally, its ripple and noise are kept within 100mV peak-to-peak, ensuring clean and stable power delivery to sensitive electronics.

MEAN WELL’s SD-100D-5 DC-DC converter is particularly suited for industrial power supplies, control systems, telecommunications equipment, and other electronic applications where reliable DC voltage conversion is critical.

High reliability with MTBF of 355500 hours. Wide 2:1 input voltage range from 72V to 96V DC. Compact chassis mount form factor for ease of installation. Short circuit, overload, and overvoltage protections incorporated. LED power-on indicator for operational status.
