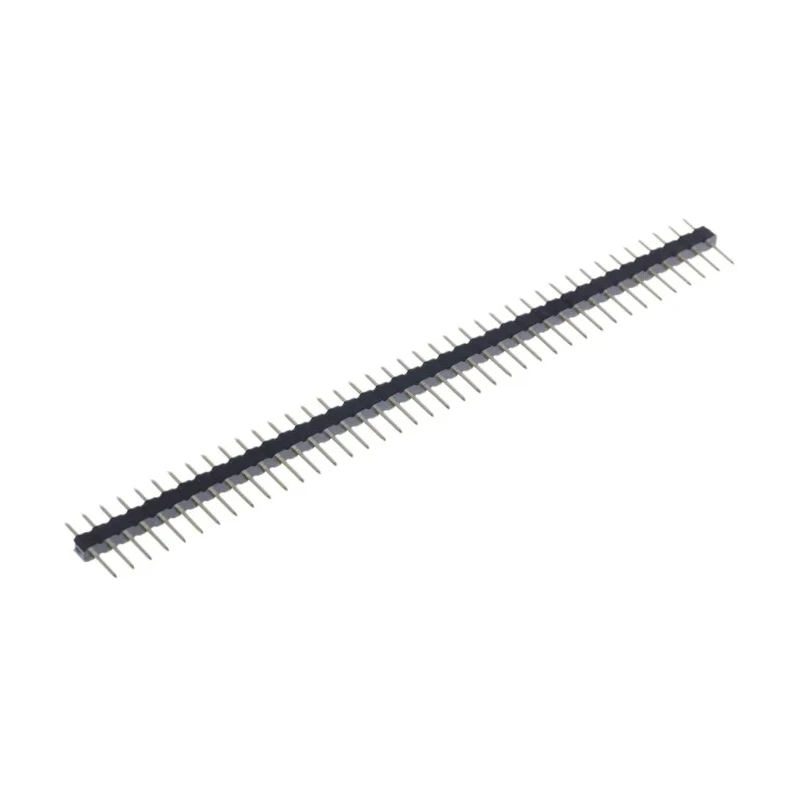

ASSMANN WSW A-SL200 Series Straight Through Hole Pin Header 40 Contacts 2 mm Pitch 1 Row Unshrouded SL200

ASSMANN WSW SL200 Series Straight Through Hole Pin Header is a high-quality electronic connector designed for board-to-board applications requiring secure and precise connections. This model features 40 male contacts arranged in a single row with a 2 mm pitch, enabling compact and reliable interfacing with printed circuit boards. The connector is constructed using a polybutylene terephthalate housing, ensuring durability and insulating properties suitable for industrial and commercial electronics.

The contacts are made of brass and plated with gold to maximize conductivity while resisting corrosion, thus maintaining signal integrity over extended use. Unshrouded, straight orientation of the connector provides ease of access for mating and visual inspection. It is designed for through-hole mounting, which ensures robust mechanical attachment to PCB assemblies in computing, telecommunications, and industrial control equipment.

Operating temperature ranges from -40°C up to 105°C, supporting deployment in harsh environments. The connector supports a current of 1A and withstands voltage ratings up to 125V, which makes it suitable for low-power electronic circuits. Tail pins of 2.8 mm length and mating pins of 4 mm length provide secure electrical connections and accommodation for wave or hand soldering processes.

This product is ideal for use in electronic assembly, automation, manufacturing, and laboratory equipment requiring reliable and standardized interfacing components. The SL200 pin header is manufactured in China and supplied in new condition to ensure quality and consistency.

Featuring 40 male contacts arranged in a single straight row. 2 mm pitch spacing ensures precise board-to-board connections. Constructed with polybutylene terephthalate housing for durability. Brass contacts plated with gold provide excellent conductivity and corrosion resistance.

Unshrouded design allows easy mating and inspection. Suitable for through-hole mounting on PCBs enhancing mechanical stability. Operates reliably between -40°C and 105°C. Tail pin length of 2.8 mm and mating pin length of 4 mm for secure connections.

Designed for 1A current and voltage rating up to 125V. Manufactured in China with new product condition. Explore our extensive Electronics Components category on EnvMart for compatible connectors and other PCB components from trusted brands including ASSMANN WSW.
