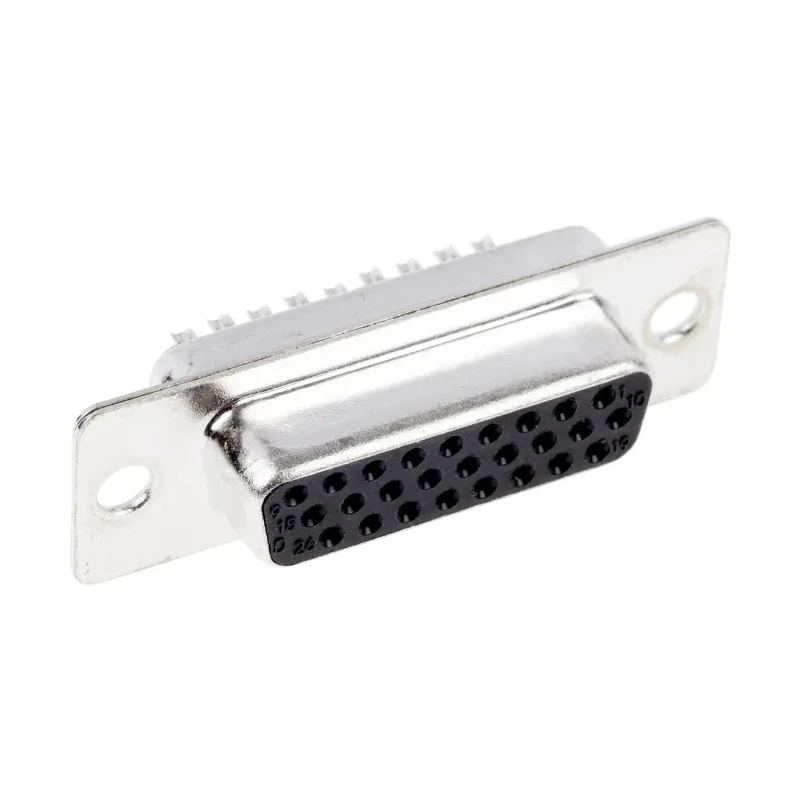

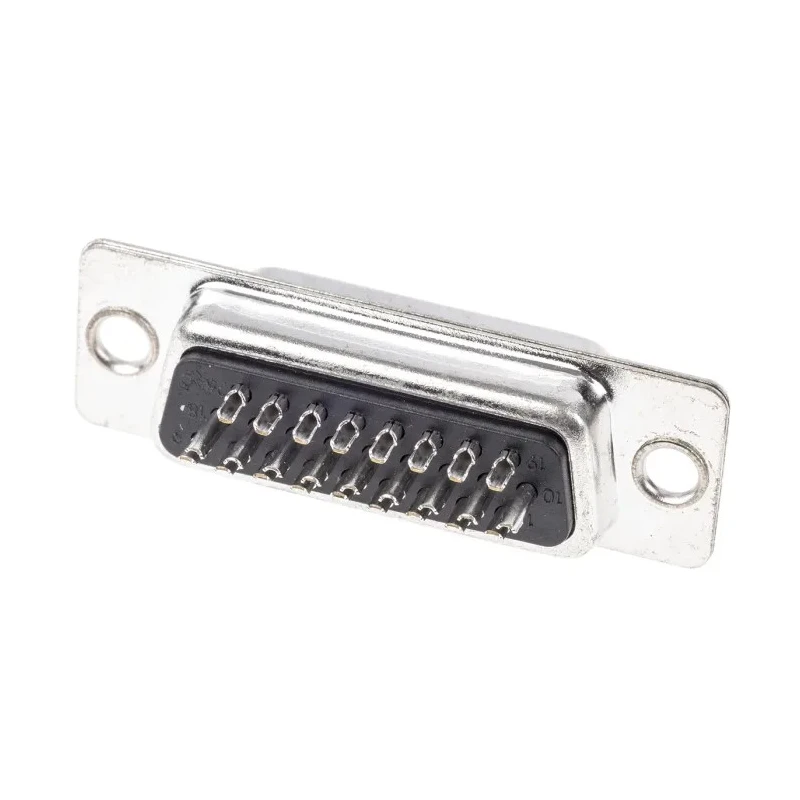

ASSMANN WSW 26 Way Straight Panel Mount D-Sub Connector A-HDF 26 LL/Z
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250.0V |
| Brand | ASSMANN WSW |
| Orientation | Straight |
| Current | 3A |
| Model | A-HDF 26 LL/Z |
| Mount Type | Panel Mount |
| Housing Material | Metal |
| Contact Material | Brass |
| Series | A-HDF |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector Type D | D-Sub |
| D-Sub Shell Size | A |
Key Features
- Accommodates 26 contacts with a 3A current rating.
- Features a straight orientation ideal for panel mounting.
- Metal housing ensures durability and robust protection.
- Contacts made of brass with gold over nickel plating for reliable conductivity.
- Operates up to 250 V with temperature range from -55°C to 105°C.
- Termination type is solder for secure connections.
- High density D-Sub shell size A compatible with various applications.
- Manufactured in China ensuring consistent quality standards.
Product Description
ASSMANN WSW A-HDF 26 LL/Z is a high density 26 way straight panel mount D-Sub connector specifically engineered for demanding electronic component applications requiring reliable and durable connections.
The connector features a robust metal housing to provide excellent mechanical strength and effective shielding. It includes 26 brass contacts plated with gold over nickel, offering superior conductivity and corrosion resistance, thus ensuring long-lasting performance in industrial and electronic environments.
Designed for panel mounting with a straight orientation, it facilitates secure and stable installation in various types of assemblies. This connector supports a maximum current rating of 3 amps and a voltage rating of 250 volts, making it suitable for multiple industrial and electronic uses.
The operating temperature range spans from -55 degrees Celsius up to 105 degrees Celsius, enabling operation in harsh environmental conditions without compromising reliability. Solder termination type ensures a strong and stable electrical connection suitable for permanent installations.
Applications for the ASSMANN WSW A-HDF 26 LL/Z D-Sub connector include industrial control systems, data communications, instrumentation, and electronic assembly requiring compact and reliable connectors with high pin density.
Set contains 1 piece of 26 way straight panel mount D-Sub Connector with solder cup terminals and mounting flanges for ease of installation and improved production efficiency. Accommodates 26 contacts with a 3A current rating.
Features a straight orientation ideal for panel mounting. Metal housing ensures durability and robust protection. Contacts made of brass with gold over nickel plating for reliable conductivity. Operates up to 250 V with temperature range from -55°C to 105°C.
Termination type is solder for secure connections. High density D-Sub shell size A compatible with various applications. Manufactured in China ensuring consistent quality standards.
Designed for use in electronic manufacturing, HVAC systems, industrial construction, laboratory equipment, and communications networking requiring dependable panel mount connectors.
Explore a wide range of ASSMANN WSW connectors and components on EnvMart for comprehensive solutions to your industrial and electronic connection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 3 amps.
It can handle a maximum voltage of 250 volts.
The operating temperature range is from -55°C to 105°C.
This model uses a solder termination type for secure connections.
The contacts are made of brass with gold over nickel plating for reliable conductivity.
It accommodates 26 contacts.
This connector features a straight orientation, ideal for panel mounting.
The housing is made of metal, providing durability and protection.
It is suitable for applications in industrial control systems, data communications, and electronic assembly.
This is a D-Sub connector with a high density shell size A.
It is manufactured in China, ensuring consistent quality standards.
Yes, it includes mounting flanges for ease of installation and improved production efficiency.
