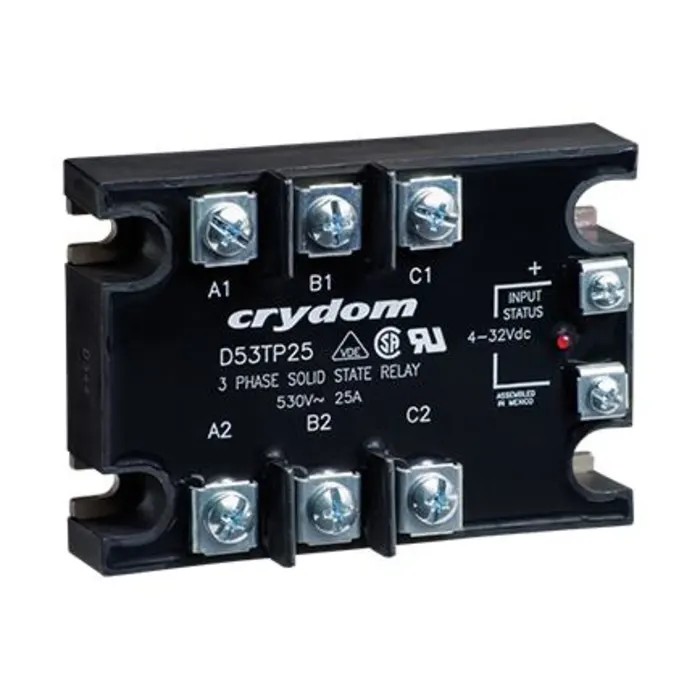

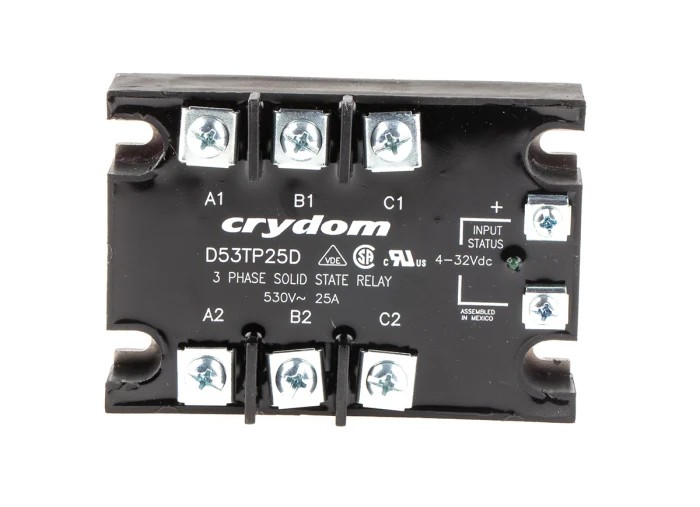

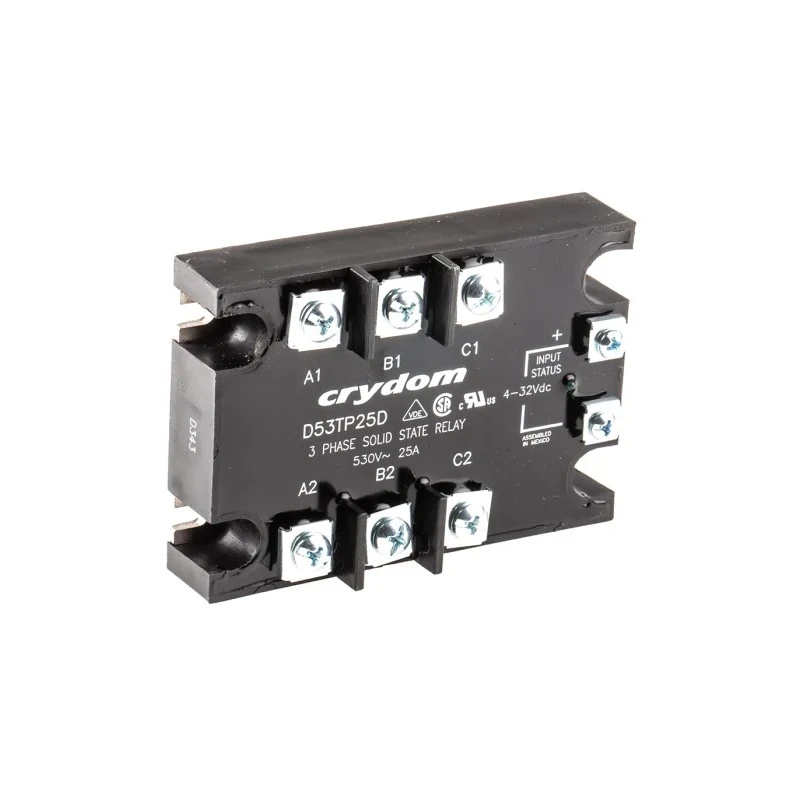

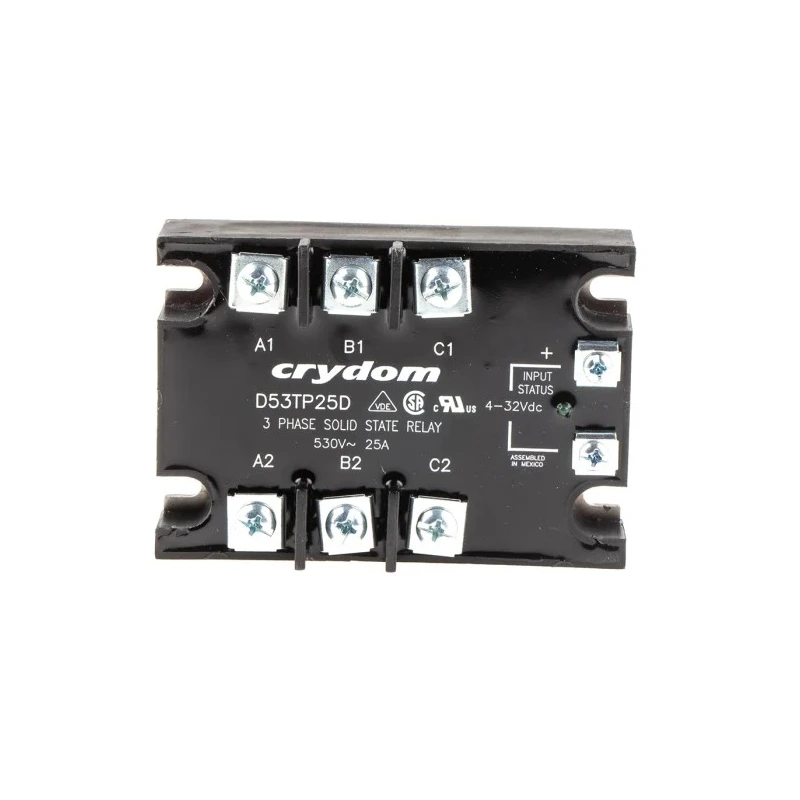

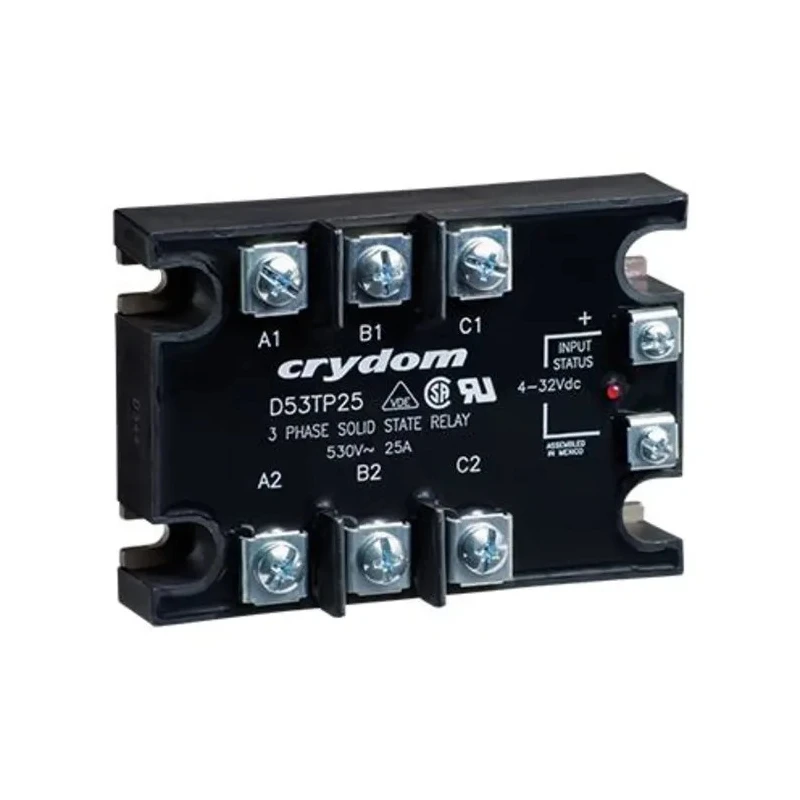

Crydom D5 Series Solid State Relay, Panel Mount, 25A Load Current, 530 Vrms Load Voltage, 32V DC Control D53TP25D

Crydom D53TP25D D5 Series Solid State Relay is a high-performance panel mount relay designed for industrial electrical switching applications. Rated for a maximum load current of 25A and a load voltage of up to 530 Vrms, this relay ensures robust operation in demanding settings. It operates with a DC control voltage ranging from 4V to 32V, making it compatible with various control systems.

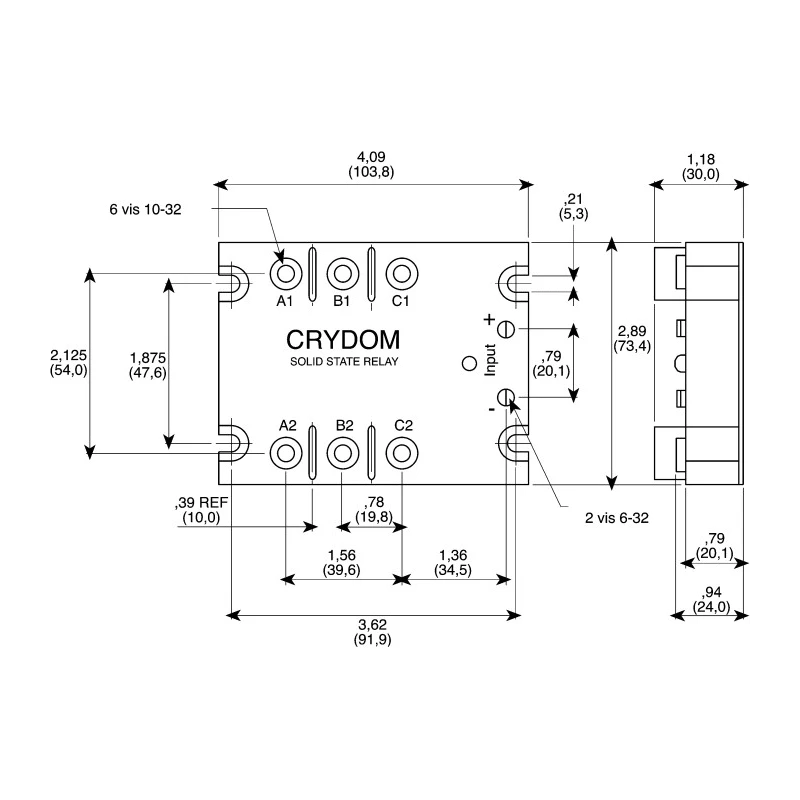

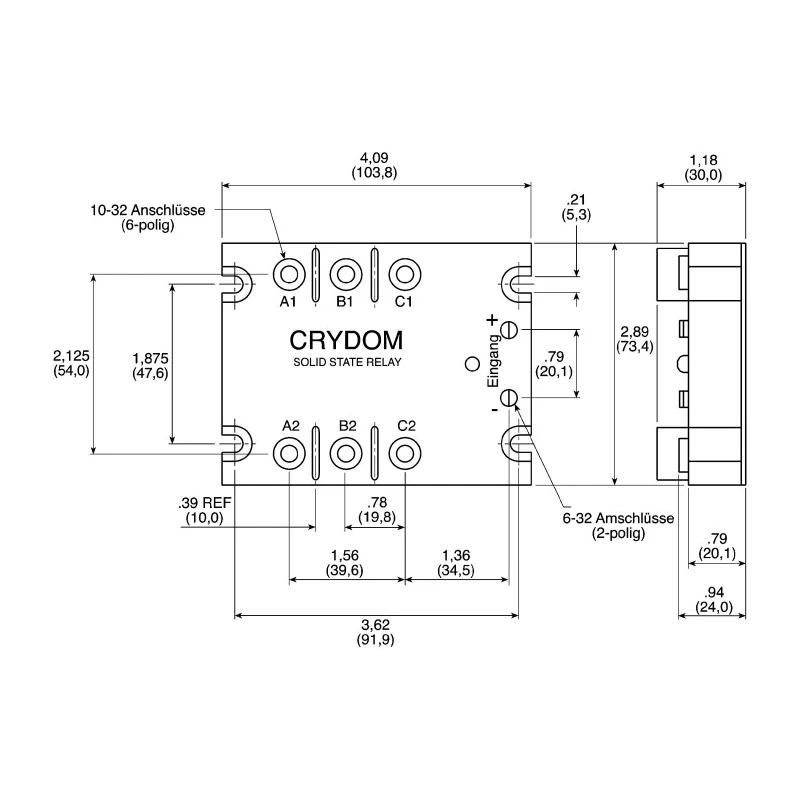

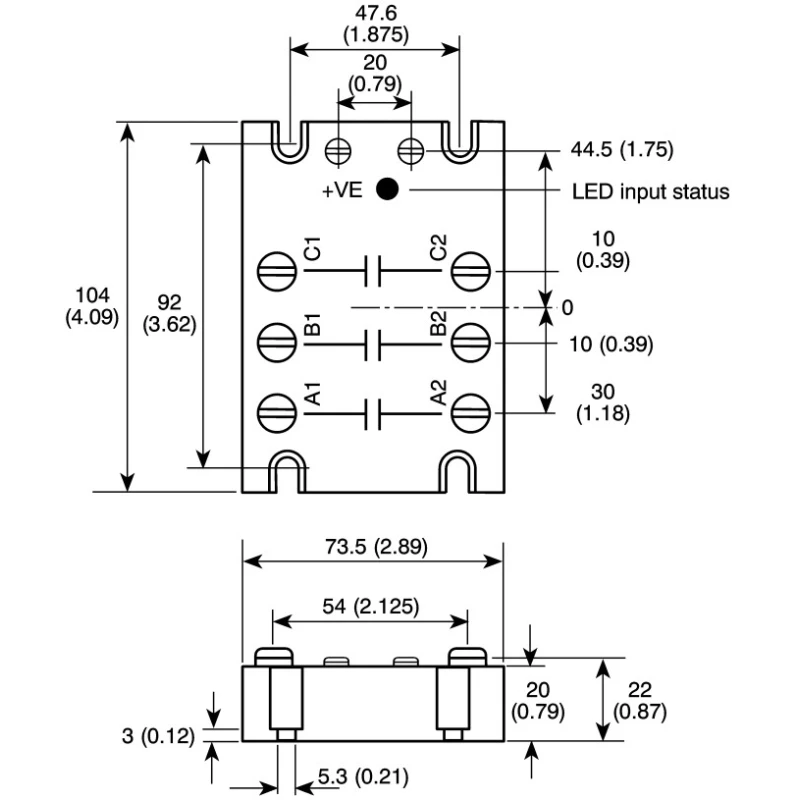

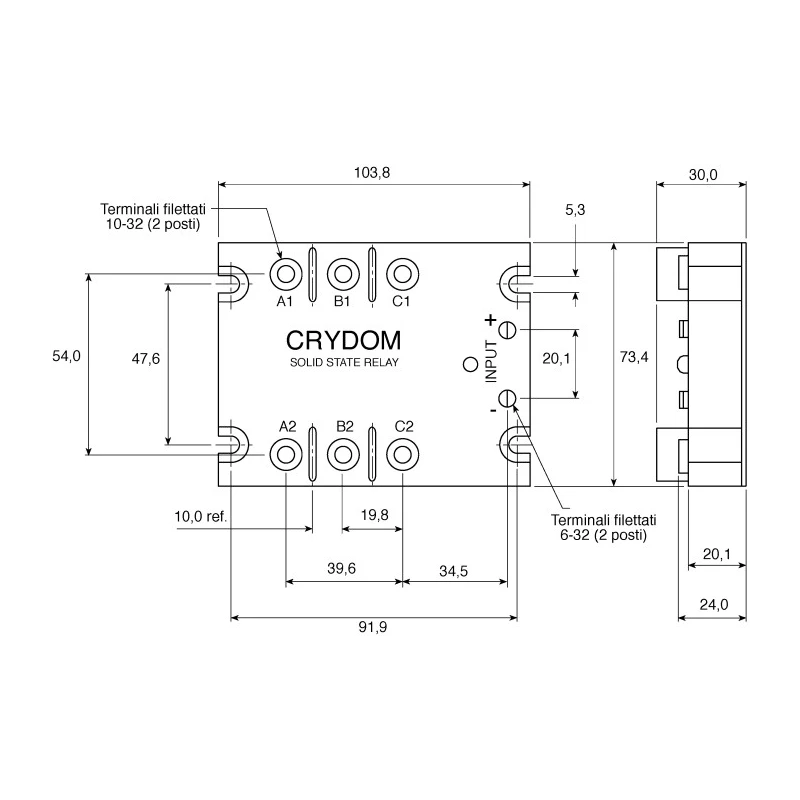

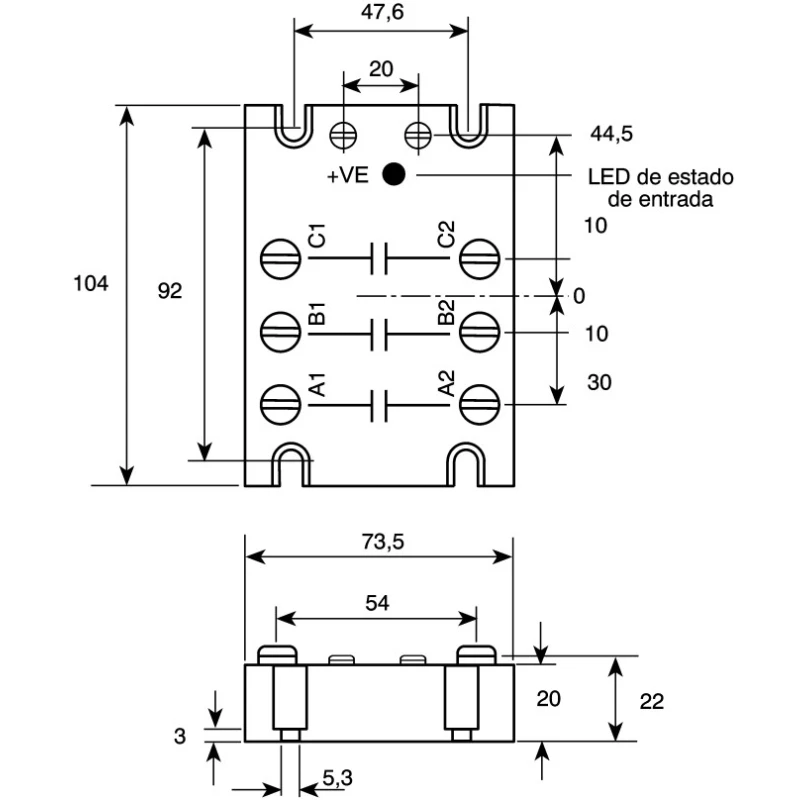

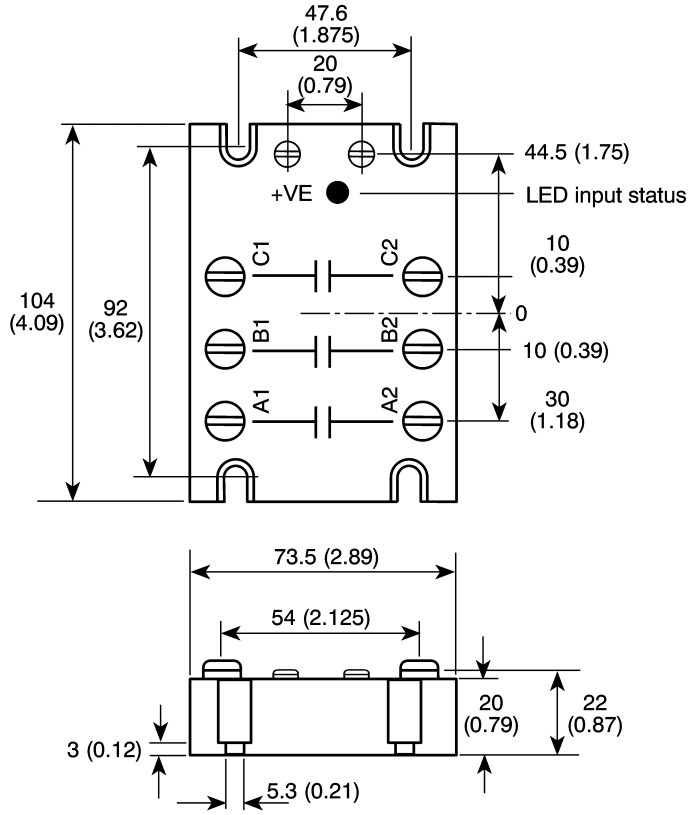

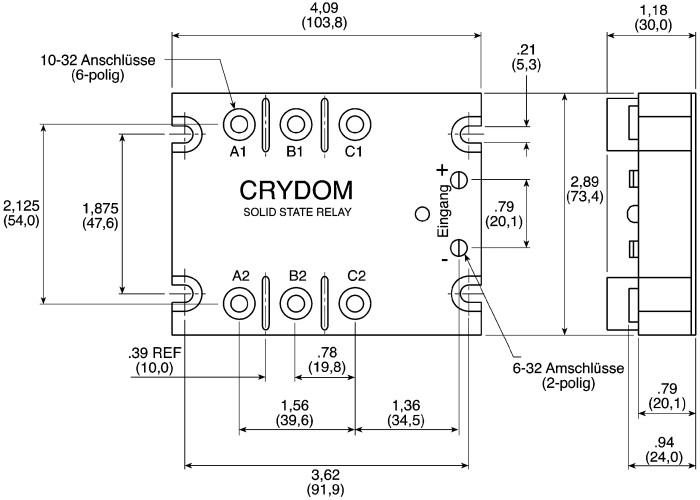

The relay features SCR output to handle three-phase heavy loads efficiently. Its integrated transient overvoltage protection with 1200V rating shields connected equipment against electrical surges, enhancing reliability and equipment lifespan. Compact dimensions of 103.8mm (L) x 30mm (W) x 30mm (H) allow integration into tight spaces without compromising performance.

Designed for harsh environments, it supports an operating temperature range from -40°C to 80°C, making it suitable for industrial automation, motor speed control, lighting control, and circuit switching in manufacturing, HVAC, and other commercial applications. The screw terminal and saddle clamp mounting ensure secure connections to minimize accidental disconnections during operation.

Zero cross switching function reduces electrical noise and inrush currents during switching, protecting load equipment. The low off-state leakage current of 10mA further optimizes energy efficiency. The product adheres to internationally recognized standards including UR, CSA, and RoHS compliance.

This relay is ideal for industrial, automation, and electrical control panel applications. Its robust construction and compact footprint support reliable long-term use in critical systems. The panel mount design facilitates easy installation and maintenance in control cabinets.

The relay’s durability is enhanced by the absence of moving parts, ensuring minimal wear and maintenance needs. Its wide voltage and temperature range extend operational versatility across multiple industrial environments.

This Crydom D53TP25D solid state relay is manufactured in Mexico and represents quality engineering by Sensata Technology. Choose this relay for your industrial automation and control projects for dependable performance and compliance assurance.
