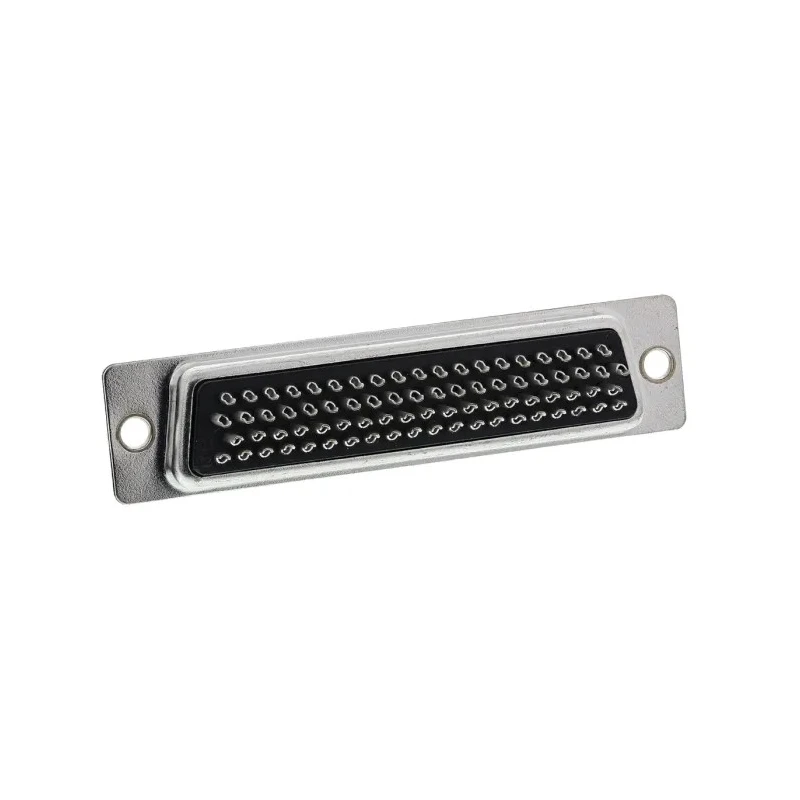

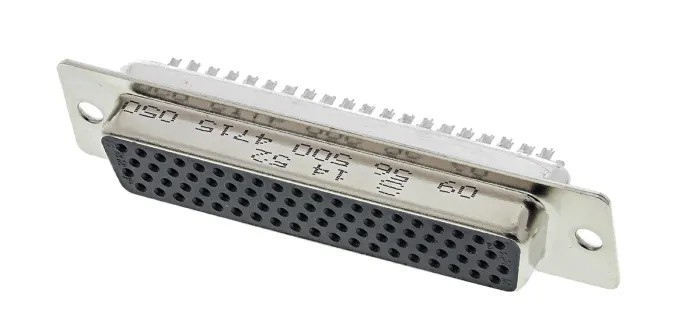

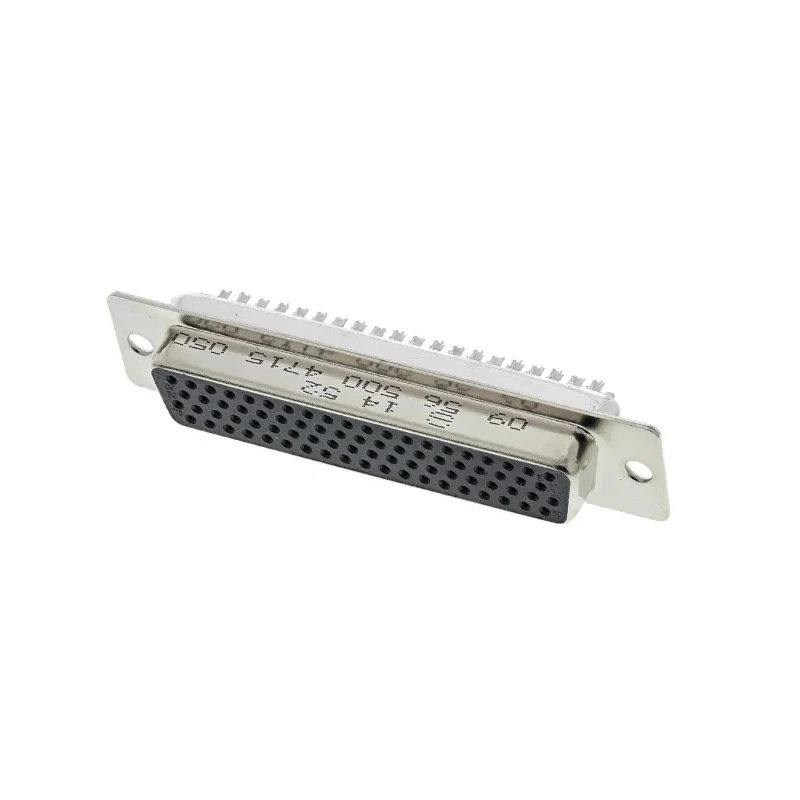

HARTING D-Sub 78 Way Straight High Density Cable D-Sub Connector 2.42 mm Pitch 1000V 2A Steel Housing 09565004715050

Free Delivery in India | Lowest Global Shipping Charges

HARTING D-Sub 78 Way Straight High Density Cable D-Sub Connector 2.42 mm Pitch 1000V 2A Steel Housing 09565004715050

Name: HARTING D-Sub 78 Way Straight High Density Cable D-Sub Connector 2.42 mm Pitch 1000V 2A Steel Housing 09565004715050
Brand: HARTING
SKU: 100627
Price: 25.18 USD
Availability: InStock



Category D-Sub Connector Brand HARTING Condition New

Specifications

Country of Origin	China
Voltage	1000V
Brand	HARTING
Orientation	Straight
Current	2A
Mount Type	Cable
Housing Material	Steel
Contact Material	Copper Alloy
Series	D-Sub
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pitch	2.42mm
Contact Plating	Gold
Number of Contacts	78
Contact Gender	Female
Connector Type D	High Density
D-Sub Shell Size	D
HARTING D-Sub 78 Way Straight 2.42 mm Pitch Cable D-Sub ConnectorBrand	HARTING

Key Features

Features high density design exceeding standard D-Sub connector contact capacity by 70%.
Constructed with steel housing for durability and copper alloy contacts with gold plating ensuring reliable conductivity.
Sockets have stamped solder cups for secure termination with solder type connection.
Designed for cable mount with female contact gender and straight orientation for easy integration.
Operates reliably from -55°C to 105°C temperature range suitable for harsh environments.
Meets standard D-Sub series design with a pitch of 2.42 mm between contacts.
Rated for 1000 volts and 2 amp current for robust electrical performance.
Country of origin is China, manufactured under HARTING brand reliability.

Product Description

HARTING 09565004715050 D-Sub 78 Way Straight High Density Cable D-Sub Connector features a high contact density of 78 contacts with 2.42 mm pitch, designed for demanding industrial and electronic applications requiring compact reliable connectivity. It is rated for a voltage of 1000V and current of 2A, providing stable electrical performance.

The connector housing is made from steel, providing robust mechanical strength and durability suitable for harsh industrial environments. Contacts are manufactured from copper alloy with gold plating of ≥ 0.76 μm (30 μinch) ensuring excellent electrical conductivity and corrosion resistance.

The connector is designed with stamped solder cups (performance level S4) for secure termination using soldering, optimized for cable mount applications. The connector features straight orientation with female contact gender that fits specific cable assembly needs and installation requirements.

Operating temperature ranges from -55°C to 105°C, making it suitable for varied climatic and industrial environments. The high density design surpasses standard subminiature D connectors by 70% contact capacity, enabling more compact wiring solutions in constrained spaces.

This product is made in China under the trusted HARTING brand, renowned for producing high-quality connectors for industrial, electronic, and manufacturing sectors. It is widely applicable in electronic components assemblies, power connectors, computing, and instrumentation settings.

High density 78 contacts with 2.42 mm pitch for compact wiring. Steel housing providing mechanical robustness. Copper alloy contacts with gold plating for superior conductivity and durability. Solder termination with stamped solder cups ensuring secure electrical connection.

Straight orientation and female contact gender suited for cable mounting. Temperature range from -55°C to 105°C suitable for harsh environments. Rated 1000V, 2A for robust electrical performance. Ideal for electronic, industrial, manufacturing, and computing applications.

Explore more electrical and electronics components including connectors at EnvMart for optimal sourcing solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a high contact density with 78 contacts, exceeding standard D-Sub connector contact capacity by 70%.

It operates reliably within a temperature range of -55°C to 105°C, making it suitable for harsh environments.

The housing is made from steel, while the contacts are composed of copper alloy with gold plating for enhanced conductivity.

It features stamped solder cups for secure solder termination, optimized for cable mount applications.

This connector is rated for a voltage of 1000V and a current of 2A, ensuring robust electrical performance.

The contact pitch is 2.42 mm, adhering to standard D-Sub series design specifications.

This model has a female contact gender and a straight orientation, designed for easy integration into cable assemblies.

The connector is manufactured in China under the HARTING brand.

It is widely applicable in electronic component assemblies, power connectors, computing, and instrumentation settings.

This connector is classified as D-Sub shell size D, which is standard for this type of connector.

The contacts are gold plated with a thickness of ≥ 0.76 μm (30 μinch), ensuring excellent electrical conductivity and corrosion resistance.

The high-density design allows for more compact wiring solutions in constrained spaces, making it ideal for demanding industrial and electronic applications.
