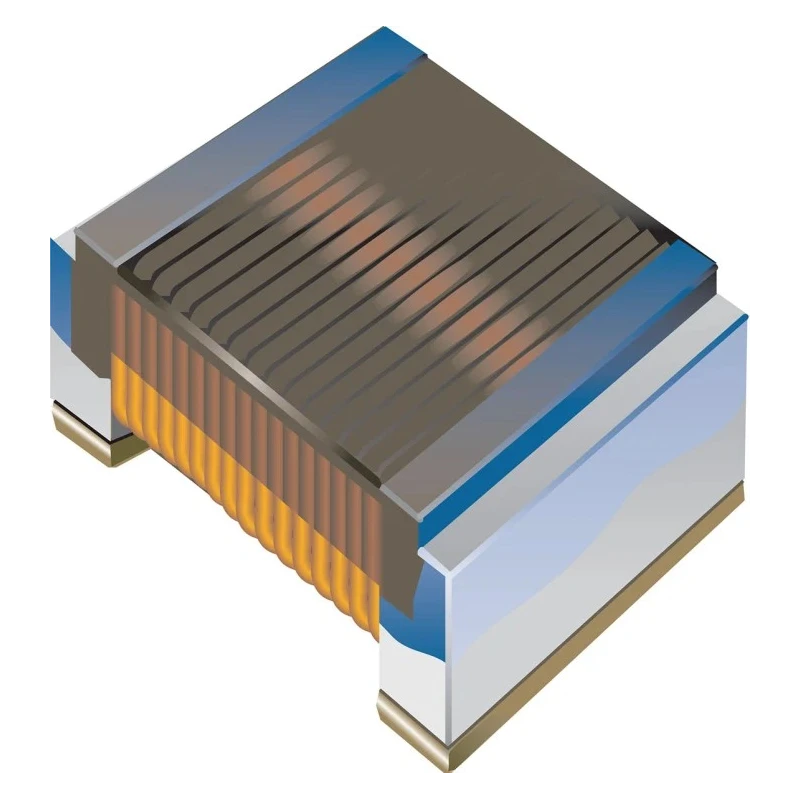

Bourns 0603 Unshielded Wirewound Surface Mount Inductor, Ceramic Core, 4.7 nH ±5% Inductance, 700 mA Max DC Current CW161009A

Bourns CW161009A 0603 unshielded wirewound surface mount inductor with ceramic core is engineered for high precision and reliability in compact electronic assemblies. This inductor provides an inductance of 4.7 nH with a tolerance of ±5%, making it suitable for sensitive RF and high-frequency applications requiring stable performance.

The device supports a maximum DC current of 700 mA and features a low maximum DC resistance of 80 milliohms to ensure efficient operation in power-sensitive circuits. Its wirewound construction on a ceramic core offers stable electrical characteristics and excellent inductance stability over a wide temperature range from -40°C up to 125°C.

Encased in a compact 0603 package measuring 1.65 mm in length, 0.9 mm in height, and 1.15 mm in depth, this inductor is designed for surface mounting on printed circuit boards (PCBs), enabling high-density layouts. It complies with RoHS regulations and is halogen-free, supporting eco-friendly product requirements.

This component meets the stringent automotive standard AEC-Q200, confirming its suitability for automotive electronics demanding high reliability and durability. It is capable of operating at high frequencies with a maximum self-resonant frequency of 5.8 GHz and maintains a quality factor of at least 20, ensuring effectiveness in RF circuits.

The unshielded design is optimized for applications where minimal interference is acceptable or manageable. Termination is made for surface mount technology (SMT), facilitating automated assembly processes in industrial and commercial electronics manufacturing.

Constructed with a ceramic core for stable electrical characteristics. Features an unshielded wirewound design for surface mount applications. Compact 0603 package size with dimensions of 1.65 mm length, 0.9 mm height, and 1.15 mm depth.

Inductance tolerance is ±5% ensuring consistency in circuit performance. Supports maximum DC resistance of 80 milliohms to minimize power loss. Minimum operating temperature of -40°C and maximum operating temperature of 125°C.

Halogen-free and compliant with RoHS standards. Meets automotive standard AEC-Q200 ensuring reliability in automotive electronics. Maximum self-resonant frequency of 5.8 GHz and minimum quality factor of 20. Termination style is surface mount for easy PCB assembly.

This Bourns surface mount inductor is widely used in industrial, automotive, telecommunications, consumer electronics, and RF circuit applications. Its high-frequency performance and packaging make it ideal for compact, high-density circuits and advanced electronic designs requiring reliable inductance with low losses.
