WAGO Jumpflex Series Signal Conditioner, Current/Voltage Input, Current Output, 24V DC Supply, IECEx/ATEX 857-423

Free Delivery in India | Lowest Global Shipping Charges

WAGO Jumpflex Series Signal Conditioner, Current/Voltage Input, Current Output, 24V DC Supply, IECEx/ATEX 857-423

Name: WAGO Jumpflex Series Signal Conditioner, Current/Voltage Input, Current Output, 24V DC Supply, IECEx/ATEX 857-423
Brand: Wago
SKU: 154680
Price: 371.1 USD
Availability: InStock



Category Signal Conditioner Brand Wago Condition New

Specifications

Country of Origin	Germany
Voltage	Input, Current Output, 24V dc Supply, IECEx/ATEX RS Stock No
Brand	WAGO
Model	857-423
IP Rating	IP20
Mount Type	DIN Rail
Isolation	2.5kV ac
Series	Jumpflex
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-25°C
Terminal type	Push-in Cage Clamp
Number Of Channels	2
Output Range	0 → 20 mA, 4 → 20 mA
Input Range	0 → 10 V, 0 → 20 mA, 0 → 5 V, 1 → 5 V, 2 → 10 V, 4 → 20 mA
Supply Voltage	24V dc
Hazardous Area Certification	IECEx/ATEX
Input Signal Type	Current/Voltage
Output Signal Type	Current
Signal Conditioner Type	Signal Splitter

Key Features

Supports input voltage and current signals with ranges including 0 to 10 V and 0 to 20 mA.
Provides isolated output current ranges from 0 to 20 mA and 4 to 20 mA.
Equipped with a DIN rail mount for quick installation.
Offers protection with IP20 rating, safe against objects larger than 12 mm.
Operates reliably in temperatures from -25°C to 70°C.
Features push-in cage clamp terminals for secure wiring.
Includes two channels for versatile signal processing.
Complies with EN 61000-6-4, EN 61000-6-2, and CE standards.

Product Description

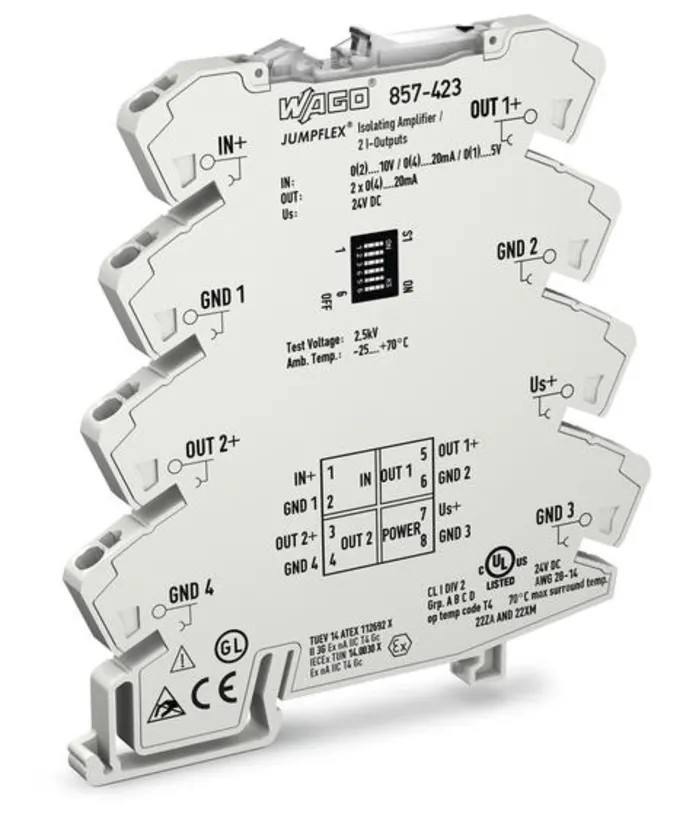

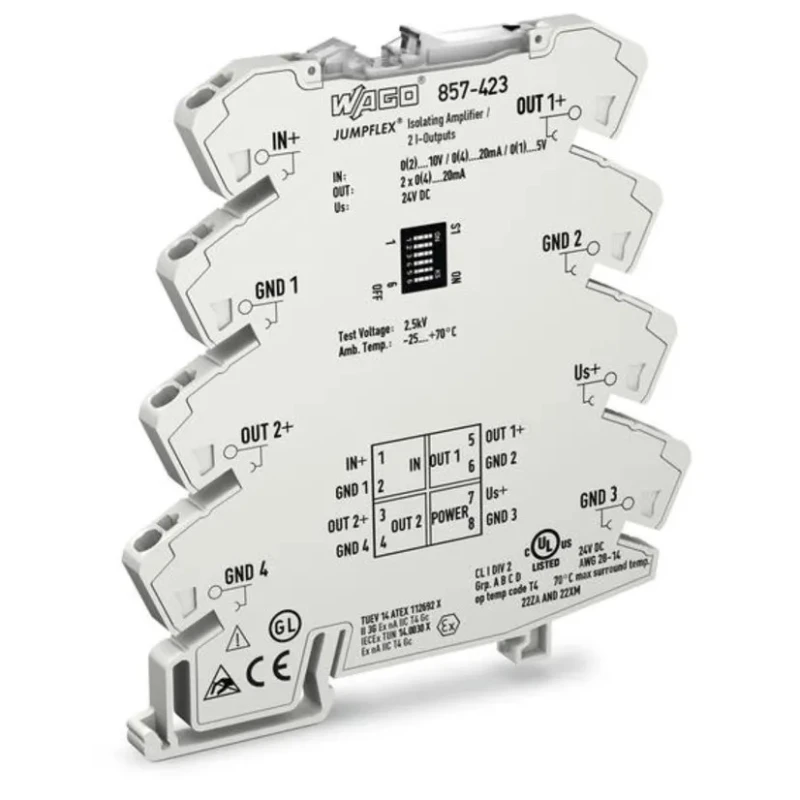

WAGO 857-423 Jumpflex Series Signal Conditioner features current and voltage input with current output, operating at 24V DC supply voltage, and is IECEx/ATEX certified for hazardous environments. This device is designed to convert, amplify, filter, and isolate analog signals efficiently for industrial and military electronics applications.

The unit supports a broad input range including 0 to 10 V, 0 to 20 mA, and variants such as 1 to 5 V and 2 to 10 V, while delivering output currents from 0 to 20 mA or 4 to 20 mA. It ensures high signal accuracy with three-way isolation at 2.5 kV AC, minimizing noise, crosstalk, and ground loop interference.

Its compact DIN rail mount form factor, measuring 6 mm in width, facilitates easy installation and maintenance. The IP20 rating provides finger-safe protection against objects larger than 12 mm, suitable for harsh industrial conditions. Operating reliably between -25°C and 70°C, the signal conditioner is built to withstand a wide temperature range.

Push-in cage clamp terminals offer robust and vibration-resistant electrical connections. With two channels available, this device is well-suited for complex automated signal conditioning tasks in energy management and industrial process control.

Supports multiple input and output signal types for flexibility. High isolation enhances measurement accuracy in noisy environments. DIN rail mounting simplifies integration in control cabinets. Protected against physical intrusion with IP20 rating.

Wide operating temperature range extends application scope. Secure push-in cage terminal wiring minimizes installation errors. Dual-channel design boosts processing capabilities. Meets rigorous EN and CE standards for electromagnetic compatibility.

Lightweight design reduces mounting strain and space requirements. Perfect for military electronics, energy systems, and industrial automation.

Choose the WAGO Jumpflex Series 857-423 signal conditioner for reliable, precise, and safe signal isolation and conditioning in demanding industrial environments. Browse more products in our Signal Conditioner category at EnvMart.
