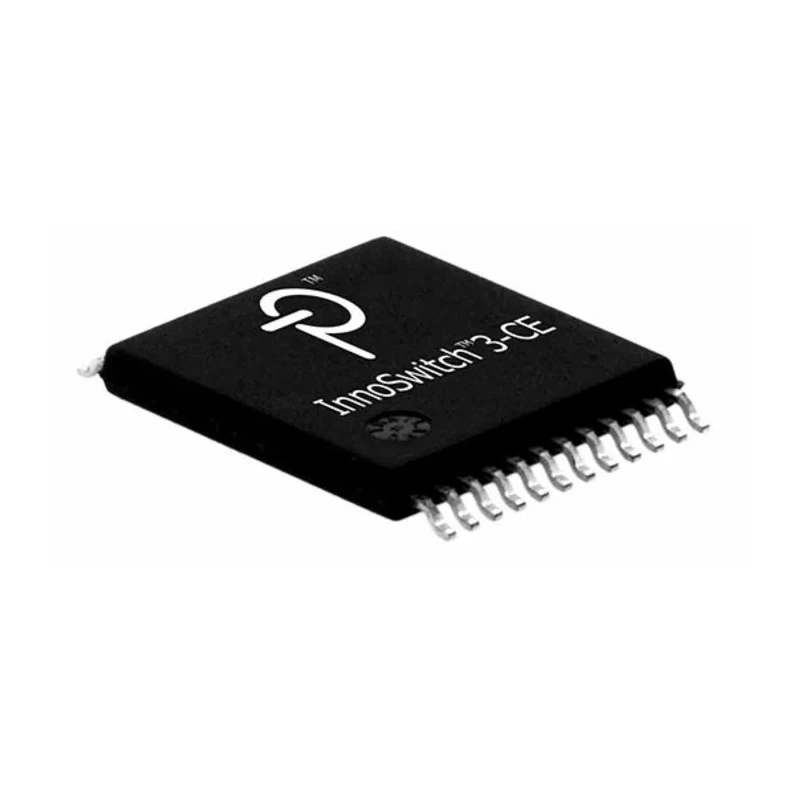

Power Integrations InnoSwitch3-CE Series Voltage Controller 16-Pin Surface Mount 85 V 265 V INN3165C-H101-TL
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Controllers Power Integrations INN3165C-H101-TL 16-Pin 85 V 265V RS Stock No |
| Brand | Power Integrations |
| Height | 1.45mm |
| Length | 9.4mm |
| Model | INN3165C-H101-TL |
| Mount Type | Surface |
| Series | InnoSwitch3-CE |
| Maximum Operating Temperature | 150°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Maximum Supply Voltage | 265V |
| Minimum Supply Voltage | 85V |
Key Features
- The InnoSwitch3-CE family features integrated primary and secondary controllers.
- Operates within a supply voltage range of 85 V to 265 V.
- Surface mount mount type with 16 pins ensures compact PCB design.
- Supports a single channel for efficient power management.
- Maximum operating temperature is 150°C for reliable performance.
- Complies with RoHS environmental standards.
- Includes multiple protection features such as over-voltage, over-current, and thermal shutdown.
- Achieves up to 94% efficiency across the full load range.
Product Description
Power Integrations INN3165C-H101-TL is a high-performance voltage controller IC from the InnoSwitch3-CE series, designed for efficient flyback power converter applications. It integrates primary and secondary controllers along with safety-rated feedback within a compact 16-pin surface mount package, offering simplified design and manufacturing of power supplies.
This controller supports a wide operating voltage range from 85 V to 265 V and operates reliably up to a maximum temperature of 150 degrees Celsius. It features advanced protection mechanisms including line over and under-voltage protection, output over-voltage and over-current limiting, and over-temperature shutdown, ensuring robust and safe operation.
With an impressive efficiency of up to 94% across the full load range, the IC is engineered for energy-efficient designs and low heat dissipation. The device provides exceptional constant voltage and constant current accuracy, independent of external components, and allows adjustable output current sensing using an external resistor.
The INN3165C-H101-TL is ideal for industrial and commercial electronics requiring compact power management solutions, such as power adapters, industrial power supplies, and consumer electronics. It conforms to RoHS standards promoting environmentally safe manufacturing.
The InnoSwitch3-CE series combines multiple integrated controllers for simplified power supply design. Robust protection features enhance device reliability and safety. High efficiency and low standby power consumption reduce energy costs.
Compact 16-pin surface mount package suits space-constrained applications. Configurable output current sensing optimizes performance per design needs.
