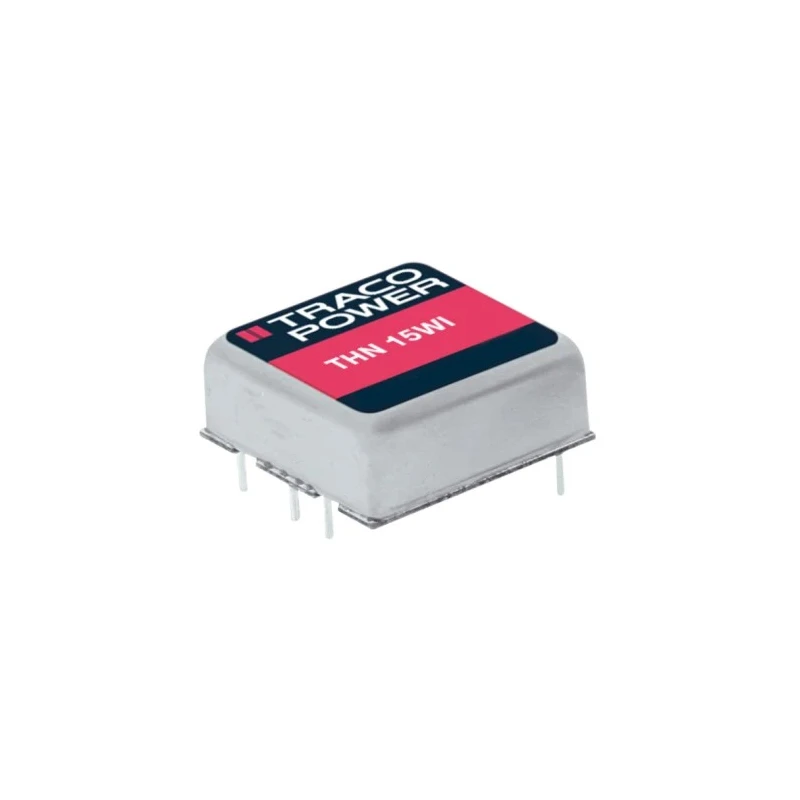

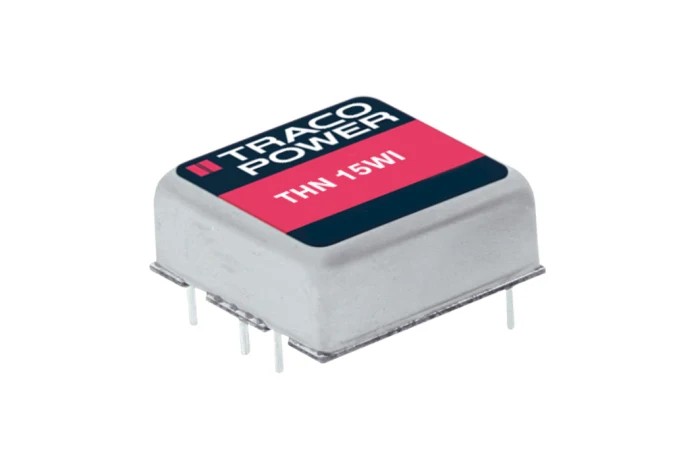

TRACOPOWER Dual Output 15W DC/DC Converter 12V DC 625mA Input 9-36V Through Hole THN 15-2422WI

The TRACOPOWER THN 15-2422WI is a robust and compact dual output DC/DC converter designed for industrial and commercial electronics applications requiring stable voltage conversion. With a power output of 15 watts, it provides ±12V output voltage with a current capacity of 625mA per output, suitable for simultaneously powering two circuits efficiently. It accepts a wide input voltage range of 9V to 36V DC, making it adaptable to various power supply scenarios.

This converter is housed in a compact encapsulated through-hole package measuring 25.4mm in length, 25.4mm in width, and 9.9mm in depth, saving valuable board space without sacrificing performance. The device operates reliably in extreme temperature conditions ranging from -40°C to +85°C, enabling its use in demanding environments such as aerospace engineering, solar power systems, networking devices, and consumer electronics.

A high efficiency rating of 87% means minimal heat generation and results in improved energy savings. The converter features continuous short-circuit protection to prevent sustained fault damage and includes a Remote On/Off control function for flexible power control. Typical output ripple and noise are kept low at 80mVp-p, ensuring signal integrity in sensitive electronics.

Isolation voltage is rated at 1.6kV DC to provide high safety margins and enhance immunity to electrical noise in complex systems. Internal filtering complies with EN 55022 standards for electromagnetic compatibility in information technology equipment, reducing possible radio-frequency disturbances.

Applications for this DC/DC Converter include consumer electronics, networking infrastructure, aerospace engineering equipment, and solar power installations. Its versatility and reliability make it an ideal choice for designers seeking efficient power conversion in compact form factors.

Equip your project with TRACOPOWER's THN 15-2422WI model for dependable dual output voltage conversion and seamless integration into modern electronic systems. Explore more power conversion solutions in the Electronics & Electricals category at EnvMart.

Dual output with ±12V dc voltage for simultaneous circuit operation. High efficiency of 87% ensures minimal heat dissipation during use. Wide input voltage range of 9 to 36V dc supports versatile applications. Operation in temperature range from -40°C to +85°C for demanding environments.

Continuous short-circuit protection safeguards converter against overload damage. Compact encapsulated package minimizes board space usage (25.4mm x 25.4mm x 9.9mm). Remote On/Off control enables convenient configuration and power management.

Typical output ripple and noise kept low at 80mVp-p to reduce signal interference. Isolation voltage rating of 1.6kV dc enhances safety and noise immunity. Compliant with EN 55022 standards for low electromagnetic interference in ITE systems.
