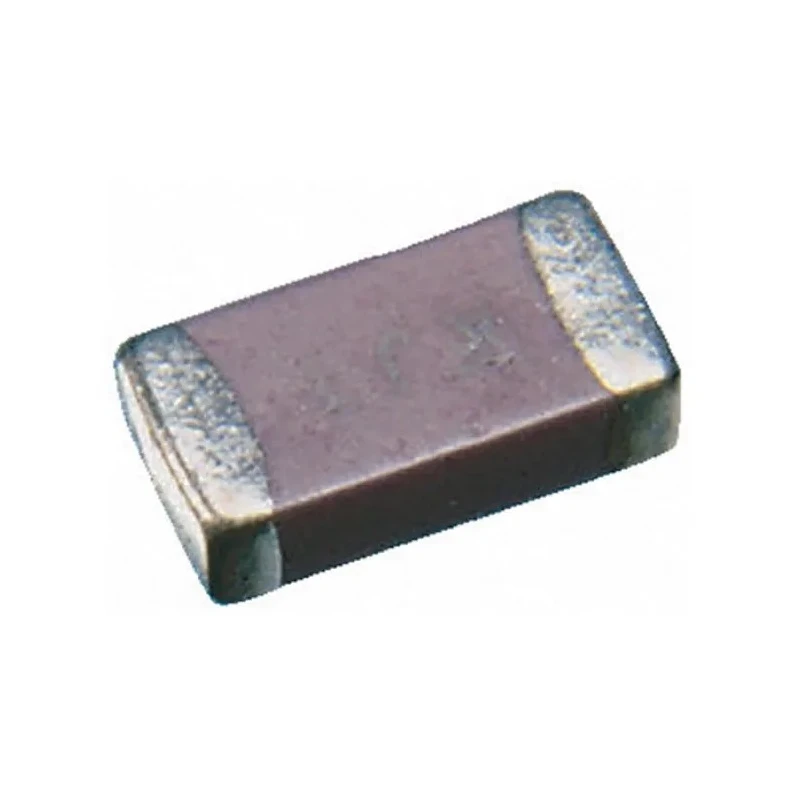

Vishay 680 pF Multilayer Ceramic Capacitor 100V DC C0G Surface Mount ±5% Tolerance VJ0805A681JXBAC
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 100V dc |
| Brand | Vishay |
| Height | 1.45mm |
| Length | 2mm |
| Model | VJ0805A681JXBAC |
| Packaging | 7 in Reel/Paper Tape |
| Width | 1.25mm |
| Mount Type | Surface |
| Series | VJ |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 150°C |
| Tolerance | ±5 % |
| Capacitance | 680pF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, JEDEC JS709A, IEC 61249-2-21 |
| Package/Case | 0805 |
| Dielectric | C0G |
Key Features
- Surface mount package type 0805 ensures compact PCB layout.
- C0G dielectric provides ultra-stable capacitance across temperatures.
- Suitable for surge suppression, filtering, and decoupling applications.
- Operating temperature range from -55°C to 150°C.
- Compliance with RoHS, JEDEC JS709A, and IEC 61249-2-21 standards.
- Nickel barrier terminations with tin plating for reliable soldering.
- Commonly used in sensor, scanner, timing, and tuning circuit applications.
- Packaging in 7-inch reel with paper tape for automated manufacturing insertion.
Product Description
Vishay VJ0805A681JXBAC is a high-quality Multilayer Ceramic Capacitor with a capacitance of 680 pF, rated at 100V DC and a tight ±5% tolerance. This surface mount device uses the C0G (NPO) dielectric, providing ultra-stable electrical performance and a low temperature coefficient ideal for precision circuits.
The 0805 case size (2.0 mm length x 1.25 mm width x 1.45 mm height) enables compact PCB design while maintaining reliable performance at high temperatures up to 150°C. Nickel barrier terminations plated with tin ensure excellent soldering and mechanical strength.
This capacitor series is suited for industrial, automotive, and consumer electronics applications such as surge suppression, filtering noise, decoupling, sensor and scanner circuits, timing, and tuning circuits.
With compliance to RoHS, JEDEC JS709A, and IEC 61249-2-21 standards, it meets stringent environmental and performance requirements. The product is delivered in a 7-inch reel on paper tape, optimized for high-volume automated assembly processes.
Surface mount 0805 package for optimized board space. Ultra-stable C0G dielectric material ensures minimal capacitance change with temperature. High maximum operating temperature of 150°C suitable for demanding environments.
Ideal for precision applications in industrial, laboratory, automotive, and consumer electronics. Packaging suitable for automated component placement machinery. Explore the range of Vishay capacitors on EnvMart for reliable and high-performance electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 680 pF.
It is rated for a maximum voltage of 100V DC.
The operating temperature range is from -55°C to 150°C.
This capacitor uses a C0G (NPO) dielectric, which provides ultra-stable capacitance across temperatures.
The dimensions of this model are 2.0 mm in length, 1.25 mm in width, and 1.45 mm in height.
It complies with RoHS, JEDEC JS709A, and IEC 61249-2-21 standards.
It features nickel barrier terminations with tin plating for reliable soldering.
It is packaged in a 7-inch reel with paper tape, suitable for automated manufacturing insertion.
It is commonly used in surge suppression, filtering, decoupling, sensor, scanner, timing, and tuning circuit applications.
The tolerance of this model is ±5%.
The country of origin for this capacitor is India.
This capacitor is a surface mount type, specifically designed for compact PCB layouts.
