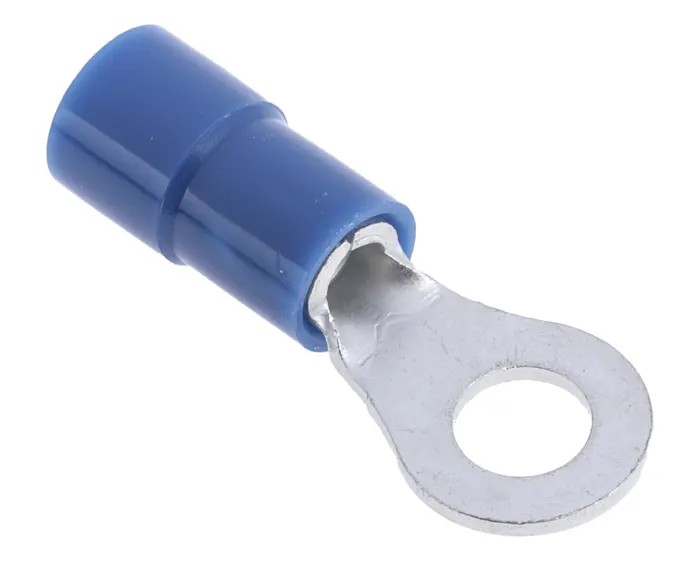

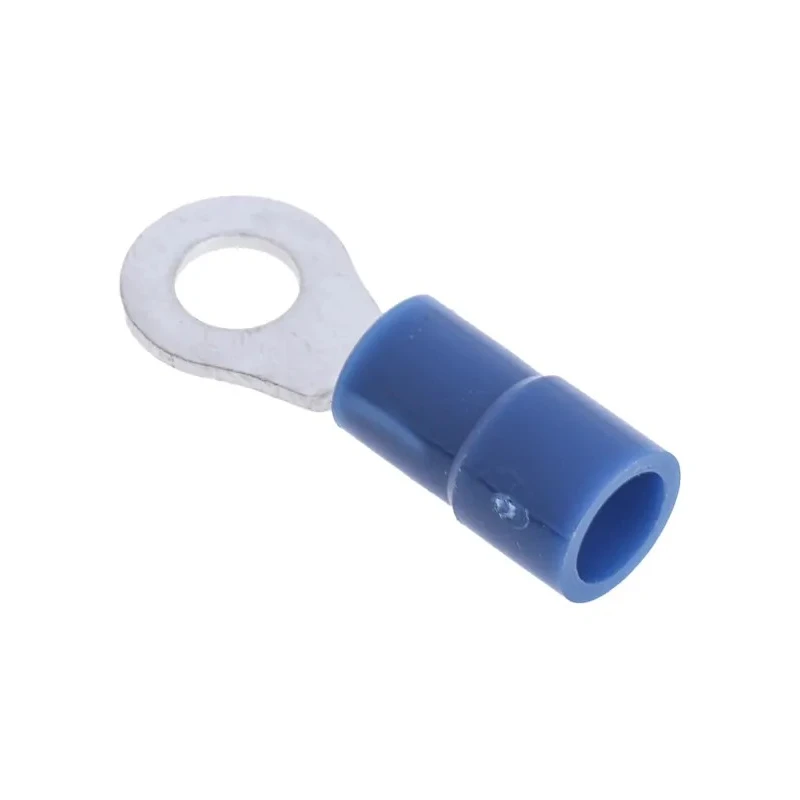

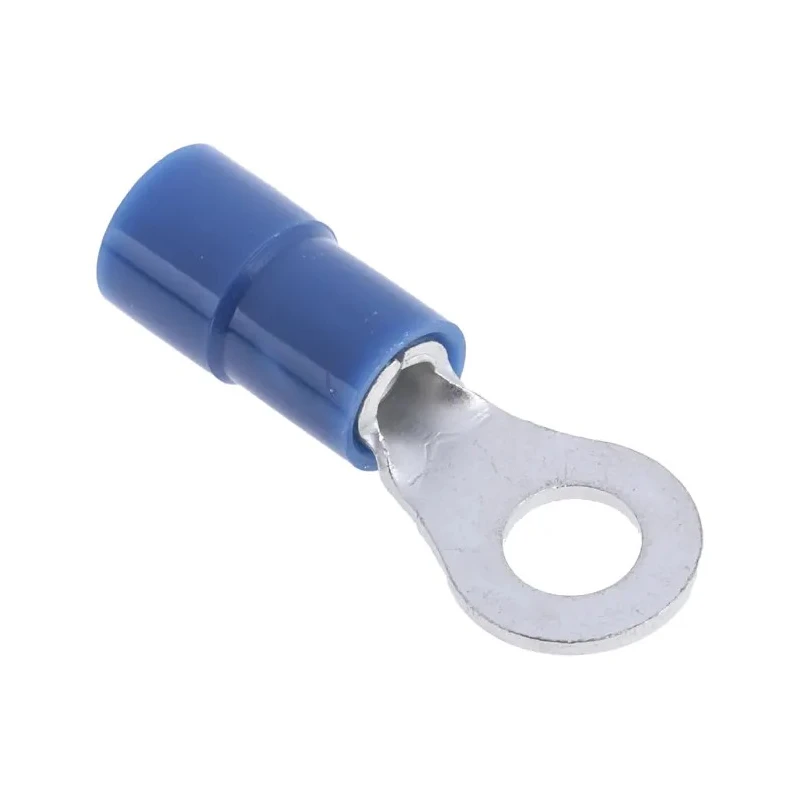

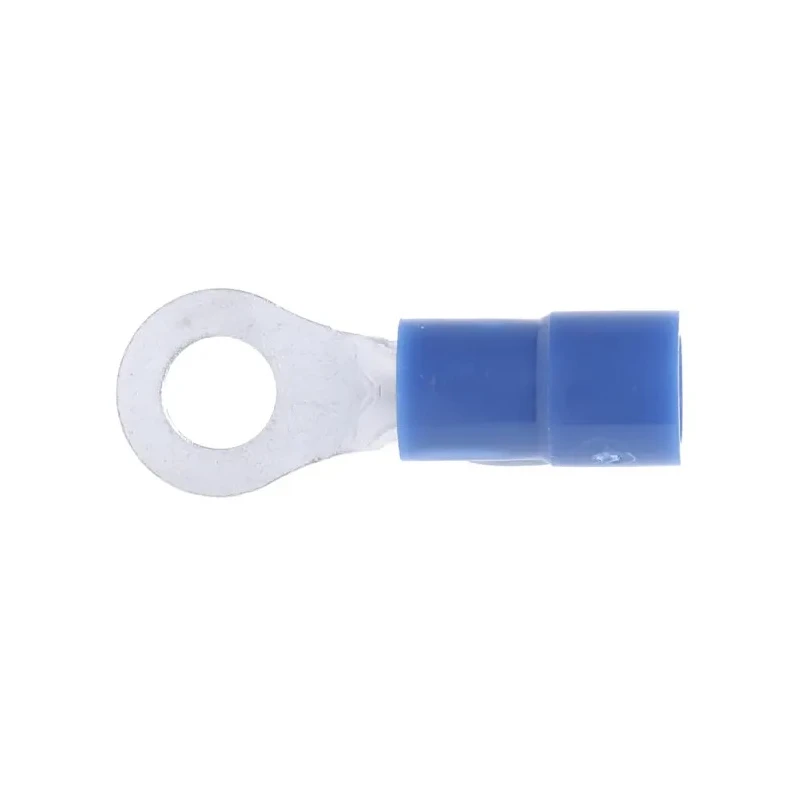

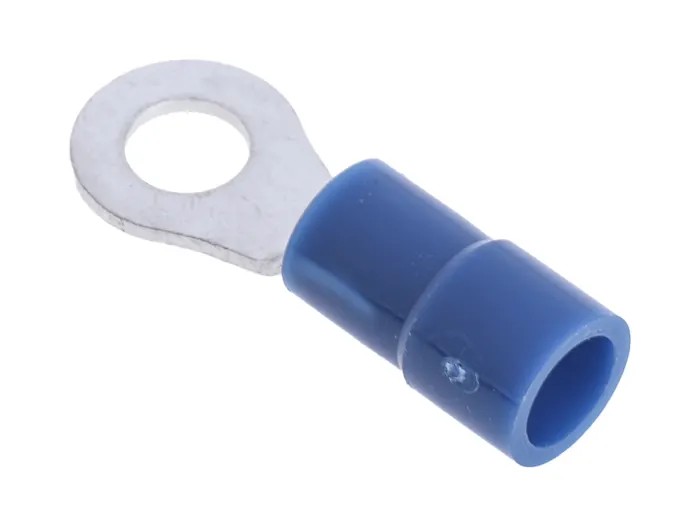

RS PRO Vinyl Insulated Ring Terminal M4 Stud Size, Suitable for 16 AWG to 14 AWG Wire Size, Blue, Copper Contact 613-9508
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Blue |
| THICKNESS | 0.8mm |
| Model | 613-9508 |
| Insulation | Insulated |
| Overall Length | 22.8mm |
| Contact Material | Copper |
| Series | E245391 |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Vinyl |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1.5mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Per Unit, RS stock no | 613-9508 |
| RS stock no | 270-7645 |
| Outer Ring Diameter | 8.5mm |
| Inner Ring Diameter | 4.3mm |
| Stud Size | M4 |
| Blue M4 ring terminal,1.5-2.5sq.mm wireBrand | NEUTRAL |
| RS PRO Insulated Crimp Ring Terminal, M4 Stud Size, BlueBrand | RS PRO |
Key Features
- This insulated ring terminal features a copper contact body with tin plating for excellent conductivity and corrosion resistance.
- The blue vinyl insulation offers electrical protection and color-coded identification of terminal size.
- The ring terminal's outer ring diameter is 8.5 mm with an inner ring diameter of 4.3 mm and thickness of 0.8 mm.
- The terminal supports wire sizes from 1.5 mm² (16 AWG) to 2.5 mm² (14 AWG) and operates within -40°C to 105°C temperature range.
- The overall length of the ring terminal is 22.8 mm, designed for ease of crimping and reliable connection.
- Typical applications include industrial control systems, automotive wiring, communication equipment, power supplies, and domestic appliances.
Product Description
RS PRO E245391 is a high-quality vinyl insulated ring terminal designed for efficient wire-to-stud electrical connections. It supports wire sizes from 16 AWG to 14 AWG and is compatible with M4 stud connections, making it suitable for a wide range of electrical and electronic component applications.
This ring terminal features a copper contact that is tin plated to ensure superior electrical conductivity and resistance against corrosion. The blue vinyl insulation protects the connection and facilitates easy identification of terminal size, complying with standard color codes used in wiring.
The terminal's precise dimensions, including an 8.5 mm outer ring diameter, 4.3 mm inner ring diameter, 0.8 mm thickness, and 22.8 mm overall length, permit quick and secure crimping. Its operational temperature range from -40°C to 105°C allows for use in demanding industrial and automotive environments.
It is widely employed in industries such as manufacturing, automotive, communications, and HVAC systems, ensuring robust and long-lasting electrical connections. The Ring Terminal is designed to be crimped with suitable tools (for example RS stock number 125-1964) to guarantee a secure attachment to wires.
Package sizes are available as single units or in larger bulk quantities for industrial use. The product is manufactured in Taiwan and delivered new in condition. Copper body with tin plating for superior conductivity and corrosion resistance.
Blue vinyl insulation for electrical protection and easy size identification. Designed for crimping with 16 AWG to 14 AWG wires and M4 stud size. Operational temperature range: -40°C to 105°C for industrial and automotive applications.
Dimensions: 8.5 mm outer ring diameter, 4.3 mm inner ring diameter, 0.8 mm thickness, 22.8 mm overall length. Suitable for use in industrial control systems, automotive wiring, communication equipment, power supplies, and domestic appliances.
Explore more electronics components and connectors at EnvMart to find complete solutions for your wiring requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This ring terminal supports wire sizes from 16 AWG (1.5 mm²) to 14 AWG (2.5 mm²).
The outer ring diameter is 8.5 mm, the inner ring diameter is 4.3 mm, and the thickness is 0.8 mm. The overall length of the terminal is 22.8 mm.
It operates within a temperature range of -40°C to 105°C, making it suitable for various environments.
The contact material of this terminal is copper, which is tin plated for enhanced conductivity and corrosion resistance.
This terminal features blue vinyl insulation, which provides electrical protection and helps with size identification.
This ring terminal is designed for M4 stud connections.
It is commonly used in industrial control systems, automotive wiring, communication equipment, power supplies, and domestic appliances.
The thickness of the ring terminal is 0.8 mm.
It is designed to facilitate ease of crimping, ensuring a reliable connection to the wires.
The ring terminal is manufactured in Taiwan.
The contact of this terminal is plated with tin to enhance its conductivity and resistance to corrosion.
The overall length of this ring terminal is 22.8 mm.
