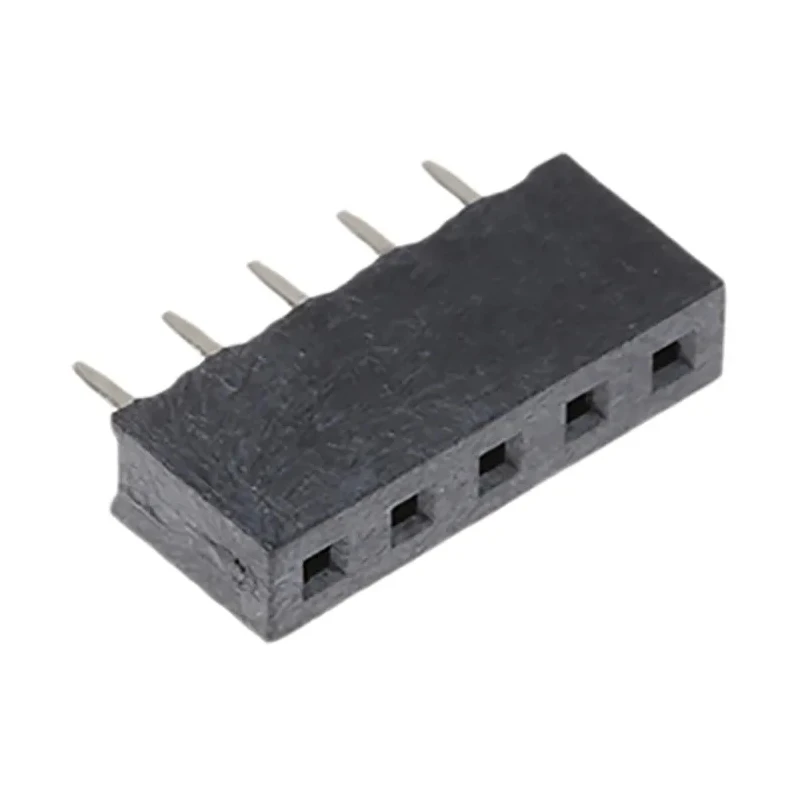

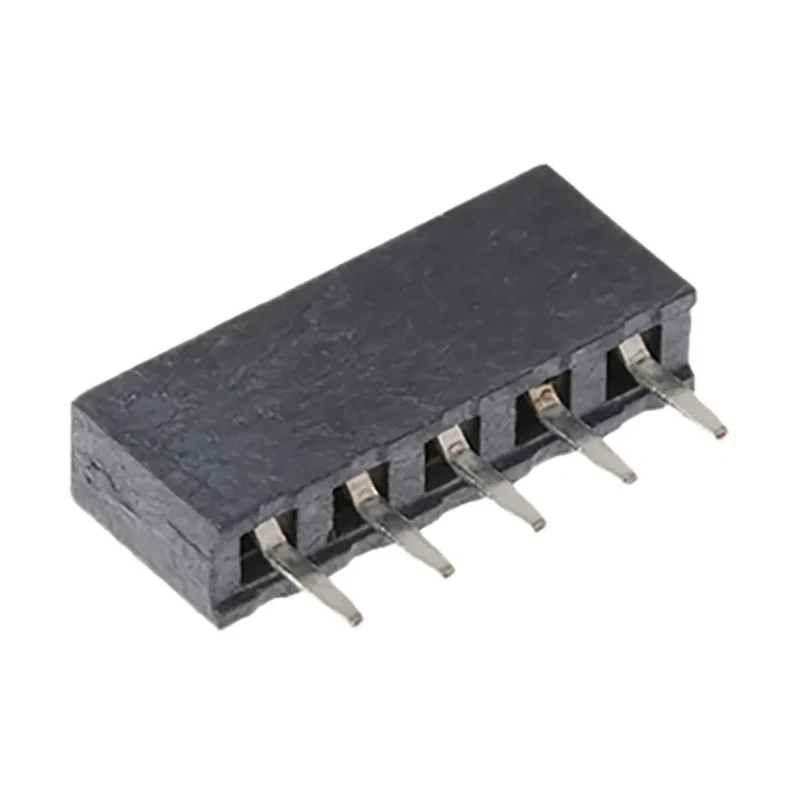

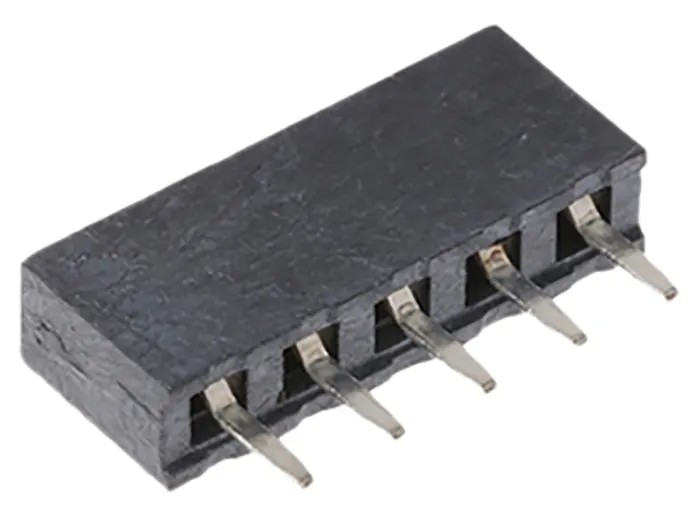

HARWIN M22 Series Straight Through Hole PCB Socket 5-Contact 1 Row 2 mm Pitch Solder M22-7130542
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 12A |
| Model | M22-7130542 |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | M22 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 5 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Compact design ensures high PCB density utilization.
- Constructed with high temperature UL94V-0 liquid crystal polymer housing.
- Gold plated bronze contacts provide reliable electrical connection.
- Rated for 12A current and 500V voltage operation.
- Suitable for applications in consumer electronics and industrial systems.
- Durable dual beam contacts allow up to 300 mating cycles.
- Through-hole mount type with straight orientation for easy installation.
- Operating temperature range from -25°C to 105°C supports harsh environments.
Product Description
HARWIN M22-7130542 is a high-quality straight through hole PCB socket from the M22 series, designed for board-to-board connector applications. This socket provides 5 female contacts arranged in a single row, with a fine 2 mm pitch ensuring compact and efficient PCB layouts.
The housing is manufactured from UL94V-0 rated liquid crystal polymer, capable of withstanding high temperature soldering processes and practical for environments requiring thermal resilience. Contact material is bronze, plated with gold to enhance conductivity and corrosion resistance for prolonged reliability.
Electrical ratings include a current capability of 12 amperes and a voltage tolerance of 500 volts, making this connector suitable for robust industrial and consumer applications. The connector’s straight orientation and through-hole mounting style simplify PCB assembly.
Designed to endure up to 300 mating operations, the dual beam contact system optimizes electrical contact consistency and lifecycle performance. The operating temperature range of -25°C to 105°C further supports its use in demanding thermal conditions commonly found in industrial, communication, and embedded PC systems.
Compact design for increased PCB density. High temperature UL94V-0 liquid crystal polymer housing. Gold plated bronze dual beam contacts for reliable connectivity. 12A current rating and 500V voltage tolerance. Single row 5-contact configuration with 2 mm pitch.
Through-hole straight mounting for secure installation. Wide operating temperature range from -25°C to 105°C. Supports up to 300 mating cycles for durability.
These features make the HARWIN M22-7130542 socket ideal for diverse electronics manufacturing sectors including consumer gadgets, industrial controls, communications equipment, and embedded computing platforms.
Browse the full range of PCB Sockets and connectors at EnvMart for compatible components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 12A, making it suitable for various applications in consumer electronics and industrial systems.
The HARWIN M22-7130542 socket is rated for a voltage tolerance of 500V, ensuring reliable performance in high-voltage applications.
The contacts in this socket are arranged with a pitch of 2 mm, allowing for compact PCB layouts.
This model features a through-hole mounting type, which simplifies installation on PCBs.
The housing is made from high-temperature UL94V-0 liquid crystal polymer, and the contacts are bronze plated with gold for enhanced conductivity.
This socket has 5 female contacts arranged in a single row, designed for board-to-board connector applications.
The operating temperature range for this model is from -25°C to 105°C, making it suitable for harsh environments.
The dual beam contacts of this socket allow for up to 300 mating cycles, optimizing its lifecycle performance.
This socket has a straight orientation, which facilitates easy installation on PCBs.
The termination type for this model is solder, ensuring a secure connection on the PCB.
The HARWIN M22-7130542 socket is suitable for applications in consumer electronics and industrial systems, including communications equipment and embedded computing platforms.
The HARWIN M22-7130542 socket is manufactured in India.
