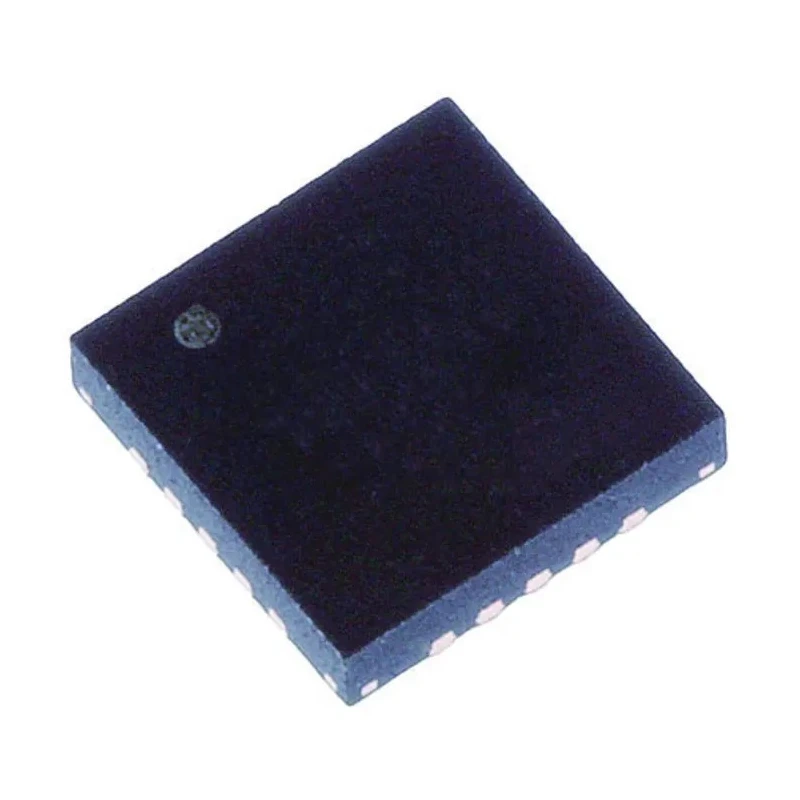

Texas Instruments 3 Outputs Buck Converter Surface Mount 6.5V Output Voltage 3A Output Current TPS75003RHLT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Efficiency | 94% |
| Length | 4.65mm |
| Model | TPS75003RHLT |
| Depth | 1mm |
| Width | 3.65mm |
| Mount Type | Surface |
| Series | TPS75003 |
| Output Current | 3A |
| Package Type | QFN |
| Load Regulation | 0.01 (LDO) %/mA, 0.6 (Buck) %/A |
| Minimum Operating Temperature | 85°C |
| Number of outputs | 3 |
| Maximum Input Voltage | 6.5V |
| Line Regulation | 0.075 (LDO) %/V, 0.1 (Buck) %/V |
| Standards/Approvals | REACH, ESDA, RoHS, ANSI, JEDEC |
| Minimum Input Voltage | 2.2V |
| Number of Pins | 20 |
| Output Voltage 1 | 6.5V |
Key Features
- High efficiency rate of 94% ensures minimal energy loss during operation.
- Designed as a Power Management IC with multiple DC-DC converters integrated into a single package.
- Compact QFN package with dimensions of 4.65 mm length, 3.65 mm width, and 1 mm depth.
- Supports three outputs and features line regulation and load regulation optimized for stability.
- Operates within a temperature range of -85°C to 85°C for reliable performance.
- Complies with industry standards including REACH, ESDA, RoHS, ANSI, and JEDEC.
- Ideal for managing power requirements of processors, Microcontrollers, FPGAs, and system-level peripherals.
- Minimum input voltage of 2.2V and maximum input voltage of 6.5V for flexible application.
Product Description
Texas Instruments TPS75003RHLT is a robust 3 Outputs Buck Converter in a compact surface mount QFN package, measuring 4.65 mm length, 3.65 mm width, and 1 mm depth. It supports a maximum output current of 3A and delivers a stable 6.5V output voltage with a high efficiency of 94%. The device features both line and load regulation optimized for LDO and buck converter applications, ensuring consistent voltage and current delivery under varying loads.
This power management IC integrates multiple DC-DC Converters, simplifying complex power designs by reducing component count while maintaining high power efficiency and performance. It is suitable for powering components such as processors, microcontrollers, FPGAs, and peripherals in industrial, laboratory, and electronic manufacturing environments.
The TPS75003RHLT operates reliably within a temperature range of -85°C to 85°C and meets stringent industry standards such as REACH, ESDA, RoHS, ANSI, and JEDEC. It features 20 pins and a surface mount design facilitating easy integration on PCBs for efficient power solutions.
High efficiency rate of 94% reduces power waste. Configurable multi-channel PMIC simplifies power sequencing and management. Compact QFN package suitable for space-constrained applications. Wide operating temperature range from -85°C to 85°C.
Compliant with major international standards ensuring reliability and safety. Supports 3 separate outputs allowing versatile power management. Low line and load regulation values enable stable output voltage and current.
This versatile DC-DC Buck Converter is widely used in electronic components assembly, power supply modules, and embedded systems requiring efficient, reliable voltage regulation. It fits well in industrial automation, telecommunications, computing hardware, and consumer electronics applications.
Explore more Texas Instruments power management solutions and switching regulators available on EnvMart for your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum output current of 3A.
It delivers a stable output voltage of 6.5V.
The efficiency rate is 94%, ensuring minimal energy loss during operation.
This unit has dimensions of 4.65 mm in length, 3.65 mm in width, and 1 mm in depth.
It operates reliably within a temperature range of -85°C to 85°C.
It supports three outputs, allowing versatile power management.
The line regulation is 0.075%/V (LDO) and 0.1%/V (Buck), while the load regulation is 0.01%/mA (LDO) and 0.6%/A (Buck).
The minimum input voltage is 2.2V and the maximum input voltage is 6.5V.
It comes in a compact QFN package.
It complies with REACH, ESDA, RoHS, ANSI, and JEDEC standards.
This model features 20 pins, facilitating easy integration on PCBs.
It is suitable for powering processors, microcontrollers, FPGAs, and system-level peripherals in various environments.
