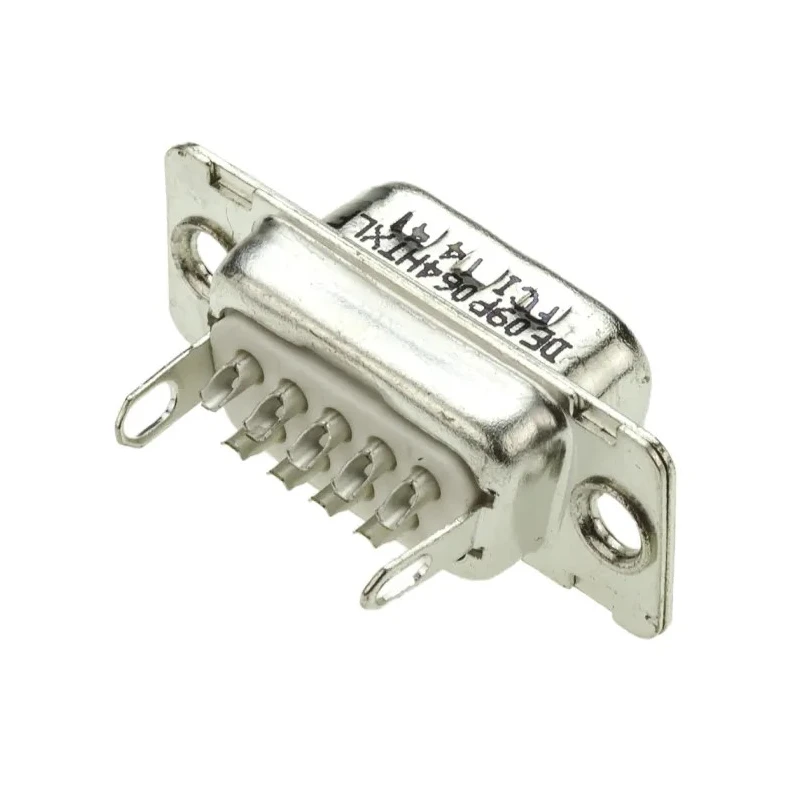

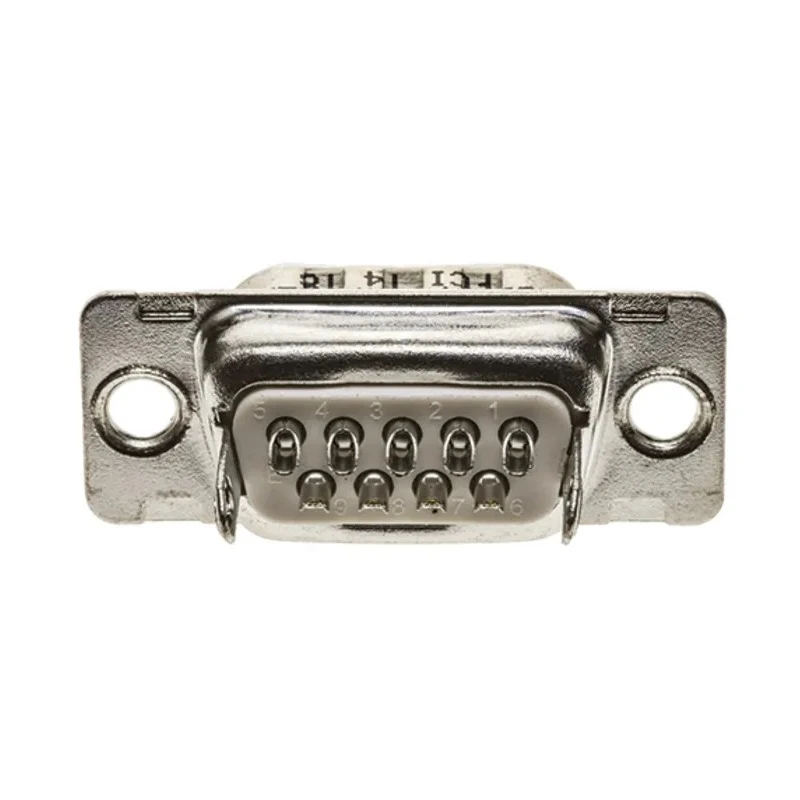

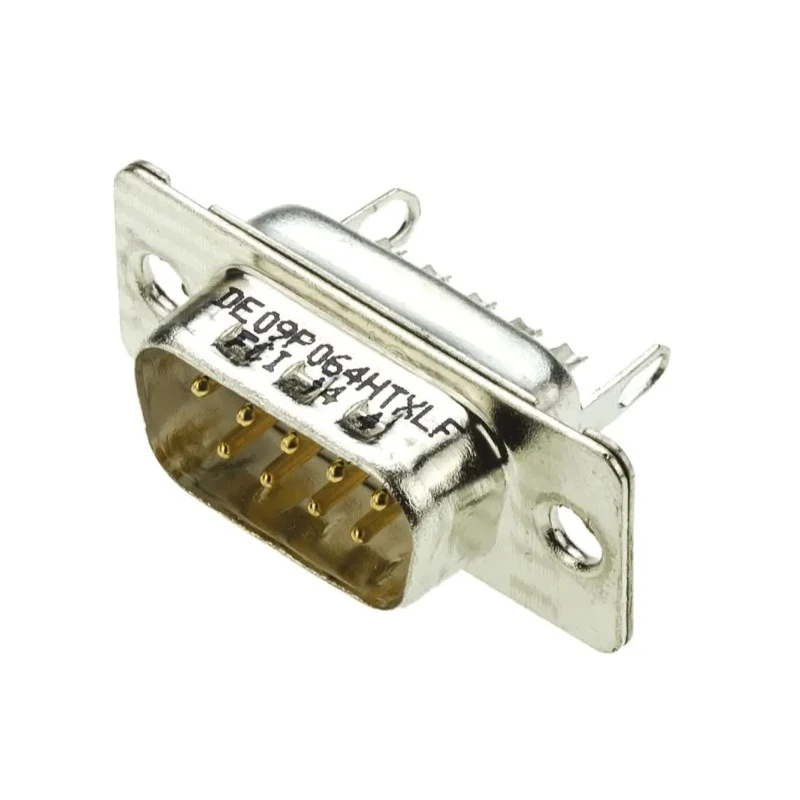

Amphenol Communications Solutions 9 Way Straight 2.74 mm Pitch Panel Mount D-Sub Connector Male DE09P064HTXLF

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Communications Solutions 9 Way Straight 2.74 mm Pitch Panel Mount D-Sub Connector Male DE09P064HTXLF

Name: Amphenol Communications Solutions 9 Way Straight 2.74 mm Pitch Panel Mount D-Sub Connector Male DE09P064HTXLF
Brand: Amphenol Communications Solutions
SKU: 99552
Price: 1.17 USD
Availability: InStock



Category D-Sub Connector Brand Amphenol Communications Solutions Condition New

Specifications

Country of Origin	India
Voltage	1.0kV
Brand	Amphenol Communications Solutions
Orientation	Straight
Current	5A
Model	DE09P064HTXLF
Mount Type	Panel Mount
Housing Material	Steel
Contact Material	Copper Alloy
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Pitch	2.74mm
Contact Plating	Gold over Nickel
Number of Contacts	9
Contact Gender	Male
Connector Gender	Male
Connector Type D	D-Sub
D-Sub Shell Size	E
RS PRO Panel Mount, 9 Pin Solder D-sub Connector PlugBrand	RS PRO
9W D PLG SHIELD TERMBrand	RS PRO

Key Features

Designed with a 2.74 mm pitch for precise alignment and secure connections.
Panel mount type ensures sturdy equipment integration in various electronic applications.
Constructed with steel housing and gold over nickel plated copper alloy contacts for durability and excellent conductivity.
Operates safely within a voltage rating of 1.0 kV and current of 5A, suitable for industrial and commercial use.
Supports operating temperatures from -55°C to 125°C ensuring performance under harsh conditions.
Solder termination provides strong mechanical stability with solder bucket contacts.
Male connector gender with an E size shell specifically designed for D-Sub compatibility.
Ground termination style includes solder lugs on the shell for effective cable to equipment grounding.

Product Description

Amphenol Communications Solutions DE09P064HTXLF is a 9 Way Straight 2.74 mm Pitch Panel Mount D-Sub Connector Male engineered for robust connectivity in demanding environments. This connector is manufactured with a steel housing ensuring mechanical strength and durability. Its copper alloy contacts plated with gold over nickel enhance conductivity and prevent corrosion, guaranteeing long-lasting performance.

The connector supports a voltage rating of 1.0 kV and a current of up to 5A, making it suitable for a range of electronic and electrical applications including military, commercial, and industrial interfacing tasks. It operates efficiently within a wide temperature range from -55°C to 125°C, making it reliable under harsh environmental conditions.

The solder termination type with solder bucket contacts allows for strong mechanical and electrical connections. The male connector gender and E size shell conform to D-Sub connector standards, ensuring compatibility and ease of integration. Ground termination is enhanced through solder lugs on the shell providing excellent cable to equipment grounding, reducing electromagnetic interference.

This panel mount connector comes with standard mounting dimensions and is designed for straightforward installation. Applications span industrial electronics, communication equipment, computer interface systems, and other devices requiring dependable D-Sub connections.

Steel housing provides mechanical strength and durability. Copper alloy contacts plated with gold over nickel for superior conductivity and corrosion resistance. Rated for 1.0 kV voltage and 5A current ensuring safe operation in various electrical setups.

Wide operating temperature range from -55°C to 125°C allows for use in extreme environments. Solder bucket contacts for reliable terminations and strong mechanical retention. Male D-Sub connector with 9 contacts and 2.74 mm pitch for precise electronic interfacing.

Grounding via solder lugs on the shell to minimize interference and enhance signal integrity. Suitable for military, industrial, and commercial application needs.

This product is made in India and represents a high-quality connector solution within the D-Sub Connector category at EnvMart. Explore more from Amphenol Communications Solutions and other reliable brands in our Electronics Components section.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a voltage rating of 1.0 kV and a current rating of 5A, making it suitable for various electrical applications.

The contacts of this connector are designed with a pitch size of 2.74 mm, allowing for precise alignment and secure connections.

It features a steel housing for mechanical strength and copper alloy contacts plated with gold over nickel for excellent conductivity and corrosion resistance.

This unit operates efficiently within a temperature range of -55°C to 125°C, making it reliable under extreme environmental conditions.

The connector uses a solder termination type with solder bucket contacts, providing strong mechanical and electrical connections.

This model has 9 contacts, which allows for multiple signal and power connections in electronic applications.

It is a male connector with an E size shell, conforming to D-Sub connector standards for compatibility.

This connector is designed for panel mount installation, ensuring sturdy integration in various electronic setups.

Ground termination is enhanced through solder lugs on the shell, which provide effective grounding to minimize electromagnetic interference.
