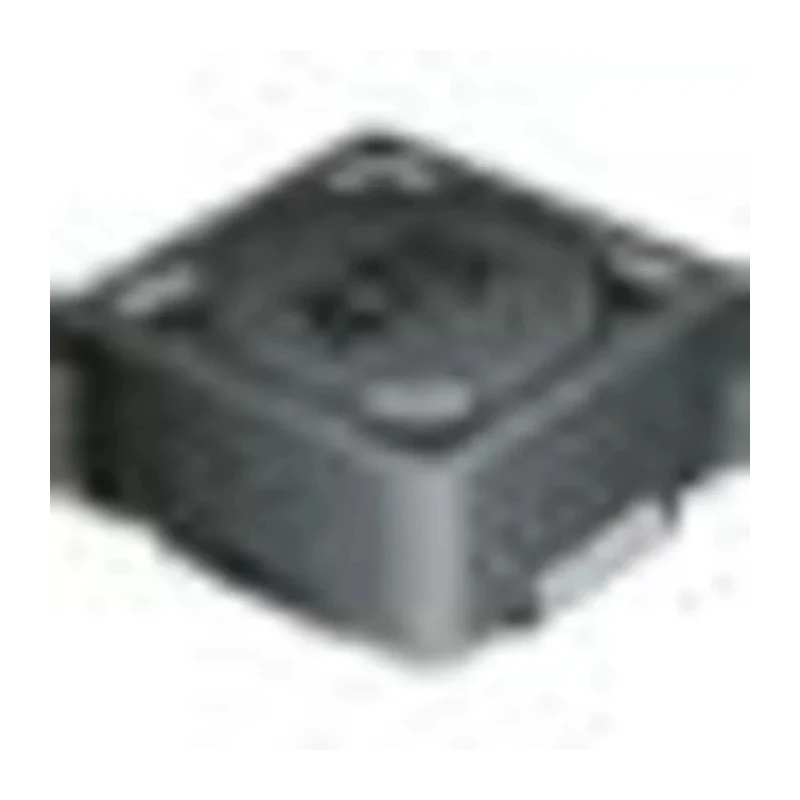

Bourns Shielded Wirewound Surface Mount Inductor, 47 μH ±20% Inductance, 2.6 A Max DC Current, Ferrite DR & RI Core SRR1260

Free Delivery in India | Lowest Global Shipping Charges

Bourns Shielded Wirewound Surface Mount Inductor, 47 μH ±20% Inductance, 2.6 A Max DC Current, Ferrite DR & RI Core SRR1260

Name: Bourns Shielded Wirewound Surface Mount Inductor, 47 μH ±20% Inductance, 2.6 A Max DC Current, Ferrite DR & RI Core SRR1260
Brand: BOURNS
SKU: 99529
Price: 1.03 USD
Availability: InStock



Category Surface Mount Inductor Brand BOURNS Condition New

Specifications

Country of Origin	India
Brand	Bourns
Height	6mm
Length	12.5mm
Model	SRR1260
Depth	12.5mm
Packaging	Tape & Reel
Series	SRR1260
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite DR & RI
Inductance	47μH
Standards/Approvals	RoHS
Package/Case	1260
Maximum DC Current	2.6A
Maximum DC Resistance	86mΩ
Inductance Tolerance	±20 %
Termination Style	Solder
Maximum Self Resonant Frequency	7.63MHz
Minimum Quality Factor	22
Inductor Construction	Shielded

Key Features

Constructed with a ferrite DR & RI core to ensure magnetic shielding.
Supports maximum operating temperature up to 125°C for robust performance.
Available in E12 standard values with ±20% inductance tolerance.
Packaged in tape and reel form for automated PCB assembly.
Features low DC resistance of 86 mΩ for efficient current flow.
Designed for surface mount technology with solder termination style.
Applicable for use in power supplies and DC/DC converter input/output filtering.
Meets RoHS standards for environmental compliance.

Product Description

Bourns SRR1260 shielded wirewound surface mount inductor features a precision ferrite DR & RI core designed to minimize electromagnetic interference, offering an inductance of 47 μH with a tolerance of ±20% and a maximum DC current rating of 2.6 amperes. The inductor’s shielded construction enhances performance in sensitive electronic applications.

It supports a wide operating temperature range from -40°C to 125°C, making it suitable for demanding environments in electronic circuits. The package is designed as a 1260 case size with dimensions of 12.5 mm length, 12.5 mm depth, and 6 mm height, terminated with soldering for reliable PCB mounting.

This component is housed in tape and reel packaging, facilitating automated pick-and-place assembly processes for manufacturing efficiency. With a maximum DC resistance of 86 milliohms and a minimum quality factor of 22, it ensures low power loss and stable performance.

The SRR1260 series is compliant with RoHS directives, ensuring its manufacturing processes limit hazardous substances. These inductors are ideal for use in power supplies, DC/DC converters, communication devices, LCD televisions, and camcorders, where efficient noise filtering and power management are essential.

Constructed with ferrite DR & RI core for magnetic shielding. Rated for a maximum DC current of 2.6 A and operating temperatures from -40°C to 125°C. Inductance value of 47 μH ±20% with low DC resistance (86 mΩ) reduces energy loss.

Standard 1260 package suitable for surface mount applications with solder termination. Complies with RoHS environmental standards. Available in tape and reel format for automated assembly. Reliable performance with minimum quality factor of 22 and maximum self-resonant frequency of 7.63 MHz.

This product is a vital component in electronics manufacturing, particularly for power supply circuits and signal conditioning in industrial, communication, consumer electronics, and automotive electronics sectors. Discover a broad portfolio of Surface Mount Inductors and electronic components on EnvMart for your design and production needs.
