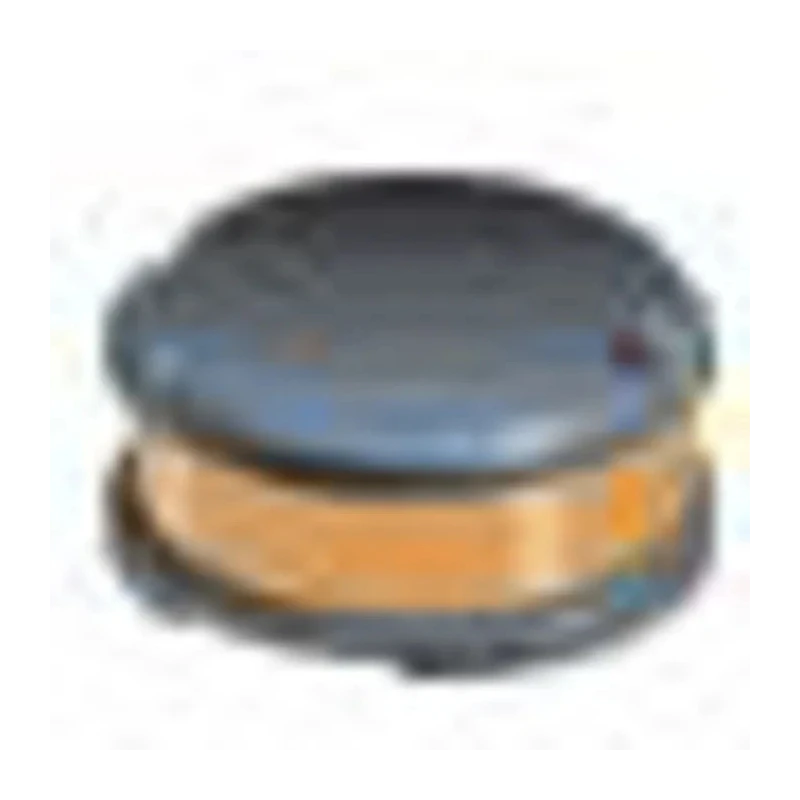

Bourns Wirewound Surface Mount Inductor 4.7μH Ferrite DR Core 1.8A 0604 Package SDR0604
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.8mm |
| Brand | Bourns |
| Height | 4.8mm |
| Length | 5.8mm |
| Model | SDR0604 |
| Depth | 5.8mm |
| Packaging | Tape & Reel |
| Series | SDR0604 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite DR |
| Inductance | 4.7μH |
| Standards/Approvals | RoHS |
| Package/Case | 0604 |
| Maximum DC Current | 1.8A |
| Maximum DC Resistance | 80mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 34MHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Ferrite Core |
Key Features
- Compact 0604 package size measuring 5.8mm in length and diameter.
- Inductance tolerance of plus or minus 20 percent for design flexibility.
- Operates reliably between -40°C and 125°C temperature range.
- Low maximum DC resistance of 80 milliohms ensures efficiency.
- Ferrite core construction with minimum quality factor of 20.
- Suitable for surface mount applications in power supplies and DC/DC converters.
- RoHS compliant and supplied in tape and reel packaging for automated assembly.
- Maximum self-resonant frequency is 34 MHz supporting high-frequency applications.
Product Description
Bourns SDR0604 wirewound surface mount inductor provides a 4.7μH inductance with a ferrite DR core designed for efficient performance in electronic circuits. This inductor supports a maximum DC current of 1.8 amperes, making it suitable for power supply circuits including DC/DC converters in portable communications, camcorders, and LCD TVs.
The compact 0604 package is 5.8mm in length and diameter with a height of 4.8mm, making it ideal for space-constrained surface mount technology (SMT) layouts. Its ferrite core and ferrite core construction deliver high magnetic permeability and excellent inductance stability over a broad temperature range of -40°C to 125°C, enabling reliable operation in various industrial and commercial applications.
The inductor features an inductance tolerance of ±20% and a low maximum DC resistance of 80 milliohms, which reduces power losses and improves efficiency. The minimum quality factor of 20 along with a maximum self-resonant frequency of 34 MHz allow the component to perform well under high-frequency electrical conditions.
Compliance with RoHS standards ensures the SDR0604 is environmentally friendly, and the component is supplied in tape and reel packaging facilitating automated PCB assembly processes.
Compact 5.8mm 0604 package size suits dense PCB layouts. Ferrite DR core construction for stable inductance. Rated maximum DC current of 1.8A for power electronics. Temperature range from -40°C up to 125°C for versatile use.
Low DC resistance values reduce power dissipation. High-frequency capable with 34 MHz self-resonant frequency. RoHS compliant, supporting environmental standards. Delivered in tape and reel format for manufacturing efficiency.
This wirewound inductor by Bourns is ideal for industrial, commercial, laboratory, and power supply manufacturing applications. It provides a reliable solution for increasing efficiency and stability in circuits requiring surface mount inductors with high-quality ferrite cores.
Browse the extensive catalog of Surface Mount Inductors at EnvMart for enhanced selection and specifications from trusted electronic component manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductor has an inductance value of 4.7μH, with an inductance tolerance of ±20%.
This model supports a maximum DC current of 1.8A, making it suitable for power supply applications.
The inductor is packaged in a 0604 size, measuring 5.8mm in length, diameter, and 4.8mm in height.
It operates reliably within a temperature range of -40°C to 125°C.
The maximum self-resonant frequency is 34 MHz, suitable for high-frequency applications.
It features a ferrite DR core, which provides high magnetic permeability and stability.
It is supplied in tape and reel packaging, facilitating automated assembly processes.
The maximum DC resistance is 80 milliohms, which helps reduce power losses.
The inductor has a minimum quality factor of 20, indicating its efficiency in high-frequency applications.
Yes, it is RoHS compliant, ensuring it meets environmental standards.
This inductor is suitable for surface mount applications in power supplies and DC/DC converters.
The termination style of this inductor is surface mount, designed for efficient PCB layouts.
