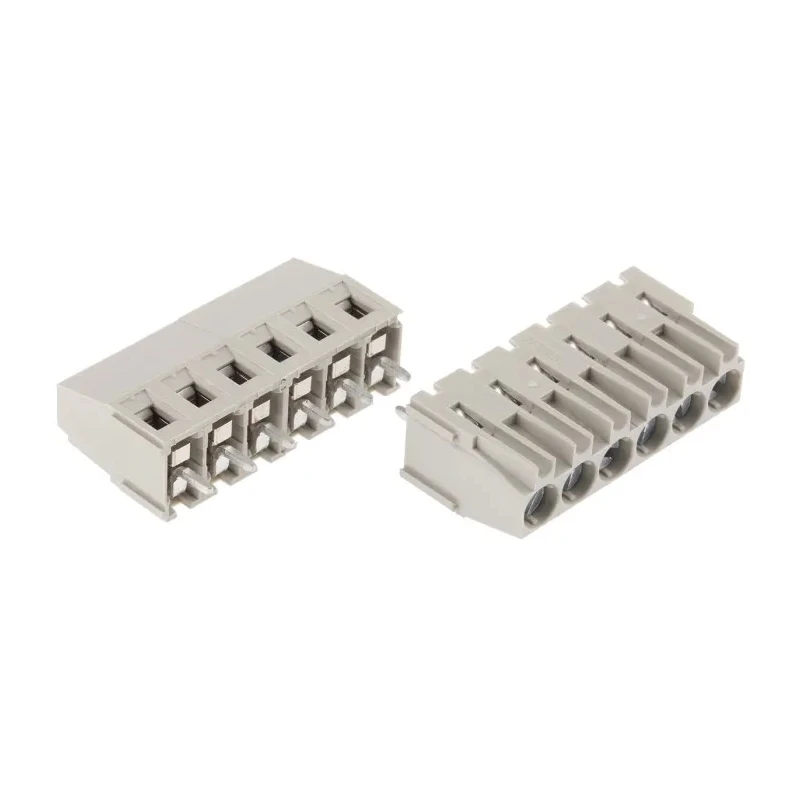

Wieland 8291 Series PCB Terminal Block, 6-Contact, 5.08 mm Pitch, Wave Soldering Mount, 1 Row 25.163.0653.0

Wieland 25.163.0653.0 PCB Terminal Block from the 8291 series is engineered for precise and secure connections on printed circuit boards, featuring 6 contacts with a pitch of 5.08 mm. Designed for wave soldering mounting and a straight orientation, this terminal block supports a current rating of 16A, catering to a variety of industrial and electronic equipment requirements.

It accommodates wire sizes ranging from 0.14 mm² to 2.5 mm² (AWG 22 to AWG 12), ensuring wide compatibility with different wiring standards. The clamping mechanism safeguards the wire conductors, maintaining stable electrical connections during operation. The terminal block is designed with accessible test points to facilitate maintenance and testing procedures.

The compact form factor, measuring 15 mm in width, 31.3 mm in length, and 9.5 mm in depth, allows effective PCB space usage without compromising performance. The device is color-coded grey and conforms to stringent safety standards including CSA and VDE certifications, marking its reliability and safety for electrical applications.

Manufactured in Germany, the 8291 series terminal blocks are recognized for their build quality and durability. Different versions of the 8291 series provide options with 2, 3, or 6 contact configurations and cross-section options of 1.5 mm² or 2.5 mm², designed for side stacking without loss of pitch.

Supports a current rating of 16A for reliable conductivity. Compatible with wire sizes ranging from 0.14mm² to 2.5mm² and AWG 22 to AWG 12. Constructed for wave soldering mount with a straight orientation. Compact dimensions with width 15 mm, length 31.3 mm, and depth 9.5 mm provide efficient PCB space utilization.

Features accessible test points and a clamping arrangement that protects wires effectively. Available in grey color, suitable for various industrial electronic applications. Manufactured in Germany ensuring high quality and standards compliance.

Built to meet CSA and VDE standards for safety and performance. Part of the 8291 series, offering versions with different contact counts and cross-sections. Suitable for industrial, electronic manufacturing, instrumentation, and power connector applications.

This PCB terminal block is ideal for applications in industrial automation, power electronics, instrumentation, and other sectors requiring compact, durable, and reliable PCB connection solutions. Browse more electronics components and PCB Terminal Blocks at EnvMart to find the perfect fit for your electronic assembly needs.
