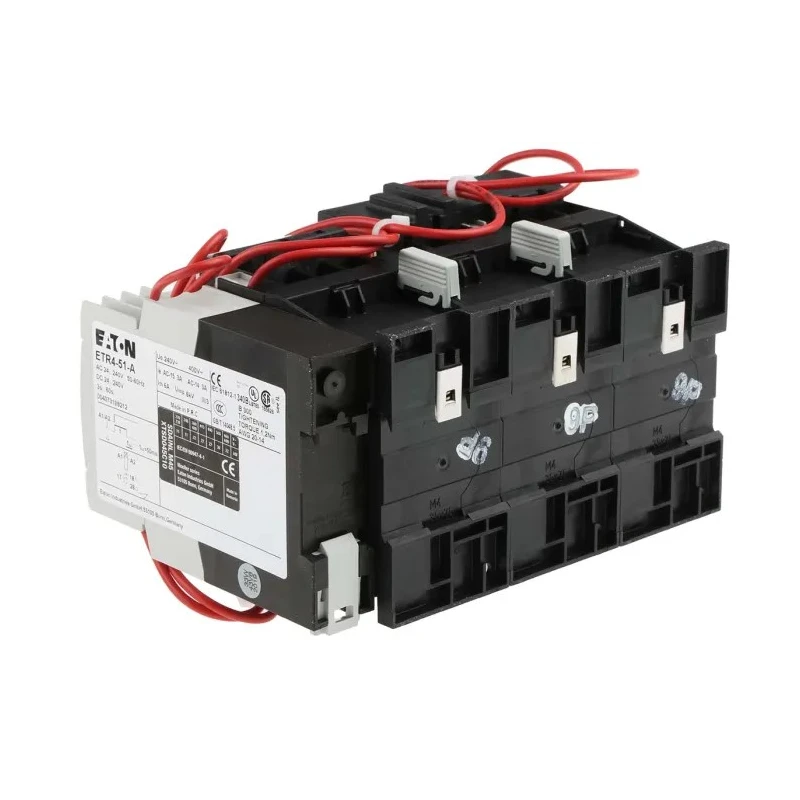

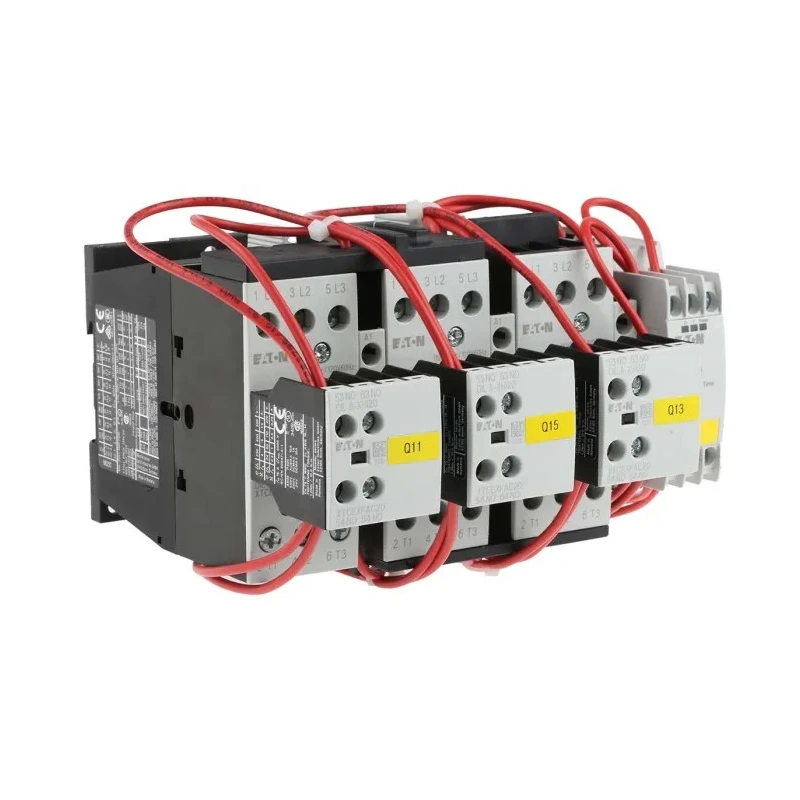

Eaton SDAINL Star Delta Starter 3 Phase 22 kW 45 A Surface Mount IP55 110V AC 278383 SDAINLM45(110V50HZ,120V60HZ)

Free Delivery in India | Lowest Global Shipping Charges

Eaton SDAINL Star Delta Starter 3 Phase 22 kW 45 A Surface Mount IP55 110V AC 278383 SDAINLM45(110V50HZ,120V60HZ)

Name: Eaton SDAINL Star Delta Starter 3 Phase 22 kW 45 A Surface Mount IP55 110V AC 278383 SDAINLM45(110V50HZ,120V60HZ)
Brand: Eaton
SKU: 99333
Price: 992.41 USD
Availability: InStock



Category Motor Starters Brand Eaton Condition New

Specifications

Country of Origin	India
Brand	Eaton
Model	278383 SDAINLM45(110V50HZ,120V60HZ)
IP Rating	IP55
Mount Type	Surface
Overall Length	85mm
Current Rating	45A
Series	SDAINL
Overall Width	158mm
Power Rating	22kW
Note	FLC figures quoted are maximum. The overload specified has been determined by applying the following formula: 0.58 x motor FLC. Allow additional clearance dimensions for the wiring bar above and below the starter
Sub Type	Star Delta
Number of Phases	3
Maximum Voltage	110V ac
Number of Poles	3
Standards/Approvals	EN/IEC
Overall Depth	147.3mm
Open Framed S/D 18.5kW 110Vac Z00 O/LoadBrand	Moeller

Key Features

Provides reduced voltage start for three-phase induction motors to minimize inrush current.
Includes main, star and delta contactors and an adjustable timer for transition delay.
Designed with IEC 947 compliant Eaton components for reliability and safety.
Surface mount type with IP55 rating ensures protection against dust and water jets.
Supports motors with efficiency class IE3 and features star-delta switching for starting period.
Compatible with Eaton ZB32 thermal overload relays for motor protection.

Product Description

Eaton 278383 SDAINLM45(110V50HZ,120V60HZ) Star Delta Starter is a robust 3 phase motor starter designed to handle motors rated at 22 kW power and 45 A current with a maximum voltage of 110V AC. It is engineered for surface mounting and features an IP55 protection rating, making it suitable for demanding industrial environments that require resistance to dust and water jets.

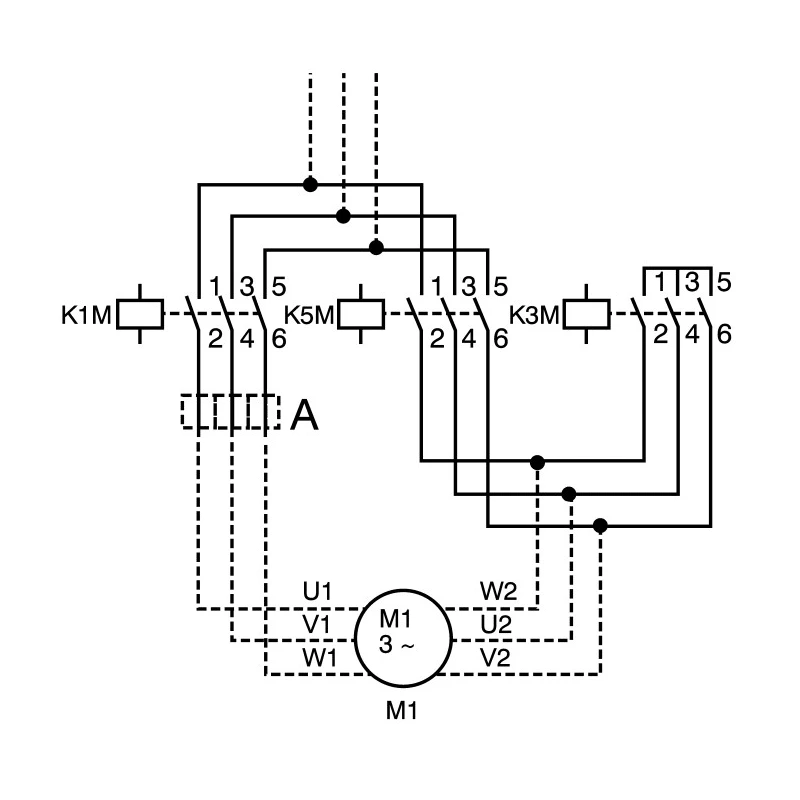

This starter utilizes the star-delta method to reduce starting current for three-phase induction motors, lowering mechanical stresses and electrical load at startup. The assembly includes main, star, and delta contactors along with an adjustable timer that allows for transition timing between star and delta connections, adjustable between 0 to 30 seconds.

Manufactured with Eaton IEC 947-standard components, the starter is pre-configured to operate with Eaton Z00 or ZB thermal overload relays, providing reliable motor protection including single-phasing sensitivity. It supports motors compliant with IE3 efficiency classification.

The starter’s compact open chassis design facilitates easy installation in customized enclosures and direct mounting onto a 35 mm DIN rail, suitable for various industrial and manufacturing applications such as automation, HVAC, and production machinery.

Reduces motor starting current to approximately one third compared to direct on-line starters. Includes separate star, delta contactors and timer for controlled motor starting sequence. Constructed to meet EN/IEC standards for quality and safety compliance.

Supports surface mounting with solid ingress protection (IP55). Ideal for use in industrial, manufacturing, and electrical automation setups. Thermal overload relay not included and must be ordered separately. Dimensions: Height 85 mm, Width 158 mm, Depth 147.3 mm.

This Eaton Star Delta Starter 278383 SDAINLM45 model offers a reliable solution for starting medium-sized motors efficiently while ensuring compliance with electrical standards and robustness for industrial applications. It is a suitable choice for industries needing durable motor control devices with advanced protective features.

Explore more products in the Motor Starters category at EnvMart for comprehensive industrial automation solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a power rating of 22 kW, making it suitable for three-phase induction motors.

The Eaton SDAINL Star Delta Starter has a current rating of 45 A.

It operates at a maximum voltage of 110V AC, compatible with both 50Hz and 60Hz frequencies.

The starter has an IP55 rating, providing protection against dust and water jets.

This unit is designed for surface mounting, facilitating installation in various environments.

The overall dimensions are 85 mm in height, 158 mm in width, and 147.3 mm in depth.

It is compatible with three-phase induction motors that are rated at 22 kW and compliant with IE3 efficiency classification.

The thermal overload relay is not included and must be ordered separately; however, it is designed to work with Eaton ZB32 thermal overload relays.

The adjustable timer allows for a transition delay between star and delta connections, which can be set between 0 to 30 seconds.

It is manufactured to meet EN/IEC standards for quality and safety compliance.

The star-delta method reduces the starting current to approximately one third compared to direct on-line starters, minimizing mechanical stress and electrical load at startup.

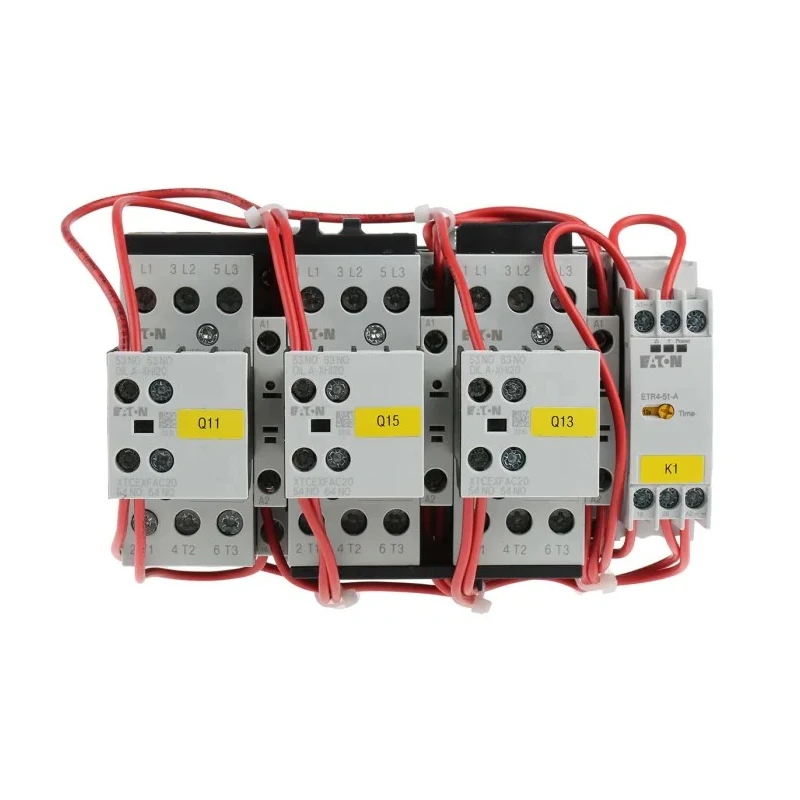

The assembly includes main, star, and delta contactors, as well as an adjustable timer for controlled motor starting sequences.
