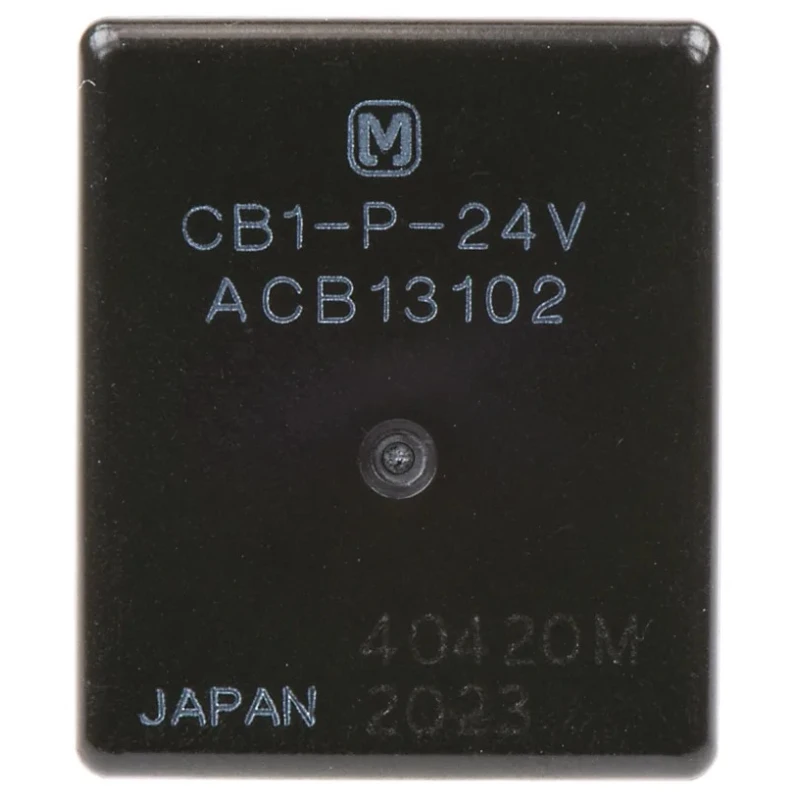

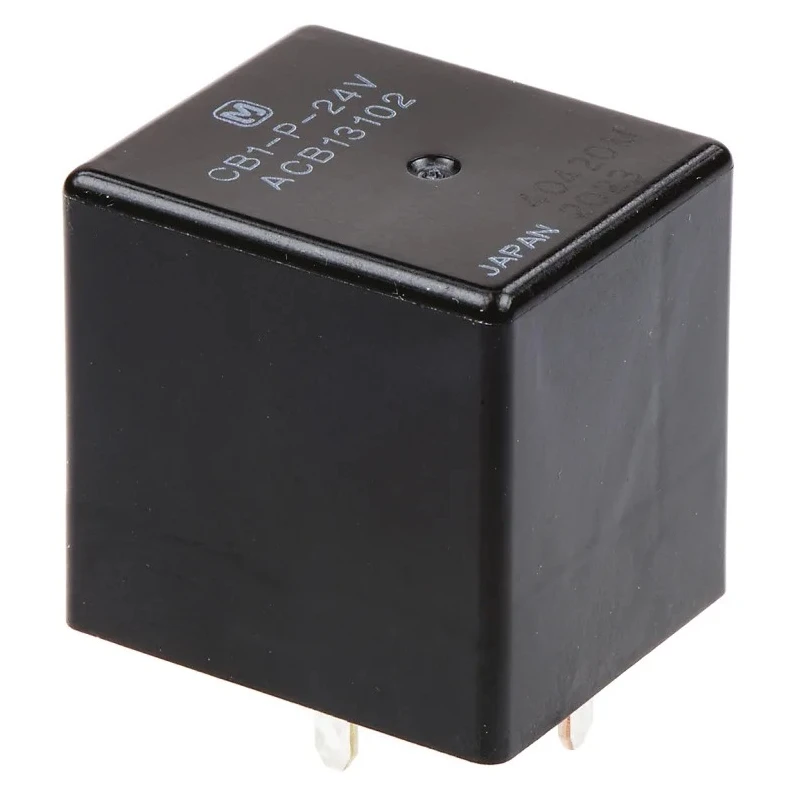

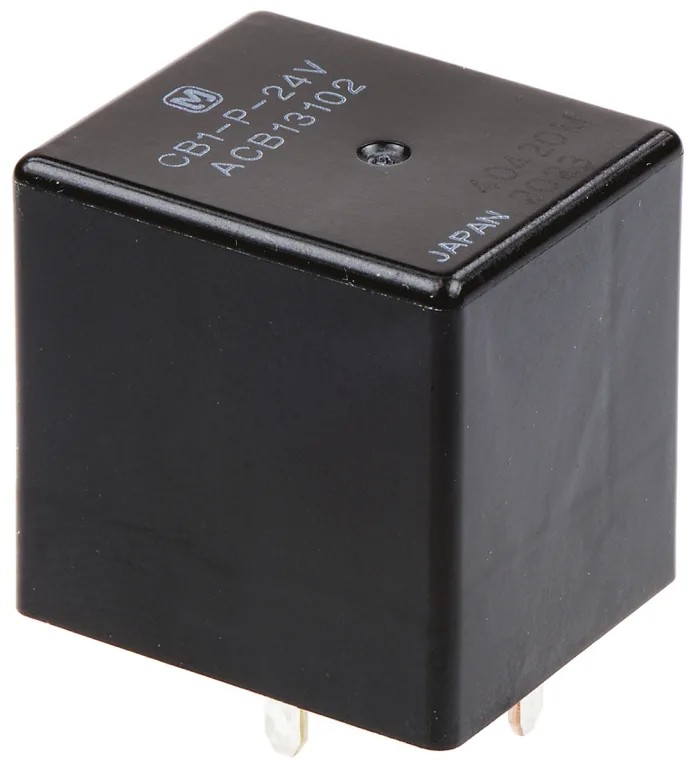

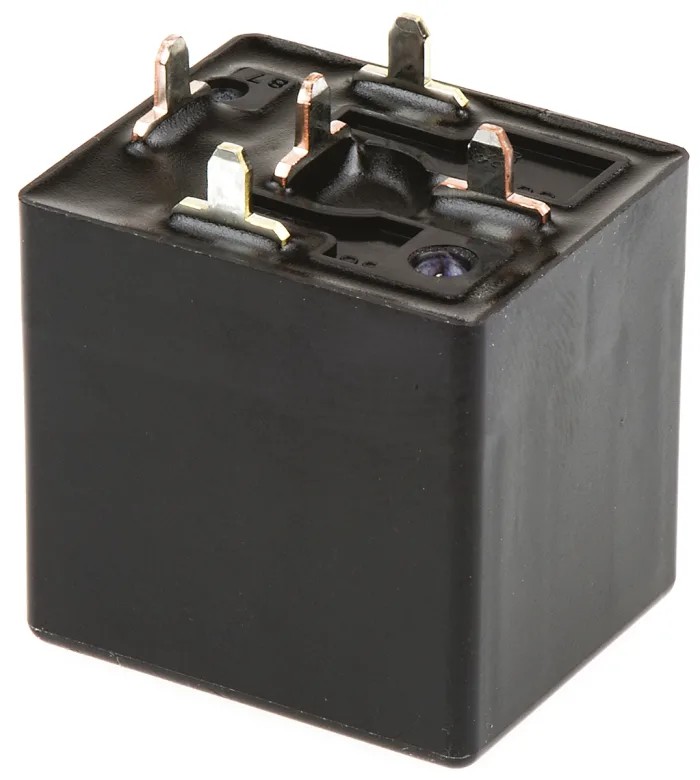

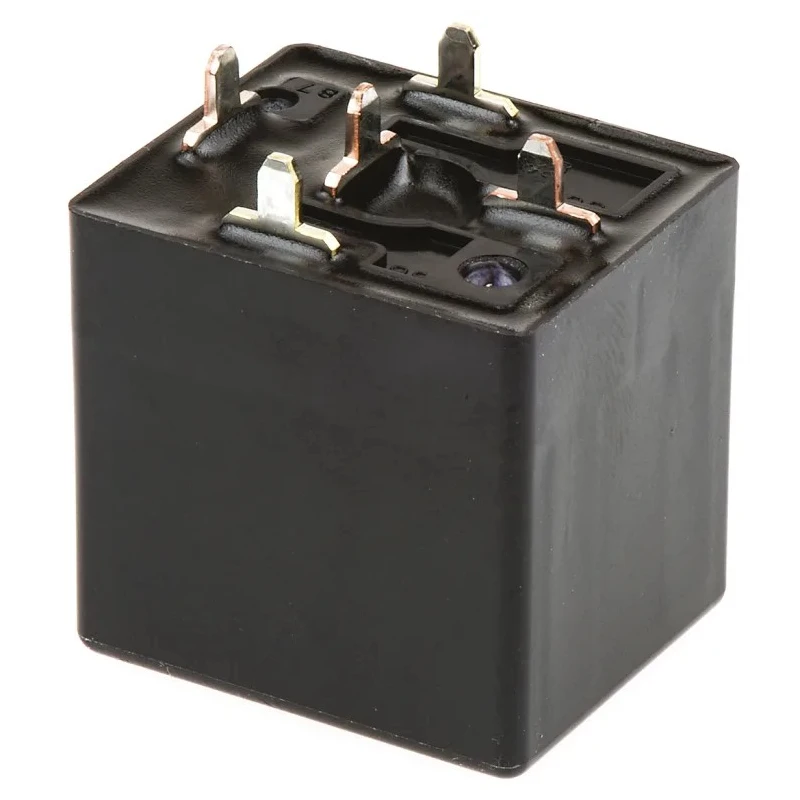

Panasonic PCB Automotive Relay 24V DC Coil 20A Switching Current SPDT CB1-P-24V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 26mm |
| Length | 26mm |
| Model | CB1-P-24V |
| Width | 22mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | CB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 20A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 320Ω |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 1.8W |
| Switching Power | 1.8W |
Key Features
- Compact PCB mount design measuring 26mm length, 22mm width, and 26mm height.
- High switching power rating of 1.8W suitable for automotive applications.
- Silver alloy contacts enhance durability and conductivity.
- Operates reliably from -40°C to 85°C operating temperature range.
- Coil resistance of 320 ohms ensuring stable coil power consumption of 1.8W.
- Complies with RoHS standards for environmental safety.
- Designed for automotive, construction, and agricultural equipment applications.
- Features a mini-ISO terminal arrangement to save space on PCB layouts.
Product Description
Panasonic CB1-P-24V Automotive Relay is a high-performance power relay designed for automotive and industrial PCB applications. Featuring a 24V DC coil voltage and a 20A switching current rating, this relay offers a robust SPDT (single pole double throw) contact configuration in a compact 26x22x26mm housing.
Its silver alloy contact material provides excellent electrical conductivity and long service life under demanding conditions. The relay operates efficiently with a coil resistance of 320 ohms and coil power consumption of 1.8W, ensuring low energy usage.
This relay supports a wide operating temperature range from -40°C to 85°C, making it reliable for automotive, construction, and agricultural equipment environments where temperature extremes are common. The mini-ISO terminal arrangement allows for optimal space saving on PCBs, facilitating easier integration into complex electronic circuits.
The CB series relays by Panasonic are known for their high thermal resistance and low temperature rise during operation, ensuring consistent performance and enhanced durability. A built-in resistor type variant of the relay is also available to reduce electrical noise and improve switching stability.
Manufactured in Japan, the product complies with RoHS standards, confirming its adherence to environmental and safety regulations. Typical use cases include power switching in automotive electrical systems, industrial machinery control circuits, and related applications requiring reliable high-current relay switching.
Compact PCB mount design measuring 26mm length, 22mm width, and 26mm height. High switching power rating of 1.8W suitable for automotive applications. Silver alloy contacts enhance durability and conductivity. Operates reliably from -40°C to 85°C operating temperature range.
Coil resistance of 320 ohms ensuring stable coil power consumption of 1.8W. Complies with RoHS standards for environmental safety. Designed for automotive, construction, and agricultural equipment applications. Features a mini-ISO terminal arrangement to save space on PCB layouts.
Built-in resistor type available for noise suppression and improved performance. Manufactured in Japan ensuring high-quality build and reliability. Explore more Panasonic automotive relays and related power relay components in the Electronics & Electricals category on EnvMart.
