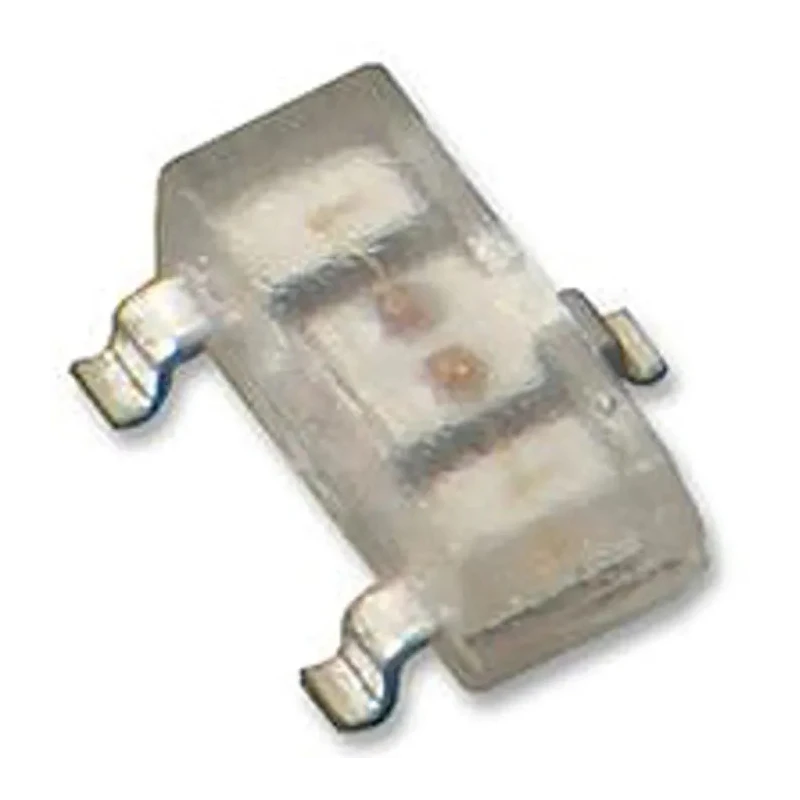

Kingbright 2.5 V Red LED SOT-23 Surface Mount KA-23 Series KM-23ID-F
Specifications
| Country of Origin | China |
|---|---|
| Brand | Kingbright |
| Dimensions | 3.0 x 1.3 mm |
| Model | KM-23ID-F |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | KA-23 |
| Maximum forward current | 160mA |
| Viewing angle | 140 ° |
| Package Type | SOT-23 |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 625nm |
| Forward Voltage | 2.5V |
| Number of Pins | 3 |
| LED Luminosity | 12 mcd |
| Maximum Power Dissipation | 75mW |
| Lens Dimensions | 3 x 1.05 mm |
| Lens Shape | Rectangular |
Key Features
- Features a standard SOT-23 package measuring 3.0 x 1.3 mm.
- Provides a maximum forward current of 160mA with low power dissipation of 75mW.
- Produces bright red light with a dominant wavelength of 625 nm and luminosity of 12 mcd.
- Wide viewing angle of 140 degrees for effective light dispersion.
- Rectangular lens shape with clear finish ensures optimal light transmission.
- Packaged in tape and reel format suitable for automated PCB assembly.
- Complies with RoHS standards ensuring environmental safety.
- Surface mount design enables compact and reliable installation.
Product Description
Kingbright KM-23ID-F is a 2.5 V Red LED designed with a SOT-23 surface mount package from the KA-23 series, ideal for electronics components and optoelectronic applications requiring low power, high reliability, and compact form.
This LED operates at a forward voltage of 2.5 V and supports a maximum forward current of 160mA, dissipating up to 75mW of power. Its dimensions of 3.0 x 1.3 mm make it suitable for dense surface mount PCB layouts.
The LED emits red light with a dominant wavelength of 625 nm and a luminous intensity of 12 millicandelas, featuring a wide 140° viewing angle and a rectangular clear lens for consistent light output. The product is RoHS compliant, supporting environmental regulations.
Manufactured in China, this SOT-23 package type comes in tape and reel packaging, ready for automated production lines. It features three pins and is optimized for surface mount technology (SMT) assembly.
Standard SOT-23 package dimensions (3.0 x 1.3 mm) enable compact PCB integration. Maximum forward current rated at 160mA supports bright and efficient operation. Dominant wavelength of 625nm assures consistent red light emission.
Wide 140° viewing angle enables broad light dispersion for indicator applications. Clear rectangular lens maximizes luminous efficiency and uniformity. RoHS compliant for environmentally safe electronic manufacturing. Tape and reel packaging suitable for high-volume automated surface mount assembly.
Surface mount design allows easy assembly in compact electronic devices.
This LED is well suited for use in electronic displays, indicators, and lighting applications across industrial, commercial, and consumer electronic sectors. Its reliable solid-state construction ensures long operating life and efficiency. Browse more LEDs and optoelectronic components at EnvMart for electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this model is 160mA.
This LED operates at a forward voltage of 2.5V.
The dimensions of the SOT-23 package are 3.0 x 1.3 mm.
The dominant wavelength of the emitted red light is 625 nm.
The luminosity of this model is 12 millicandelas.
This LED has a wide viewing angle of 140 degrees.
It is packaged in tape and reel format, suitable for automated PCB assembly.
The LED features a rectangular lens shape with a clear finish for optimal light transmission.
Yes, this LED complies with RoHS standards, ensuring environmental safety.
This model has three pins.
The maximum power dissipation for this LED is 75mW.
This LED is well suited for electronic displays, indicators, and lighting applications across various sectors.
