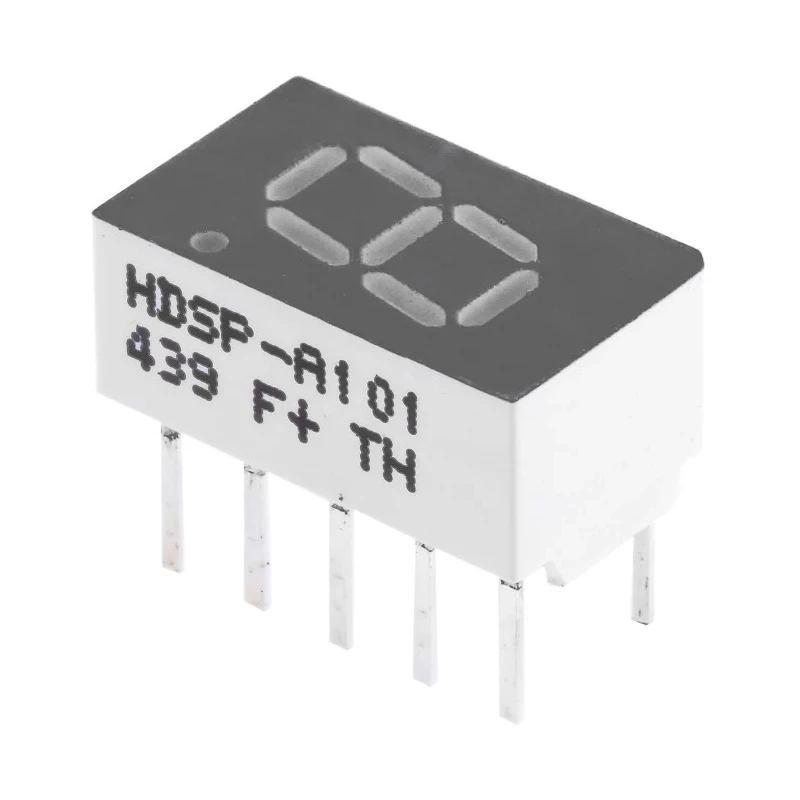

Broadcom 2 Character 7 Segment Red LED Display Anode 3.6mcd 7.6mm HDSP-A101
Specifications
| Country of Origin | India |
|---|---|
| Display Type | 7 Segment |
| Brand | Broadcom |
| Model | HDSP-A101 |
| Mount Type | Through Hole |
| Series | HDSP |
| Character height | 7.6mm |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -20°C |
| Number Of Segments | 7 |
| External Width | 7.6mm |
| External Depth | 9.9mm |
| External Height | 12.7mm |
| Luminous Intensity | 3.6mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 637nm |
| Colour of Face | Grey |
| Forward Voltage | 2.5V |
| Forward Current | 45mA |
| Number of Characters | 2 |
| Character Width | 4.2mm |
| Common Connection | Anode |
| Decimal Orientation | Right Side |
Key Features
- Features a right side decimal orientation for clear numeric representation.
- Character height of 7.6mm with a width of 4.2mm ensures good readability.
- Through hole mount type for easy installation on PCB boards.
- Operating temperature range from -20°C to 100°C suitable for varied environments.
- Forward voltage of 2.5V and a forward current rating of 45mA for optimal performance.
- Grey face color enhances contrast and display visibility.
- Complies with RoHS standards ensuring environmentally friendly manufacturing.
Product Description
Broadcom HDSP-A101 is a high-quality 7 segment LED display module designed for clear and reliable numerical display in electronic devices. It consists of 2 characters with 7 red LED segments each, delivering a luminous intensity of 3.6mcd suitable for indoor and industrial applications.
This LED display features an anode common connection and a right side decimal orientation tailored for enhanced readability. With a character height of 7.6mm and width of 4.2mm, it supports compact yet easily legible numeric presentation. The module utilizes a through hole mount type for robust mechanical placement on circuit boards.
The operating temperature range from -20°C to 100°C ensures reliable performance under various environmental conditions. Electrical specifications include a forward voltage of 2.5V and forward current rating of 45mA, optimized for long life and energy efficiency. The grey face color improves contrast and viewing clarity.
The product meets RoHS compliance, confirming its adherence to environmental regulations by restricting hazardous substances. Suitable applications include industrial instrumentation, measurement devices, electronic displays, and digital readouts in laboratory and manufacturing equipment.
Features a right side decimal orientation for clear numeric representation. Character height of 7.6mm with a width of 4.2mm ensures good readability. Through hole mount type for easy installation on PCB boards. Operating temperature range from -20°C to 100°C suitable for varied environments.
Forward voltage of 2.5V and a forward current rating of 45mA for optimal performance. Grey face color enhances contrast and display visibility. Complies with RoHS standards ensuring environmentally friendly manufacturing.
This Broadcom LED display is ideal for use in electronics, industrial automation, instrumentation panels, and other commercial equipment requiring reliable and visible numeric displays. Browse more in the LED Display category at EnvMart for compatible and complementary components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of this model is 3.6 mcd, suitable for indoor and industrial applications.
It operates within a temperature range of -20°C to 100°C, making it suitable for various environments.
The forward voltage is 2.5V with a forward current rating of 45mA, optimized for performance.
This model utilizes a through hole mount type for easy installation on PCB boards.
The external dimensions are 7.6mm in width, 9.9mm in depth, and 12.7mm in height.
The character height is 7.6mm and the character width is 4.2mm, ensuring good readability.
It features a common anode connection, which is typical for this type of display.
The face color of this model is grey, which enhances contrast and visibility.
Yes, it complies with RoHS standards, ensuring environmentally friendly manufacturing.
It is suitable for applications in industrial instrumentation, measurement devices, and electronic displays.
This model can display 2 characters, each consisting of 7 segments.
The dominant wavelength of the red LED is 637nm, which is typical for red LEDs.
