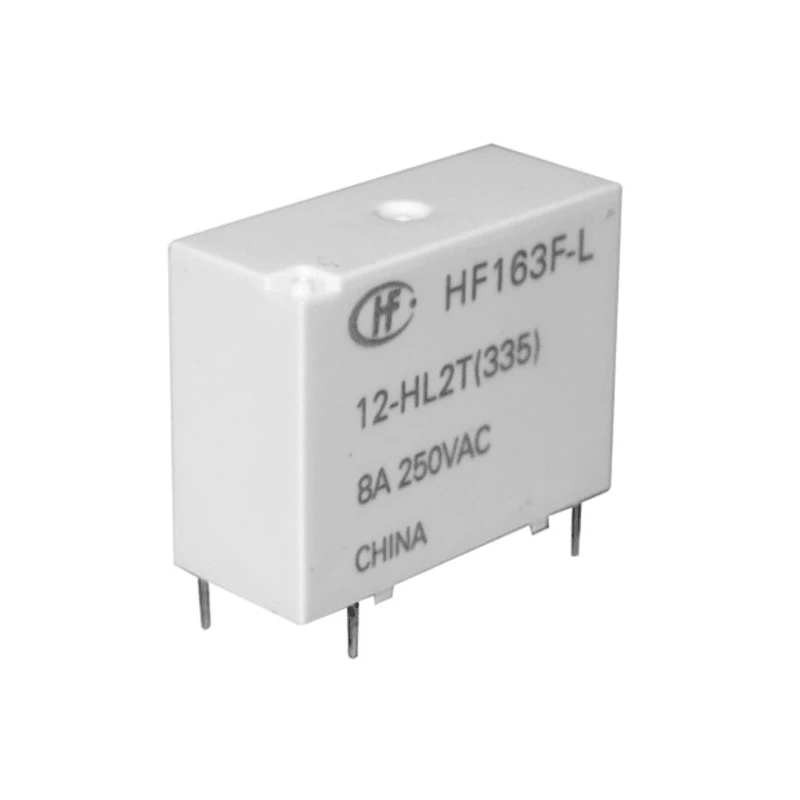

Hongfa Europe GMBH PCB Power Relay 12V dc Coil 10A SPST HF163F-L/12-HL2T
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 18.8mm |
| Length | 24mm |
| Model | HF163F-L/12-HL2T |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF163F-L |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | PCB Terminal |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 400mW |
Key Features
- Features SPST contact configuration suitable for a wide range of applications.
- Supports switching AC voltage up to 250V and DC voltage up to 30V.
- Operates within temperature range of -40°C to 85°C for versatile environments.
- Equipped with silver alloy contacts ensuring high electrical endurance and reliability.
- PCB mounting type with terminal connections for easy integration into circuits.
- Low coil power consumption of 400mW contributes to energy efficiency.
- The relay offers high isolation voltage of 5KVAC between coil and contacts.
- Designed for high mechanical endurance with life expectancy of 1 million cycles.
Product Description
Hongfa Europe GMBH HF163F-L/12-HL2T is a PCB power relay featuring a 12V dc coil designed for industrial and automation applications requiring reliable switching performance.
This relay has a single pole single throw (SPST) contact configuration capable of switching currents up to 10A, with switching voltages up to 250V AC and 30V DC. Its compact dimensions (24mm length, 10mm width, 18.8mm height) allow for excellent board space saving in electronic devices.
The relay utilizes silver alloy contacts providing superior electrical endurance and durability. The coil power is low at 400mW, aiding efficient operation with minimal power consumption. It can withstand an operating temperature range from -40°C to 85°C, ensuring suitability for harsh industrial environments.
Other key features include a coil resistance of 360 ohms and a contact resistance of 100 milliohms which enhance performance consistency and signal integrity. The relay is RoHS compliant, affirming its environmental safety and regulatory adherence. Isolation voltage between coil and contacts is rated at 5KVAC for operational safety.
This PCB mount type relay is suitable for use in industrial machinery, telecommunications, automotive controls, household appliances, and other control devices. It offers high mechanical endurance rated for 1 million cycles, making it a reliable component for long-term applications.
Hongfa Europe GMBH HF163F-L/12-HL2T Power Relay combines durability, energy efficiency, and compact design to meet the demands of modern electrical and automation systems. Features SPST contact arrangement for robust switching.
Low coil power consumption enabling energy-saving designs. Supports wide operating temperature range from -40°C to 85°C. High mechanical endurance extends service life to over one million cycles. Compliance with RoHS standards ensures environmental safety.
Explore more Power Relays and signal relays at EnvMart to find components suited for your industrial and commercial electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for the HF163F-L/12-HL2T relay is 10A.
This model supports switching AC voltage up to 250V and DC voltage up to 30V.
The coil voltage for this relay is 12V DC.
It operates within a temperature range of -40°C to 85°C.
The relay features a single pole single throw (SPST) contact configuration.
The coil power consumption is low at 400mW, which contributes to energy efficiency.
The contacts are made of silver alloy, ensuring high electrical endurance.
The dimensions of the HF163F-L/12-HL2T are 24mm in length, 10mm in width, and 18.8mm in height.
The isolation voltage between the coil and contacts is rated at 5KVAC.
The contact resistance is 100 milliohms (100mΩ).
Yes, this relay is RoHS compliant, ensuring it meets environmental safety standards.
The relay has a high mechanical endurance rated for 1 million cycles.
