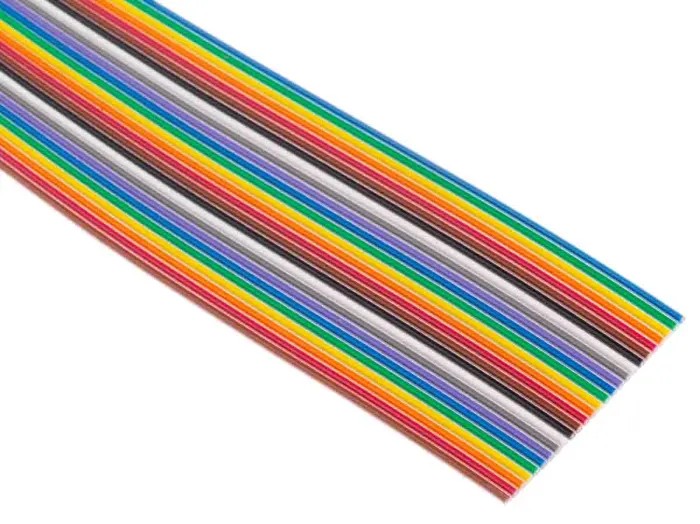

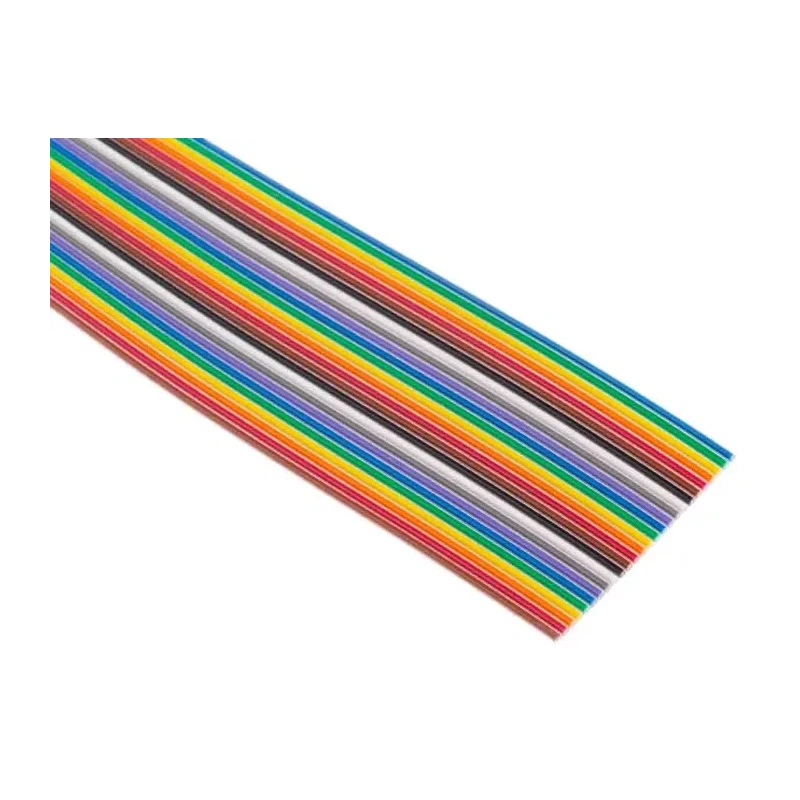

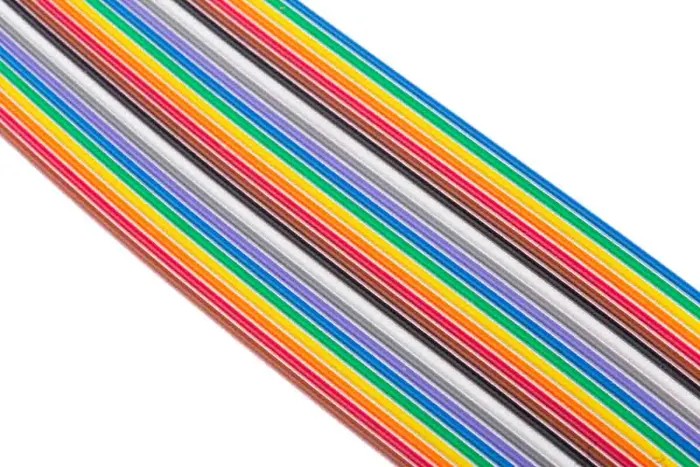

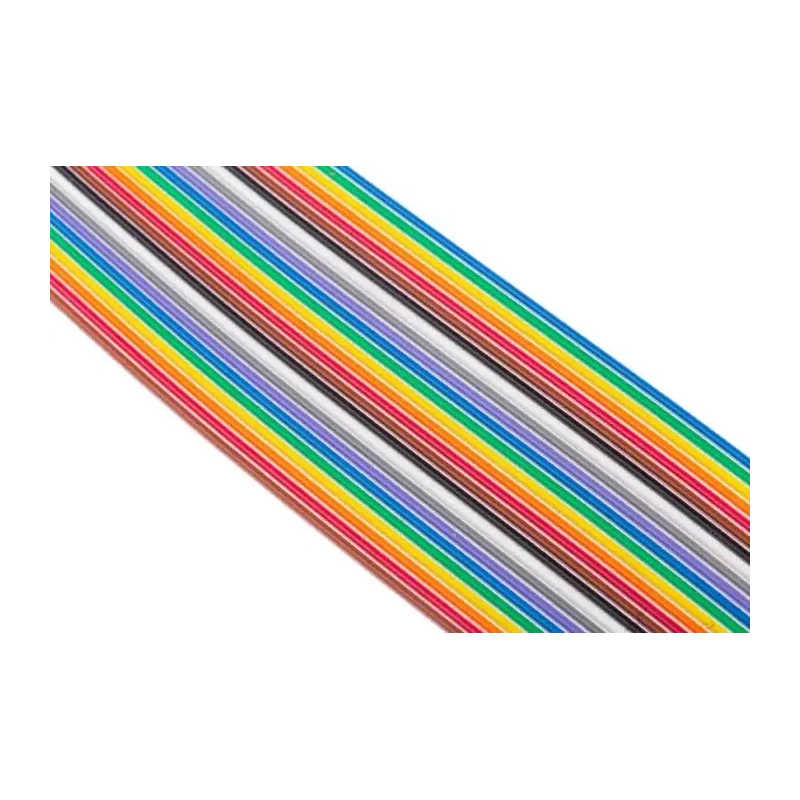

3M Ribbon Cable Flat 1.27 mm Pitch 26 Conductor 30 m Length 3302-26 100FT

Free Delivery in India | Lowest Global Shipping Charges

3M Ribbon Cable Flat 1.27 mm Pitch 26 Conductor 30 m Length 3302-26 100FT



Category Ribbon Cable Brand 3M Condition New

Specifications

Country of Origin	United States
Voltage	300V
Brand	3M
Model	3302-26 100FT
Cable Length	30m
Series	3302
Maximum Operating Temperature	105°C
Conductor Material	Tin Plated Copper
Cable Type	Flat
Minimum Operating Temperature	-20°C
Jacket Material	Polyvinyl Chloride
Pitch	1.27mm
Standards/Approvals	RoHS, AWM 20462, Style No: 20462, UL File No.: E42769
Fire Behaviour	VW-1 (Usa), FT1 (Canada)
American Wire Gauge	28AWG
Screened/Unscreened	Unscreened
Conductor Type	Stranded
Number of Strands	7
Core Strands	7 x 0.127mm
Size of Strands	0.127mm
Number of Conductors	26
3M 3365 Series Ribbon Cable, Flat, 1.27 mm Pitch, 26, 30 m LengthBrand	3M
3M 3517 Series Ribbon Cable, 26-Way, 1.27mm PitchBrand	3M
HARTING Ribbon Cable, Ribbon, 1.27 mm Pitch, 26, 30 m LengthBrand	HARTING
Standards/Approvals RoHS, AWM 20462, Style No	20462, UL File No.: E42769

Key Features

The ribbon cable features a flat cable type for space-saving installations.
It has a pitch of 1.27 mm suitable for various 3M IDC connectors.
The 28 AWG stranded tinned copper conductors ensure flexibility and durability.
It supports a maximum operating voltage of 300V and temperature up to 105°C.
The cable length is 30 meters, ideal for computing and communications applications.
Its polyvinyl chloride jacket provides protection and fire resistance (VW-1, FT1 ratings).
This cable is unscreened and RoHS compliant, meeting standards UL File No. E42769.
Typical applications include internal electronic wiring, test equipment, robotics, and data transmission.

Product Description

3M 3302-26 100FT Ribbon Cable is a high-quality flat ribbon cable with a 1.27 mm pitch and 26 conductors designed for efficient and reliable electronic connections. Engineered by 3M, this cable provides excellent flexibility thanks to its stranded tinned copper conductors and is suitable for mass termination with a wide range of 3M IDC connectors.

The cable length of 30 meters makes it suitable for a variety of industrial and commercial applications including computing, robotics, automated measurement, and communications equipment. Its polyvinyl chloride jacket offers durable protection along with fire behavior ratings VW-1 (USA) and FT1 (Canada), ensuring safety and performance in demanding environments.

With a rated voltage of 300V and an operating temperature range from -20°C to 105°C, this ribbon cable is designed to withstand rigorous operating conditions while minimizing signal interference due to its unscreened design optimized for flexible internal wiring solutions.

The stranded 28 AWG conductors (7 strands of 0.127 mm diameter each) provide enhanced flexibility and extended product life, making this cable ideal for dynamic applications requiring repetitive motion.

Flat cable construction allows space-efficient wiring and mass termination. Compatibility with multiple 3M IDC connectors ensures versatile integration. High insulation resistance exceeding 10⁹ Ω per 3 meters guarantees signal integrity.

RoHS compliant adhering to environmental safety directives. Fire retardant jacket enhances safety in diverse industrial setups. Ideal for internal wiring of electronic appliances, hard drives, and interface units. Extensively used in electronics, laboratory, manufacturing, and communication fields.

Choose 3M Ribbon Cables for reliable, space-efficient, and flexible electronic wiring solutions suited for advanced industrial and commercial environments. Explore more 3M products and accessories in EnvMart's Electronics & Electricals category.
