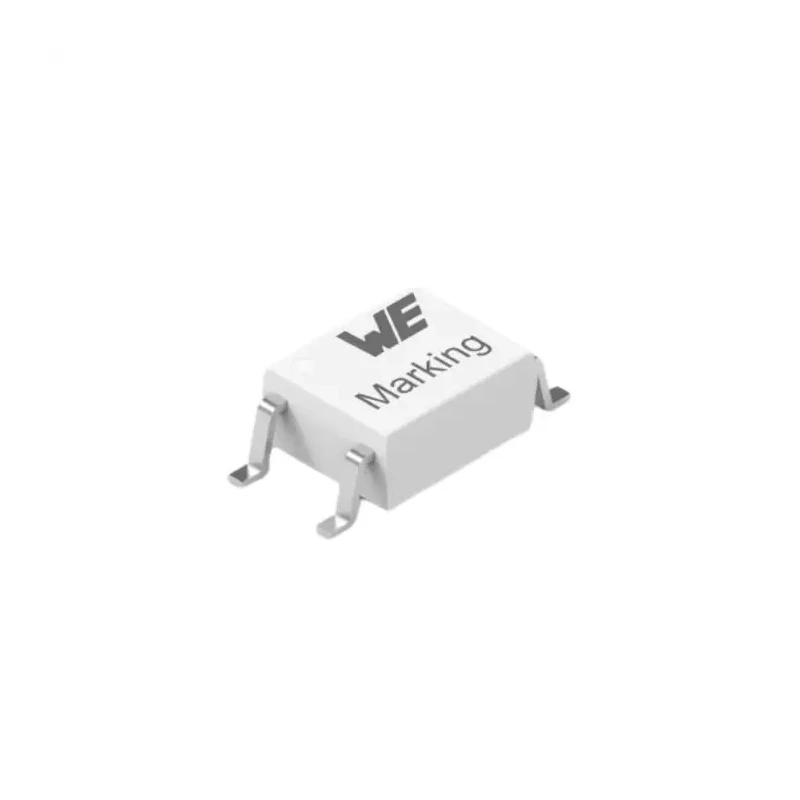

Wurth Elektronik DC Input Phototransistor Surface Mount 4-Pin SOP 140357145200
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | WL-OCPT |
| Maximum Operating Temperature | 110°C |
| Package Type | SOP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 3μs |
| Maximum Current Transfer Ratio | 260% |
| Typical Fall Time | 4μs |
| Minimum Current Transfer Ratio | 130% |
Key Features
- This phototransistor has a maximum forward voltage of 1.4V.
- It is rated for a maximum input current of 60mA.
- The device exhibits typical rise and fall times of 3μs and 4μs, respectively.
- Operating temperature ranges from -55°C to 110°C for versatile applications.
- It features a minimum current transfer ratio of 130% and a maximum of 260%.
- The package type is a small outline package (SOP) suitable for automated assembly.
- Compliant with RoHS and halogen-free standards ensuring environmental safety.
- Isolation voltage of 3750Vrms ensures reliable electrical isolation.
Product Description
Wurth Elektronik 140357145200 is a DC input phototransistor designed for surface mounting applications. It is encapsulated in a 4-pin small outline package (SOP) which facilitates compact and automated PCB assembly.
The device possesses a maximum forward voltage of 1.4 volts and supports an input current up to 60 mA. It offers swift response times, with a typical rise time of 3 microseconds and a fall time of 4 microseconds, suitable for fast switching and sensing tasks in electronic circuits.
Operating reliably over a broad temperature range from -55°C to 110°C, this phototransistor is applicable in various industrial and electronic settings. Its minimum and maximum current transfer ratios are 130% and 260% respectively, indicating its amplification efficiency. The device withstands an isolation voltage of 3750 Vrms, ensuring strong electrical isolation essential in sensitive signal environments.
The housing is made of plastic, colored white, providing durability and protection. It is compliant with environmental directives such as RoHS and is halogen-free, making it a safe choice for modern electronic manufacturing.
This Wurth Elektronik phototransistor is ideal for use in optoelectronic circuits, including industrial control systems, signal isolators, and other electronics requiring precise optical to electrical signal conversion.
This phototransistor has a maximum forward voltage of 1.4V. The device supports a maximum input current of 60mA. It exhibits fast typical rise and fall times of 3μs and 4μs respectively. Operating temperature range is from -55°C up to +110°C.
Current transfer ratios range from 130% minimum to 260% maximum. The package type is a 4-pin SOP suitable for surface mount technology. It meets RoHS and halogen-free compliance standards. Isolation voltage is rated at 3750Vrms for electrical safety.
Constructed with durable white plastic housing. Explore the full range of Wurth Elektronik's Phototransistors and other electronic components available on EnvMart for industrial, laboratory, and electronics design applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of this phototransistor is 1.4V.
It supports a maximum input current of 60mA.
The typical rise time is 3μs and the fall time is 4μs.
The operating temperature range is from -55°C to 110°C.
The minimum current transfer ratio is 130% and the maximum is 260%.
It comes in a 4-pin small outline package (SOP) suitable for surface mounting.
Yes, it is compliant with RoHS and halogen-free standards.
The isolation voltage is rated at 3750Vrms.
It is packaged in tape and reel format, facilitating automated assembly.
This phototransistor belongs to the WL-OCPT series.
This device has one channel.
It supports DC input current.
