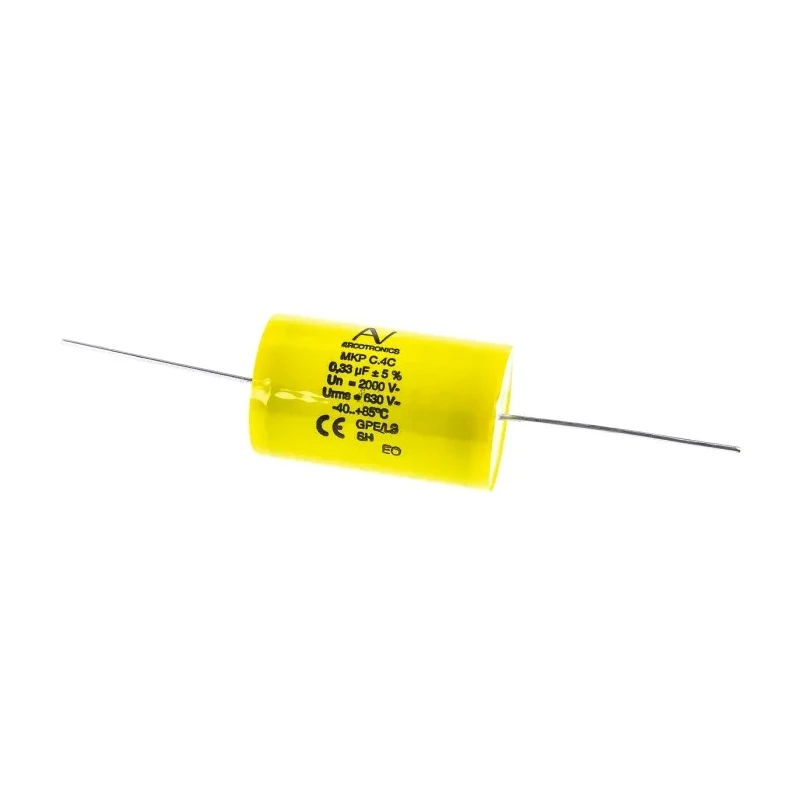

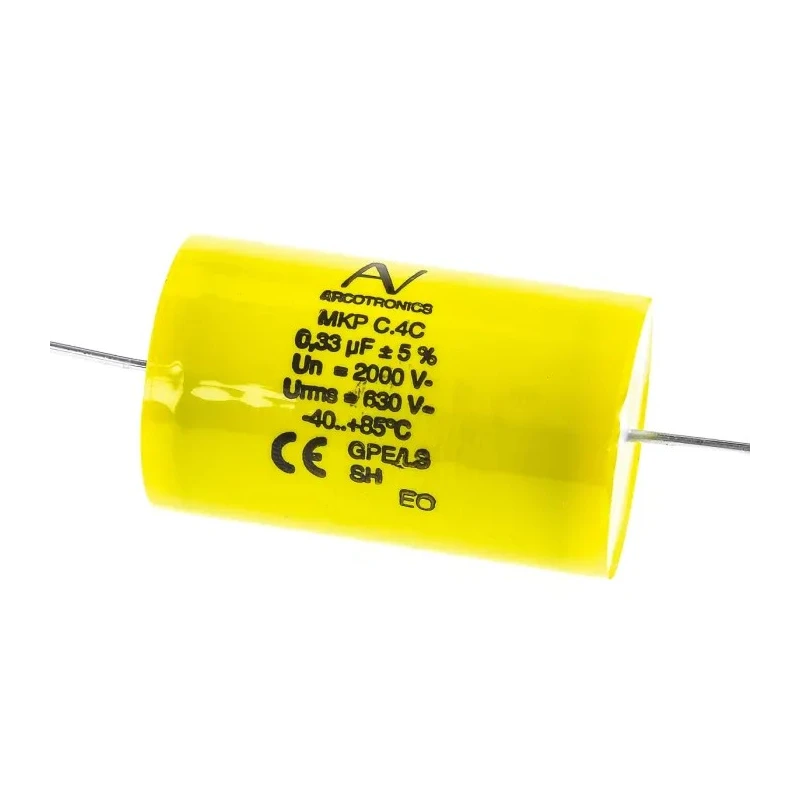

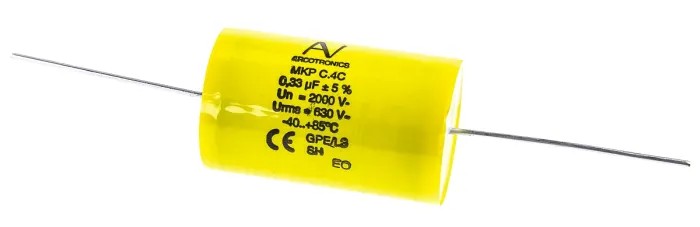

KEMET Polypropylene Capacitor 330 nF ±5% 2 kV DC 630 V AC Through Hole Mount C4CAWUD3330AA1J

Free Delivery in India | Lowest Global Shipping Charges

KEMET Polypropylene Capacitor 330 nF ±5% 2 kV DC 630 V AC Through Hole Mount C4CAWUD3330AA1J

Name: KEMET Polypropylene Capacitor 330 nF ±5% 2 kV DC 630 V AC Through Hole Mount C4CAWUD3330AA1J
Brand: KEMET
SKU: 97225
Price: 7.89 USD
Availability: InStock



Category Capacitors Brand KEMET Condition New

Specifications

Country of Origin	India
Brand	KEMET
Height	28.5mm
Length	44mm
Model	C4CAWUD3330AA1J
Packaging	Bag
Width	28.5mm
Mount Type	Through Hole
Series	C4C
Maximum Operating Temperature	85°C
Tolerance	±5 %
Capacitance	330nF
Minimum Operating Temperature	-40°C
Terminal type	Wire
Dissipation Factor	0.0005%
Lead Length	6mm
Standards/Approvals	EN 61071, IEC 61071, VDE 0560
Package/Case	Plastic
Pin Count	2
Rated AC Voltage	630V ac
Rated DC Voltage	2kV dc
Lead Diameter	1.2mm
Equivalent Series Resistance ESR	6mΩ

Key Features

This capacitor has a capacitance of 330 nanofarads with a tolerance of ±5 percent.
Rated DC voltage is 2 kV and AC voltage rating is 630 V, assuring high voltage endurance.
The product features a through hole mounting type with wire terminal and 6 mm lead length.
Operates reliably at temperatures from -40°C to a maximum of 85°C with a low equivalent series resistance of 6 milliohms.
Constructed with a plastic package/case and has dimensions of 44 mm length, 28.5 mm width, and 28.5 mm height.
Complies with EN 61071, IEC 61071, and VDE 0560 standards ensuring quality and safety.
Lead diameter measures 1.2 mm and dissipation factor is extremely low at 0.0005%.

Product Description

KEMET C4CAWUD3330AA1J polypropylene capacitor with a capacitance of 330 nF and tolerance of ±5% is designed for demanding industrial and electronic applications requiring reliable high voltage film capacitors.

The capacitor supports a rated DC voltage of 2 kV and an AC voltage of 630 V, ensuring stable operation under stringent voltage conditions. It features a through hole mount with wire terminal connection and lead length of 6 mm for versatile PCB assembly.

It operates efficiently over a wide temperature range from -40°C up to 85°C and has a minimal equivalent series resistance of 6 mΩ, making it suitable for snubber circuits, power semiconductor circuits, electronic ballasts, and motor control applications.

The polypropylene dielectric film provides very low losses, high ripple current capability, and self-healing properties enhancing the capacitor’s longevity and electrical performance.

The dimensions are compact with 44 mm length, 28.5 mm width, and 28.5 mm height housed in a durable plastic package. The product complies with international standards EN 61071, IEC 61071, and VDE 0560 for quality assurance.

Capacitance: 330 nF ±5% tolerance. Rated DC voltage: 2 kV. Rated AC voltage: 630 V. Through hole mount with wire leads and 6 mm lead length. Operating temperature range: -40°C to 85°C. Low equivalent series resistance (ESR) of 6 mΩ.

Plastic package with dimensions 44 x 28.5 x 28.5 mm. Meets EN 61071, IEC 61071, and VDE 0560 standards. Lead diameter 1.2 mm with dissipation factor 0.0005%. This capacitor is ideal for industrial electronics, power circuitry protection, signal conditioning in measuring instruments, and automotive electrical systems.
