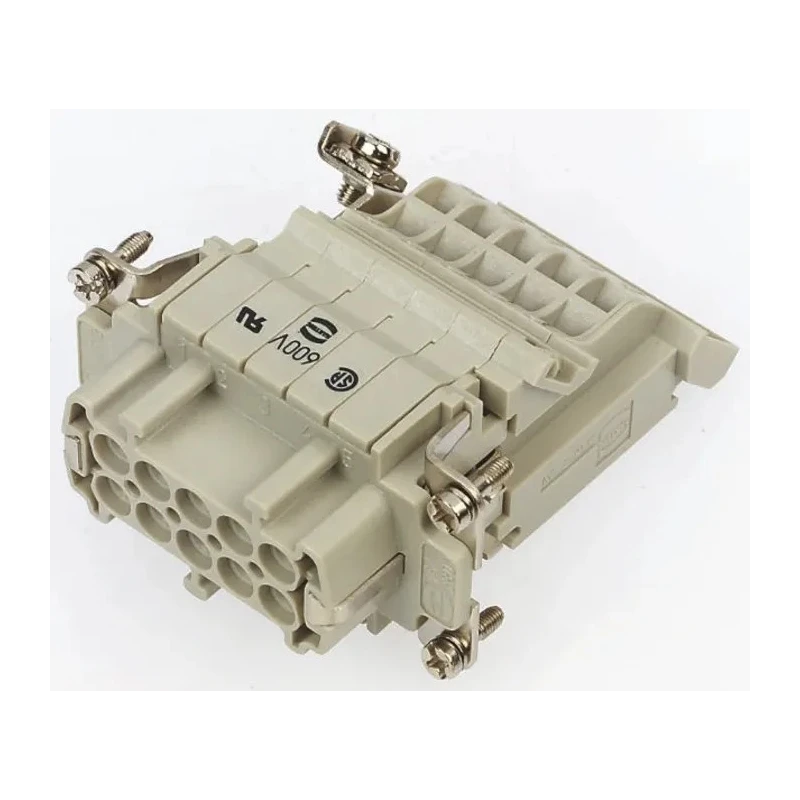

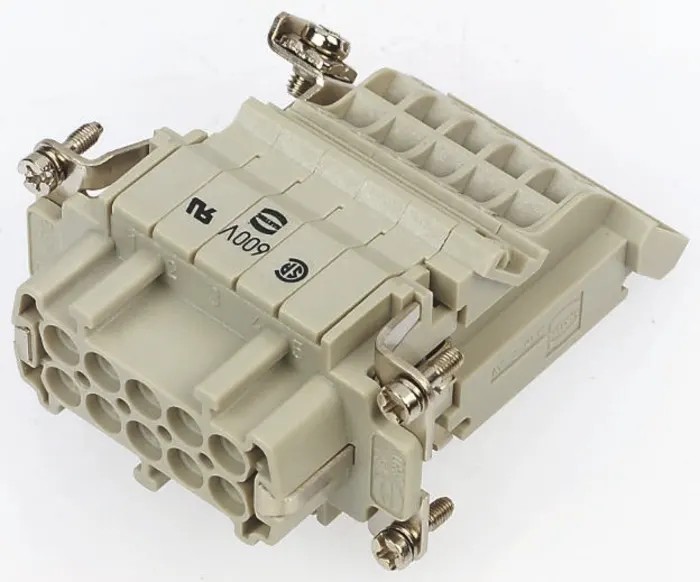

HARTING Heavy Duty Power Connector Insert 16A, Han B Series Female, 10 Contacts 09330104725
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | HARTING |
| Orientation | Straight |
| IP Rating | IP65 |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Current Rating | 16A |
| Series | Han B |
| Thread Size | M3 x 10 |
| Sub Type | Connector Insert |
| Number of Rows | 2 |
| For Use With | Heavy Duty Power Connector |
| Pole Format | 10+E |
| Contact Plating | Silver |
| Number of Contacts | 10 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 2.5mm² |
Key Features
- Rated for a current of 16 amperes to ensure reliable power transfer.
- Consists of 10 contacts arranged in a 2-row 10+E pole format for versatile connectivity.
- Constructed with copper alloy contacts featuring silver plating for superior conductivity and corrosion resistance.
- Designed with a straight orientation and cable mount type for ease of installation.
- IP65 rated for protection against dust and water ingress.
- Accepts wire sizes from 0.2mm² up to 2.5mm² providing flexible wiring options.
- Thread size M3 x 10 for secure fastening.
- Compatible with Han E AV terminal blocks and related housings for modular setups.
Product Description
HARTING 09330104725 Heavy Duty Power Connector Insert is engineered for industrial and electronic applications requiring robust power connections. This Han B Series female connector insert is rated at 16A current and 500V voltage, providing dependable performance in demanding environments.
Manufactured with copper alloy contacts that are silver-plated, it ensures excellent electrical conductivity and reliable corrosion resistance. The insert features 10 contacts arranged in a 2-row 10+E pole format, optimized for flexibility in wiring configurations and power distribution.
With a straight orientation and cable mount type, installation is straightforward and secure. It accepts wire sizes ranging from 0.2mm² to 2.5mm², accommodating various industrial wiring needs. The thread size M3 x 10 and an IP65 rating guarantee a dust-tight and water-resistant connection, suitable for harsh operating conditions in industrial and construction settings.
This connector insert is compatible with Han E AV terminal blocks and an array of housings designed for customizable connection assemblies. The mechanical life of 500 mating cycles supports long-term durability and reliability, backed by approvals including UL, CSA, and SEV.
Rated current: 16A for heavy-duty power applications. Voltage rating of 500V for industrial use. 10 contacts in 10+E pole format arranged over 2 rows. Copper alloy contacts with silver plating for enhanced conductivity. Straight connector orientation and cable mount installation.
IP65 protection against dust and water intrusion. Wire acceptance from 0.2mm² up to 2.5mm². Thread size M3 x 10 for secure mechanical fastening. Compatible with Han E AV terminal block systems. Mechanical durability rated for 500 mating cycles.
This product is ideal for use in industrial automation, electronics, manufacturing, and power distribution systems where a reliable heavy duty connector insert is essential. The HARTING brand assures quality and longevity under demanding conditions.
Browse the Electronics & Electricals category at EnvMart for more industrial connectors and power distribution solutions from leading manufacturers like HARTING.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector insert is rated for a current of 16A, ensuring reliable power transfer in various applications.
It has a voltage rating of 500V, suitable for industrial use.
This model features 10 contacts arranged in a 2-row 10+E pole format for versatile connectivity.
It accepts wire sizes ranging from 0.2mm² to 2.5mm², providing flexibility for various wiring needs.
The contacts are made of copper alloy and are silver-plated for enhanced conductivity and corrosion resistance.
It is rated IP65, offering protection against dust and water ingress, making it suitable for harsh environments.
The thread size is M3 x 10, ensuring secure mechanical fastening during installation.
It features a straight orientation and is designed for cable mounting, facilitating straightforward installation.
Yes, it is compatible with Han E AV terminal blocks and related housings for modular setups.
The mechanical life of this connector insert is rated for 500 mating cycles, supporting long-term use.
The connector insert is manufactured in India.
It is ideal for use in industrial automation, electronics, manufacturing, and power distribution systems.
