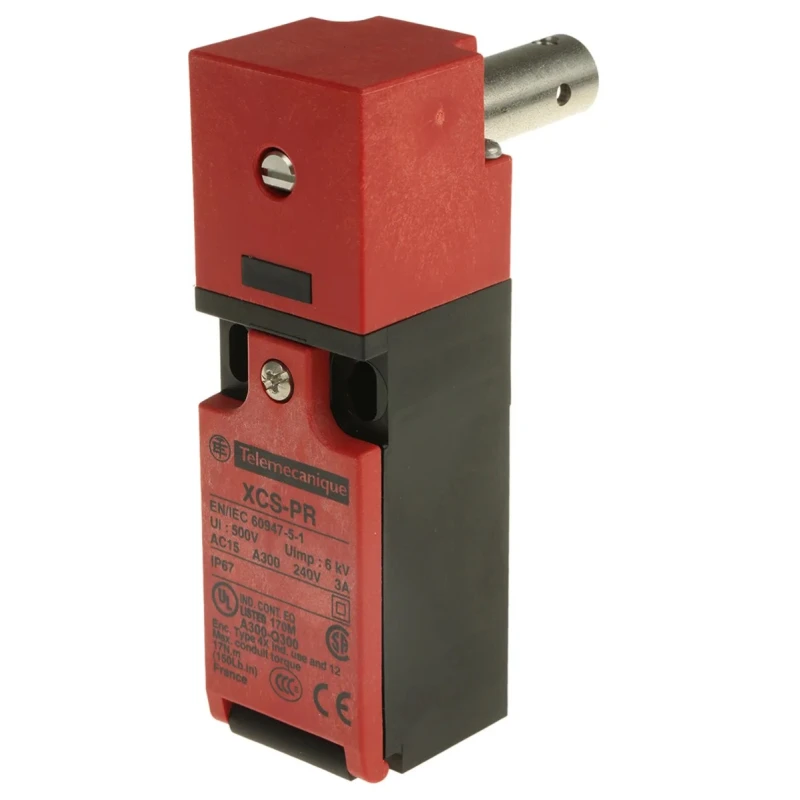

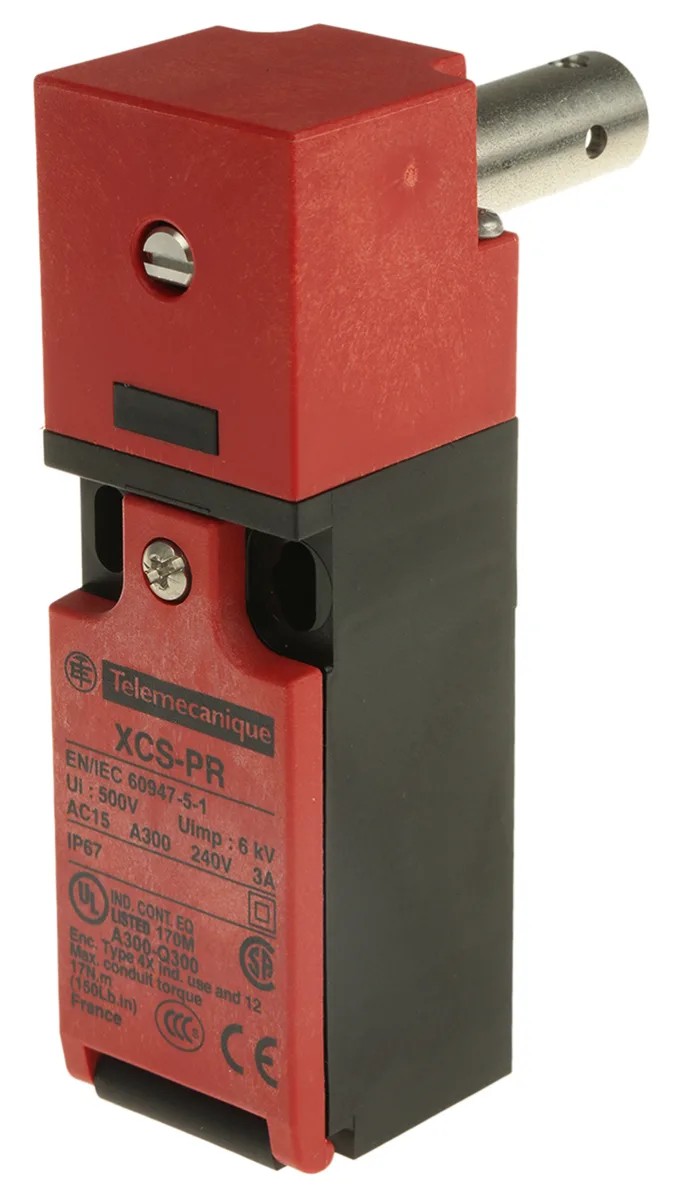

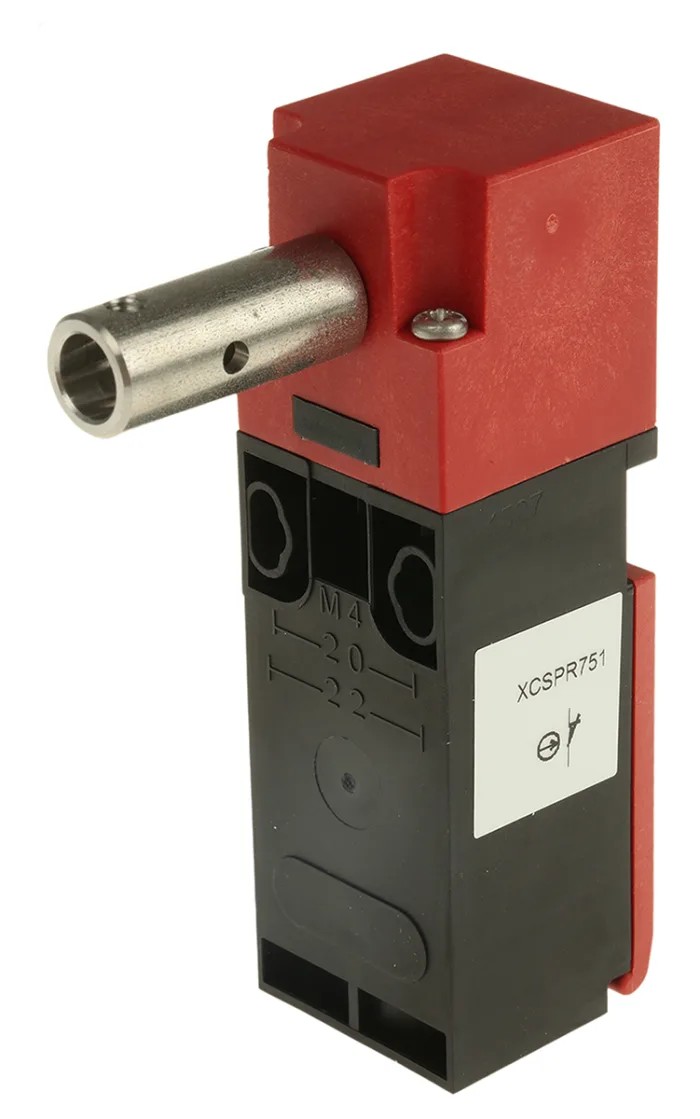

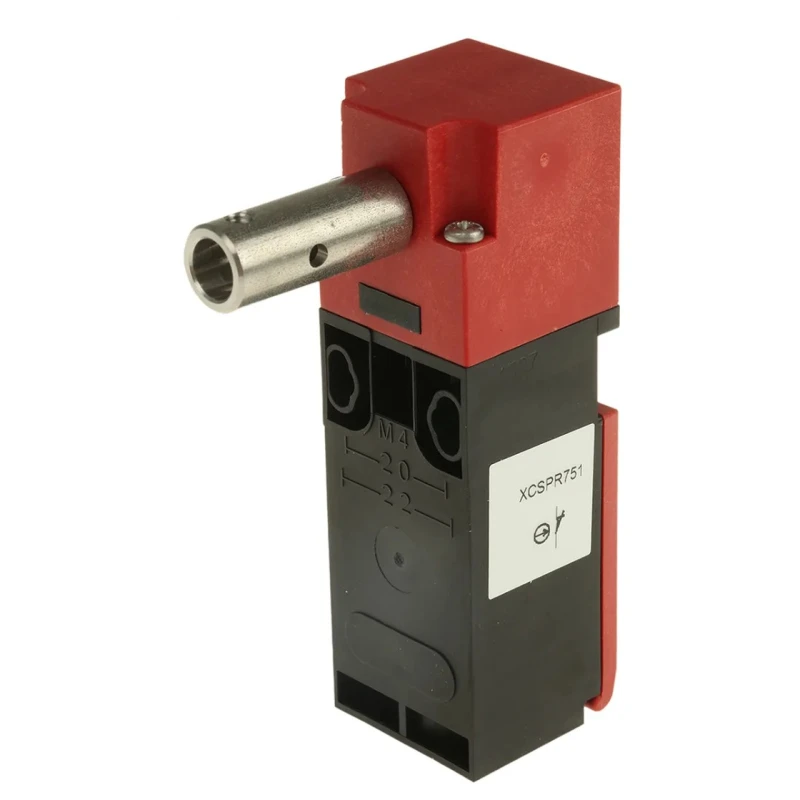

Telemecanique Sensors Safety Hinge Switch Plastic Body IP67 250V DC 3A Contact XCSPR751
Specifications
| Country of Origin | India |
|---|---|
| Brand | Telemecanique Sensors |
| Height | 96mm |
| Length | 80mm |
| Model | XCSPR751 |
| IP Rating | IP67 |
| Width | 30mm |
| Housing Material | Plastic (Body) |
| Series | XCS |
| Maximum Operating Temperature | 70°C |
| Cable Entry Size | PG11 |
| Minimum Operating Temperature | -25°C |
| Shaft Length | 30mm |
| Terminal type | Screw Clamp |
| Contact DC Voltage | 250V dc |
| Mechanical Life | 1000000Cycles |
| Contact AC Voltage | 240V ac |
| Contact Current | 3A |
| Number of Cable Entries | 1 |
| Trigger Angle Range | 5 ° |
Key Features
- The plastic housing ensures durability and light industrial suitability.
- IP67 rating provides excellent dust and water ingress protection.
- Designed for 250V DC and 240V AC contact voltage with a maximum current of 3A.
- Features a 5° displaced tripping angle for precise operation.
- Includes screw clamp terminals and a PG11 cable entry size for easy installation.
- Supports a mechanical life of 1,000,000 cycles for long-term use.
- Operates reliably within temperatures of -25°C to 70°C.
- Compliance with multiple standards such as EN/IEC 60204-1, UL 508, CSA C22.2 No. 14, and EN/IEC 60947 series ensures safety and quality.
Product Description
Telemecanique Sensors XCSPR751 Safety Hinge Switch is a high-performance safety component designed for light industrial machines equipped with hinged or rotary protective covers, especially with a small opening radius such as double gate guards. Featuring a robust plastic body and IP67 ingress protection, this safety hinge switch is optimized to withstand harsh operating environments while ensuring reliable safety functions.
It operates at a contact DC voltage of 250V and AC voltage of 240V with a maximum current rating of 3A, suitable for numerous safety interlock applications. The slow break safety contacts with positive opening action guarantee that normally closed contacts open when the spindle is displaced beyond 5°, preventing hazardous machine operation.
The switch is designed with a single cable entry suitable for PG11 cable glands, facilitating straightforward integration into existing panels and wiring schemes. With a mechanical life of 1 million cycles, it offers durability and longevity in demanding industrial settings. Operating temperature range of -25°C to 70°C ensures reliable performance in diverse climates.
The plastic housing provides structural resilience and electrical insulation. IP67 rating certifies the unit against dust penetration and water immersion, essential for tough industrial environments. Screw clamp terminals enable secure and maintenance-friendly wiring connections.

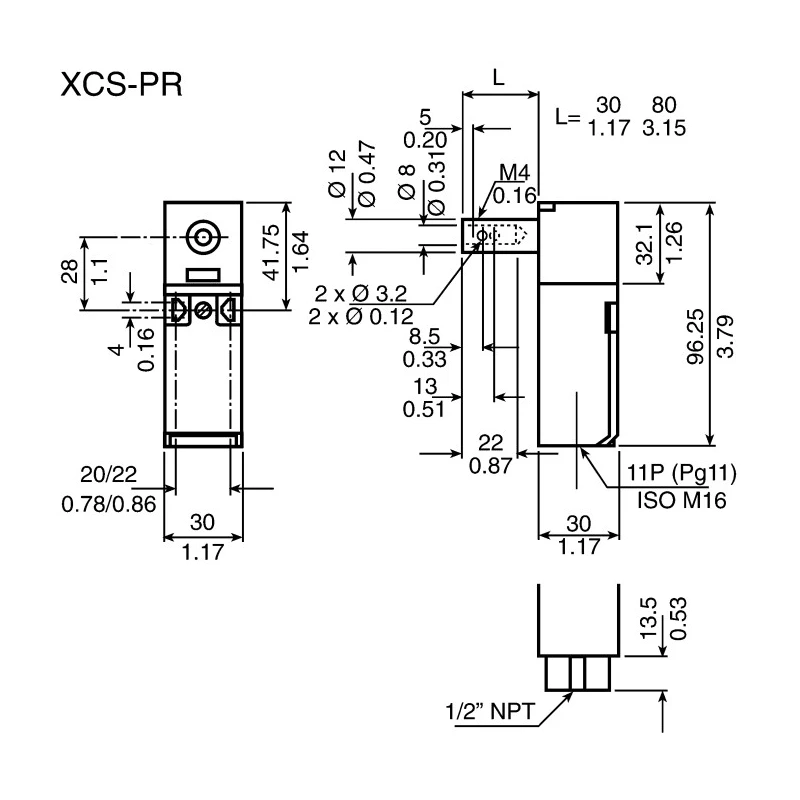

Compact dimensions of 80mm length, 30mm width, and 96mm height allow flexible mounting in tight spaces. Meets rigorous international safety standards including EN/IEC 60204-1, UL 508, CSA C22.2 No. 14, EN 1088/ISO 14119, EN/IEC 60947-5-1, and EN/IEC 60947-5-4.
Widely applicable in manufacturing, automation, electrical safety systems, and industrial machine guarding.
This product is ideal for use in industrial automation systems requiring reliable and certified safety switches to protect personnel and equipment. Explore our comprehensive range of Safety Switches and sensors for robust industrial safety solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact DC voltage for this model is 250V, while the maximum AC voltage is 240V.
This safety hinge switch has a maximum current rating of 3A.
The switch has an IP67 rating, providing excellent protection against dust and water ingress.
The dimensions of this unit are 80mm in length, 30mm in width, and 96mm in height.
It has a mechanical life of 1,000,000 cycles, ensuring long-term use in industrial applications.
The operating temperature range is from -25°C to 70°C.
Wiring is connected via screw clamp terminals, which facilitate secure and maintenance-friendly connections.
It supports a PG11 cable entry size, allowing for straightforward integration into existing panels.
This model complies with several standards, including EN/IEC 60204-1, UL 508, and CSA C22.2 No. 14.
The safety contacts have a trigger angle range of 5°, ensuring precise operation.
The housing of the switch is made from plastic, providing durability and electrical insulation.
This safety hinge switch is widely applicable in manufacturing, automation, electrical safety systems, and industrial machine guarding.
