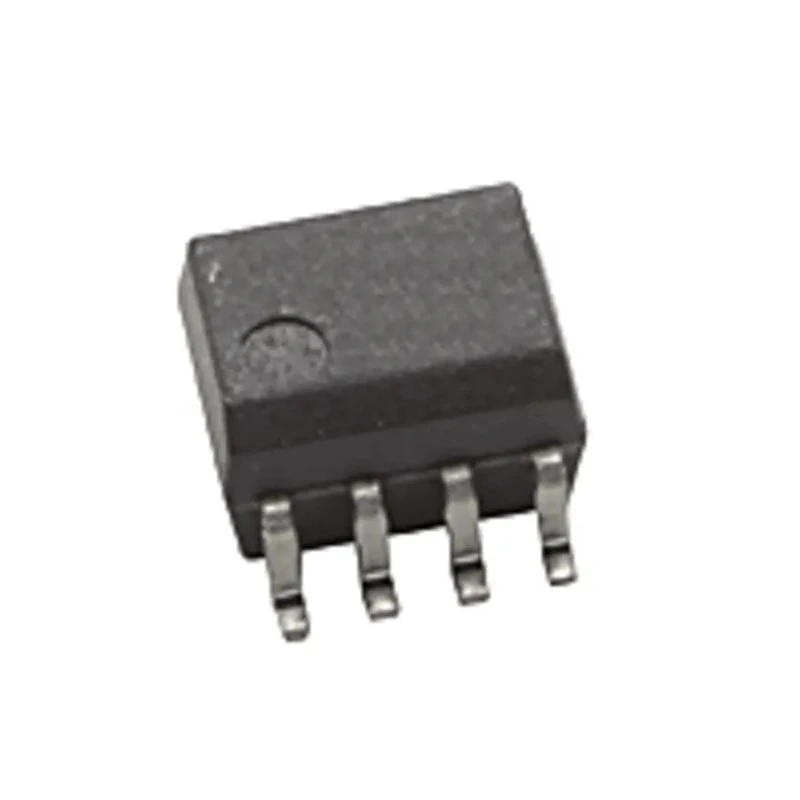

Broadcom High-Speed 8-Pin Surface Mount Optocoupler HCPL-0302-500E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HCPL-0302-500E |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | HCPL |
| Maximum Operating Temperature | 100°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 20mA |
| Number Of Channels | 1 |
| Standards/Approvals | IEC/EN/DIN EN 60747-5-2, CSA, UL 1577 |
| Maximum Forward Voltage | 1.8V |
| Number of Pins | 8 |
| Typical Rise Time | 50ns |
Key Features
- Uses a GaAsP LED optically coupled to an integrated circuit with power output stage.
- Provides high operating voltage range of the output stage for gate-controlled devices.
- Single channel optocoupler with 8-pin small outline package.
- Offers 0.2 A minimum peak output current for driving power transistors.
- Ultra-high common mode rejection (CMR) of minimum 10 kV/μs at 1000 V common mode voltage.
- Wide operating temperature range from -40°C to 100°C.
- Fast response with maximum 0.7 μs propagation delay over temperature range.
- High isolation voltage rating of 3750 Vrms ensuring safety and noise immunity.
Product Description
Broadcom HCPL-0302-500E is a high-speed optocoupler featuring an 8-pin SO surface mount package. It integrates a GaAsP LED optically coupled to an integrated circuit that includes a power output stage, making it ideal for driving power IGBTs and MOSFETs in motor control inverter and industrial power switching applications.
The device supports a wide operating temperature range from -40°C to 100°C and a wide supply voltage range from 10 V to 30 V, allowing robust operation in harsh industrial environments. Its ultra-high common mode rejection ratio of at least 10 kV/μs at 1000 V common mode voltage ensures reliable noise immunity critical for industrial and automotive control systems.
The HCPL-0302-500E offers a minimum peak output current of 0.2 A, allowing it to deliver the required gate drive voltages for effective power transistor switching. Typical rise and fall times are 50 ns, and propagation delay is maximum 0.7 μs, enabling fast switching performance.
This optocoupler meets safety and compliance standards including IEC/EN/DIN EN 60747-5-2, CSA, and UL 1577, ensuring suitability for regulated applications. It is supplied in tape and reel packaging to facilitate automated PCB assembly processes commonly used in electronics manufacturing.
High-speed gate drive optocoupler for industrial power control. Compatible with motor control, inverter, and power electronics applications. Surface mount 8-pin SO package allows compact PCB layouts. Wide operating temperature and supply voltage ranges.
High isolation voltage and ultra-high common mode rejection. Compliant with major global safety standards.
The HCPL-0302-500E is ideal for industrial, manufacturing, and automation environments requiring robust, high-performance Optocouplers. Explore the full range of Broadcom optoelectronic components and related products in EnvMart for your industrial electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 100°C.
It offers a minimum peak output current of 0.2 A, suitable for driving power transistors.
The maximum propagation delay for this unit is 0.7 μs, enabling fast switching performance.
This model comes in an 8-pin surface mount SO package, allowing for compact PCB layouts.
The maximum input current for the HCPL-0302-500E is 20 mA.
It has an ultra-high common mode rejection ratio of at least 10 kV/μs at 1000 V common mode voltage.
This optocoupler meets IEC/EN/DIN EN 60747-5-2, CSA, and UL 1577 safety standards.
The typical rise time for this unit is 50 ns.
The operating temperature range for the HCPL-0302-500E is from -40°C to 100°C.
It is supplied in tape and reel packaging to facilitate automated PCB assembly processes.
This optocoupler is ideal for driving power IGBTs and MOSFETs in motor control inverter and industrial power switching applications.
This model features a single channel optocoupler design.
