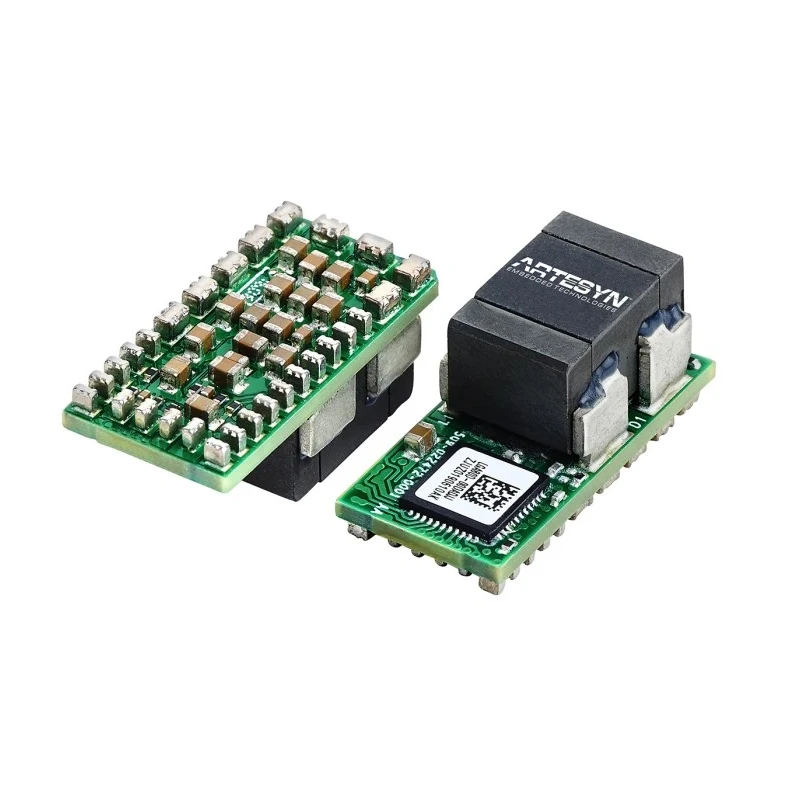

Artesyn / Advanced Energy DC/DC Converter, 5.2V DC Output, 80A, 13.8V Input, Surface Mount, 85 °C Max Temp LGA80D
Specifications
| Country of Origin | China |
|---|---|
| Brand | Artesyn / Advanced Energy |
| Efficiency | 95.5% |
| Length | 25.9mm |
| Model | LGA80D |
| Depth | 12.2mm |
| Gross Weight | 1.7g |
| Width | 14mm |
| Mount Type | Surface |
| Series | LGA80D |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| MTBF | 50mH |
| Number of outputs | 2 |
| Ripple and Noise | 50mV |
| Maximum Output Power | 200W |
| Maximum Input Voltage | 13.8V |
| Standards/Approvals | EN 60950-1 |
| Minimum Input Voltage | 7.5V |
| Output Voltage 1 | 5.2V dc |
| Output Current 1 | 80A |
| Output Voltage Adjustment Range | 0.59/5.1 V dc |
Key Features
- Offers two independent and configurable 40A, 100W outputs or a combined 80A, 200W output.
- Compact footprint measuring 25.9mm length, 14mm width, and 12.2mm depth.
- Supports wide operating temperature range from -40°C to 85°C for various environments.
- High efficiency of up to 95.5% suitable for cost and space-sensitive applications.
- Includes PMBus support for analog or digital control and excellent transient response.
- No minimum load requirement ensures stable performance under varying conditions.
- Can parallel up to 4 units for current ratings up to 320A on a single power rail.
Product Description
Artesyn / Advanced Energy LGA80D DC/DC Converter is a high-quality non-isolated module offering two configurable 40 amp outputs or a combined single 80 amp output, ideal for industrial, electronic, and power supply applications requiring reliable DC conversion. The device supports surface mounting with a compact size of 25.9 x 14 x 12.2 mm and delivers an output voltage of 5.2V DC with a maximum input voltage of 13.8V.
With a maximum operating temperature of 85 °C and minimum of -40 °C, the converter ensures robust performance in harsh environments. Its high efficiency of 95.5% reduces thermal losses, supporting power-sensitive designs. The module features low ripple noise of 50mV and a wide output voltage adjustment range of 0.59 to 5.1 V DC.
This DC/DC converter is suitable for manufacturing, industrial automation, telecommunications, and laboratory equipment. Its capability to connect up to 4 modules in parallel allows delivering current up to 320A, making it versatile for scalable power solutions. The LGA80D supports PMBus for analog and digital control to facilitate integration in complex systems.
Offers two configurable 40A, 100W outputs or combined 80A, 200W output. Compact surface mount package ideal for space-constrained applications. Wide operating temperature range (-40°C to 85°C) for diverse conditions. High efficiency up to 95.5% minimizes power loss.
Ripple and noise level at 50mV for stable output quality. Supports PMBus enabling advanced monitoring and control. No minimum load required, providing flexible operation. MTBF value of 50mH supporting reliability expectations.
Country of origin is China. This product is new and conforms to EN 60950-1 safety standards. It is ideal for sectors including industrial electronics, telecommunications, test and measurement devices, and power management systems requiring effective DC-DC power conversion.
Explore more DC-DC Converters to find components for your power supply designs and industrial projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 200W, with the capability to provide two independent outputs of 40A each or a combined output of 80A.
This unit has an efficiency rating of up to 95.5%, which helps minimize power loss during operation.
The dimensions of this model are 25.9mm in length, 14mm in width, and 12.2mm in depth.
It operates within a temperature range of -40°C to 85°C, making it suitable for various environmental conditions.
The output voltage of this model is 5.2V DC, with an adjustment range from 0.59V to 5.1V DC.
The ripple and noise level for this converter is specified at 50mV, ensuring stable output quality.
The maximum input voltage for the Artesyn LGA80D is 13.8V, with a minimum input voltage of 7.5V.
Yes, this model is designed for surface mounting, making it suitable for space-constrained applications.
The mean time between failures (MTBF) for this unit is 50mH, indicating its reliability expectations.
No, this model does not have a minimum load requirement, allowing for stable performance under varying conditions.
The converter conforms to EN 60950-1 safety standards, ensuring it meets necessary safety requirements.
This model provides two outputs, which can be configured independently or combined for a total output of 80A.
