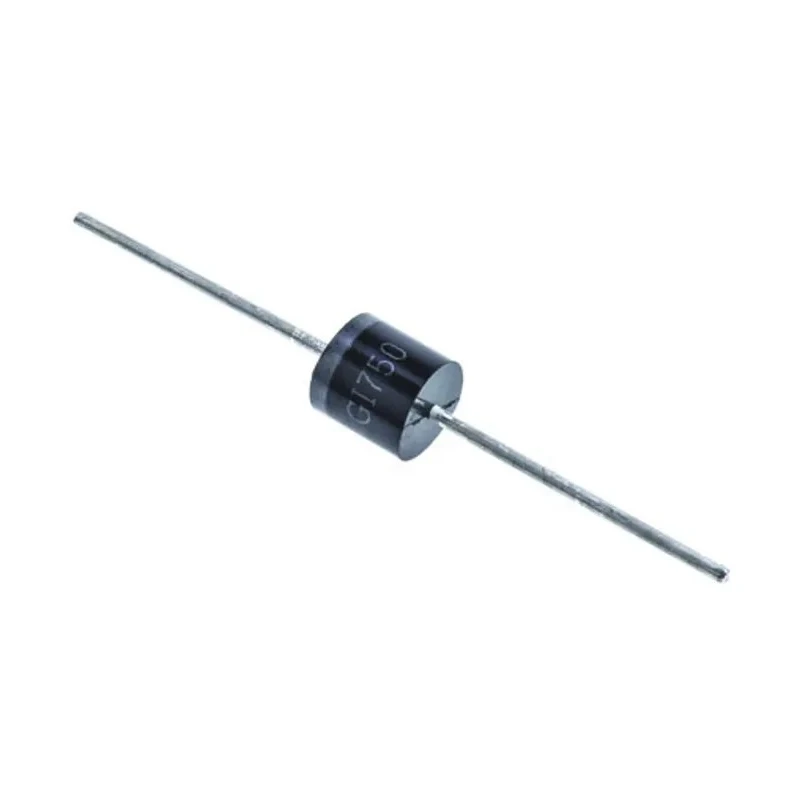

Littelfuse 1-Element Uni-Directional TVS Diode 30 kW Peak Pulse Power, 2-Pin P600 Package 30KPA33A

Littelfuse 30KPA33A is a 1-element uni-directional Transient Voltage Suppressor (TVS) diode designed to safeguard sensitive electronic devices from transient voltage events such as lightning-induced surges or electrostatic discharge. This diode is rated for 30 kW peak pulse power dissipation and is housed in a 2-pin P600 through-hole mount package measuring 9.1 mm in diameter and length, ensuring robust mechanical and thermal performance.

The diode features a minimum breakdown voltage of 36.9 V, a maximum reverse stand-off voltage of 33 V, and a clamping voltage of 58.5 V, providing efficient voltage clamping to protect components downstream. Its maximum peak pulse current is 517.9 A, coupled with a maximum reverse leakage current of 5 mA, making it suitable for high-energy transient events.

Designed with a glass-passivated chip junction, the device ensures high reliability and long-term stability under stressful electrical conditions. It supports operation from -55°C to 175°C ambient temperatures and guarantees high-temperature soldering at 265°C for 10 seconds with lead tension specifications, confirming its robustness for manufacturing and operational conditions.

The diode exhibits a fast response time, typically under 1.0 picosecond, which is essential to effectively suppress voltage spikes without damage. Additional attributes include a halogen-free construction and matte tin lead-free plating, aligning with environmentally friendly manufacturing standards.

Single-element diode designed for uni-directional transient voltage suppression. 30 kW peak pulse power handling capability supports high surge events. Through-hole P600 package suitable for robust mounting and thermal dissipation.

Wide operating temperature range ensures reliable performance in harsh environments. Low incremental surge resistance and ESD protection improve circuit robustness. Halogen-free and lead-free plated for compliance with environmental regulations.

High temperature soldering capability facilitates assembly processing.

This Littelfuse TVS diode is ideal for applications in industrial, electronic manufacturing, communications equipment, and other electronics environments requiring strong surge protection. It helps prevent damage and downtime by clamping transient voltage spikes, thus extending device life and maintaining system reliability.
