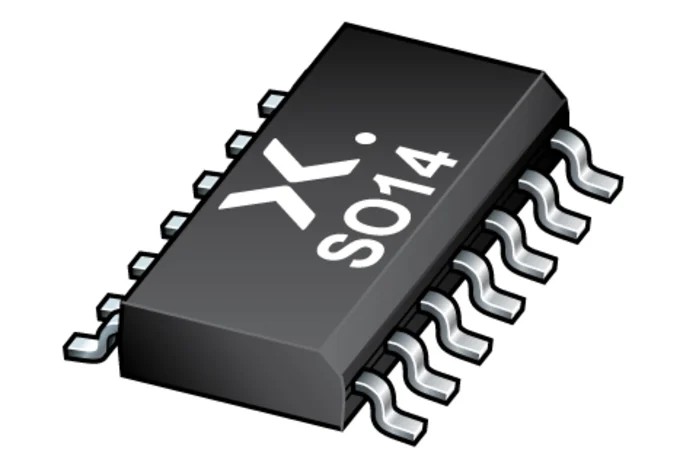

Nexperia 4-Channel Buffer & Line Driver, 3 State, Non-Inverting, 14-Pin SO-16, 4.5-5.5V Supply 74HCT125D,653

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 4-Channel Buffer & Line Driver, 3 State, Non-Inverting, 14-Pin SO-16, 4.5-5.5V Supply 74HCT125D,653

Name: Nexperia 4-Channel Buffer & Line Driver, 3 State, Non-Inverting, 14-Pin SO-16, 4.5-5.5V Supply 74HCT125D,653
Brand: Nexperia
SKU: 95726
Price: 0.22 USD
Availability: InStock



Category Line Interface ICs Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.75mm
Length	8.75mm
Model	74HCT125D,653
Width	4mm
Mount Type	Surface
Output type	3 State
Series	74HCT125
Input Type	TTL
Maximum Operating Temperature	125°C
Package Type	SO-16
Minimum Operating Temperature	-40°C
Polarity	Non-Inverting
IC Type	Buffer & Line Driver IC
Number Of Channels	4
Standards/Approvals	RoHS
Pin Count	14
Maximum Supply Voltage	5.5V
Logic Family	74HCT
Logic Function	Buffer & Line Driver
Minimum Supply Voltage	4.5V
Maximum High Level Output Current	-6mA
Maximum Propagation Delay Time @ CL	150ns
Supply Current	160μA
Maximum Low Level Output Current	6mA

Key Features

This device consists of four independent buffer/line drivers with 3-state outputs.
Outputs are controlled by output enable inputs (nOE) to achieve a high impedance OFF state.
Inputs include clamp diodes supporting mixed 5 V and 3.3 V applications.
Designed for improved current drive and voltage levels suitable for complex circuit layouts.
Wide operating temperature range from -40°C to 125°C ensures reliability in demanding environments.
Compact 14-pin SO-16 surface mount package measuring 8.75mm length, 4mm width, and 1.75mm height.
Maximum propagation delay time at CL is 150ns for fast signal transmission.
Low supply current consumption of 160μA enhances power efficiency.

Product Description

Nexperia 74HCT125D,653 is a 4-channel buffer & line driver IC featuring a 3-state, non-inverting output configuration packaged in a 14-pin SO-16 surface mount device. It operates on a supply voltage range from 4.5 V to 5.5 V, making it compatible with mixed 3.3 V and 5 V logic levels. This quad buffer is designed to provide improved current drive and voltage levels, ensuring enhanced signal integrity for complex electronic layouts.

The IC includes output enable inputs (nOE) that control the 3-state output, allowing the outputs to enter a high impedance OFF state when required. Clamp diodes on the inputs enable interfacing with voltages beyond VCC using current limiting resistors. It supports a wide temperature range from -40°C to 125°C, suitable for industrial and commercial electronics.

Physical dimensions of the device are compact, with a length of 8.75 mm, width of 4 mm, and height of 1.75 mm. The maximum propagation delay time at capacitive load is 150 nanoseconds, providing fast switching performance. The device draws minimal supply current of 160 μA, ensuring energy efficiency.

This Nexperia buffer and line driver IC finds applications in products such as LCD TVs, cell phones, industrial monitoring equipment, and set-top boxes, where signal buffering and line driving with tri-state capability are needed.

This IC contains 4 independent non-inverting buffer/line drivers. Three-state output control via output enable inputs. TTL compatible input with clamp diodes for voltage tolerance. Wide voltage supply range from 4.5 V to 5.5 V.

Operating temperature range from -40°C to 125°C. Compact SO-16 surface mount package. Low propagation delay time of 150 ns for fast logic switching. Low supply current of 160 μA for power efficiency. Applications include LCD TVs, cell phones, and industrial monitoring.
