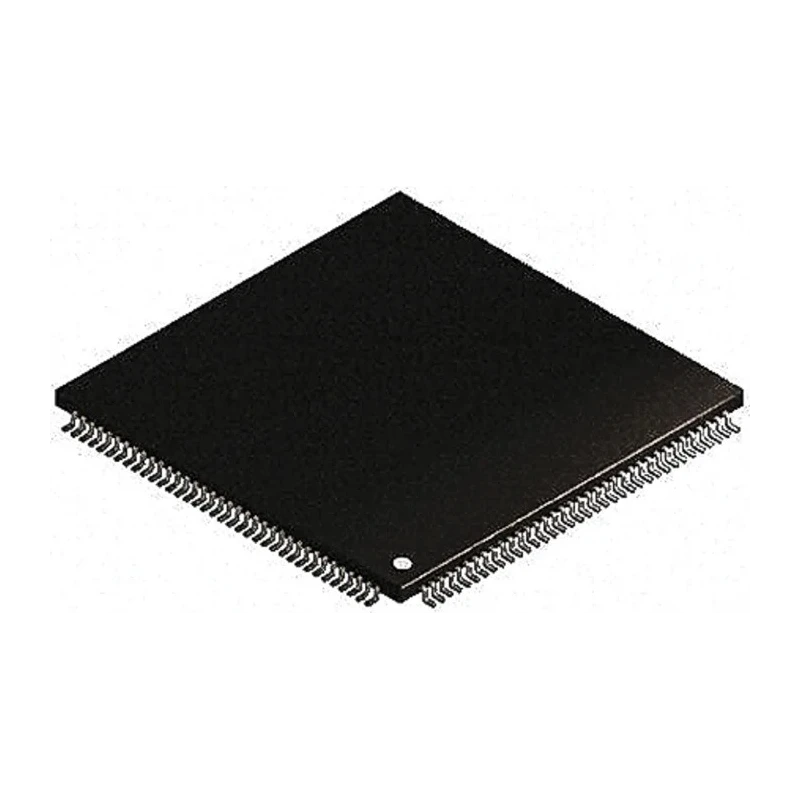

STMicroelectronics 32 bit ARM Cortex M4 Microcontroller 120 MHz 2MB FLASH 144-Pin LQFP STM32L4R5ZIT6

The STMicroelectronics STM32L4R5ZIT6 is a high-performance 32-bit ARM Cortex M4 microcontroller operating at 120 MHz. Featuring 2MB of FLASH memory and 1MB RAM, it is designed for ultra-low-power embedded applications requiring efficient processing power and memory capacity. The device is packaged in a 144-pin LQFP surface mount type, with compact dimensions (20.2 mm length and width and 1.45 mm height) suitable for modern PCB layouts.

This microcontroller operates across a broad voltage range from 1.71 V to 3.6 V, providing flexibility in power supply design. It also supports a wide operating temperature range from -40°C to 85°C, making it ideal for industrial and commercial environments.

Equipped with 136 programmable I/O pins and comprehensive analog peripherals, including 20 channels of 16-bit ADCs, 2 x 12-bit DACs, and 2 analogue comparators, the STM32L4R5ZIT6 facilitates advanced signal processing and interfacing. It includes five timers supporting complex timing tasks for embedded control systems.

The ARM Cortex M4 core features a single-precision floating-point unit and DSP instructions, making it suitable for digital signal processing applications. The microcontroller uses FLASH program memory and adopts a RISC architecture to deliver efficient performance with low power consumption.

The device does not hold specific automotive standards and has a maximum power dissipation rating of 625 mW, ensuring reliable operation within its specified limits. Its comprehensive feature set supports a wide array of industrial, laboratory, and embedded electronics use cases.

Operates with a maximum clock frequency of 120 MHz ensuring high performance. Includes 2MB of FLASH program memory and 1MB RAM for efficient processing. Supports 32-bit ARM Cortex M4 core with single-precision floating-point unit.

Equipped with 136 programmable I/Os and multiple ADCs and DACs for versatile interfacing. Operates within a voltage range of 1.71 V to 3.6 V for flexible power supply options. Compact dimensions of 20.2mm by 20.2mm with a height of 1.45mm for space-saving PCB designs.

Operates reliably in temperatures from -40°C to 85°C, suitable for industrial environments. Provides five timers and 20x 16-bit ADCs facilitating advanced timing and analog signal processing. Includes two 12-bit DACs and two analogue comparators to support mixed-signal applications.

Designed with a FLASH program memory type and RISC instruction set architecture for optimized efficiency.

This microcontroller is ideally suited for embedded system design, industrial automation, digital signal processing, and laboratory equipment control. Explore the full range of STMicroelectronics Microcontrollers for advanced embedded solutions at EnvMart.
