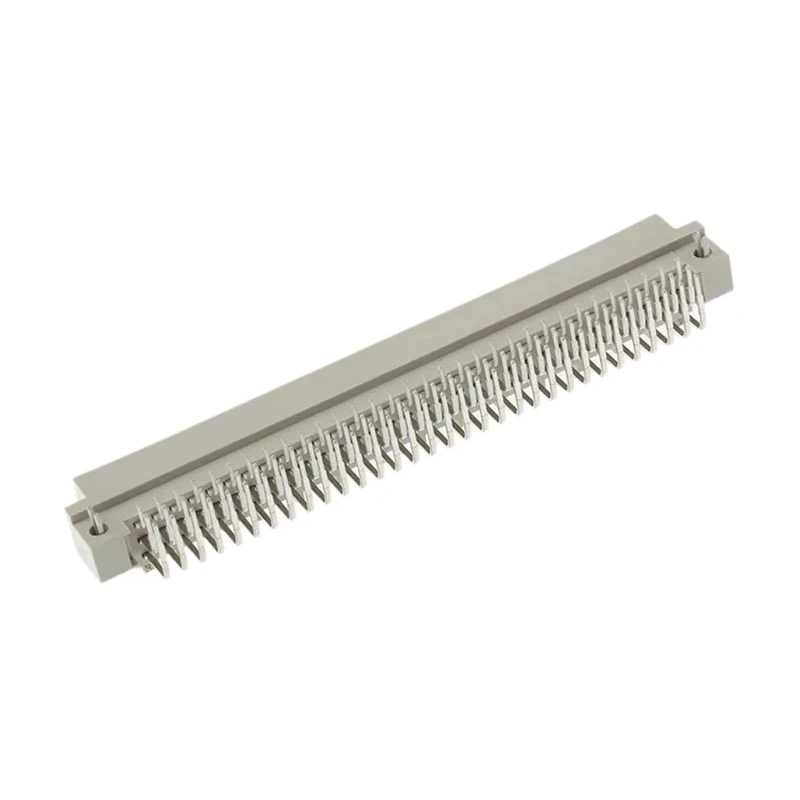

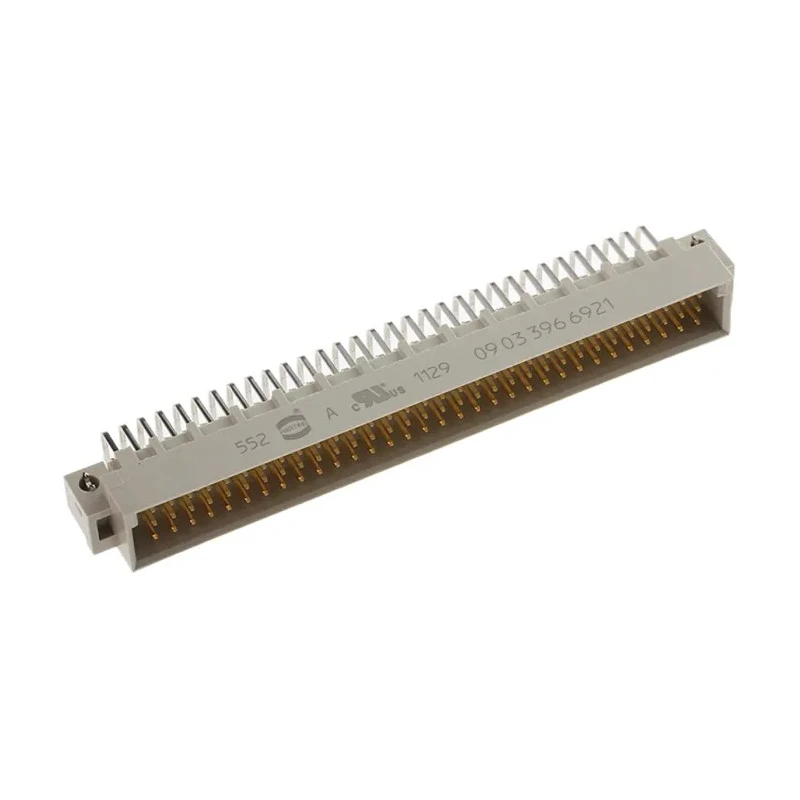

HARTING DIN 41612 96 Way 2.54 mm Pitch, Type Through Hole, Type C/2, Type Solder Class C2, 3 Row Male, Right 09033966921
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 2A |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Thermoplastic |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 96 |
| Contact Gender | Male |
| Connector Gender | Male |
| Maximum Contact Resistance | 20mΩ |
| Row Loading | A/B/C |
Key Features
- Features 96 contacts arranged across 3 rows ensuring high-density connectivity.
- Gold over Nickel contact plating for excellent corrosion resistance and reliable signal transmission.
- Rated for 2A current with maximum contact resistance of 20mΩ.
- Operating temperature range from -55°C to 125°C suitable for demanding environments.
- Constructed with copper alloy contacts and fibreglass reinforced thermoplastic housing for durability.
- Right angle male connector type designed for through hole PCB mounting.
- Class C2 solder termination providing robust solder joints and consistent performance.
- Manufactured in Germany maintaining high quality standards.
Product Description
HARTING 09033966921 DIN 41612 Connector is a 96 way, 2.54 mm pitch, Type C/2 backplane connector designed for PCB through hole mounting applications. This right angle, 3 row male connector provides reliable data and signal transmission in industrial and electronic systems.
This connector features premium gold over nickel plating on copper alloy contacts which ensures low contact resistance (max 20 mΩ), excellent corrosion resistance, and a long mating cycle life suitable for repeated connections and disconnections.
Operating temperature range spans from -55°C up to +125°C, supporting use in harsh environments such as industrial control systems, telecommunications, and automation equipment. The housing is made from fibreglass reinforced thermoplastic, providing mechanical strength and electrical insulation while maintaining a compact form factor.
Class C2 solder termination guarantees firm and reliable mounting on PCBs, minimizing electrical and mechanical failures during operation. The right angle orientation facilitates space-saving PCB designs and efficient routing.
These connectors are part of the DIN 41612 series, widely adopted for backplane and rack interconnections in 19-inch Eurocard racking systems, used extensively across industrial, manufacturing, and communication electronics applications.
Features 96 contacts arranged across 3 rows ensuring high-density connectivity. Gold over Nickel contact plating for excellent corrosion resistance and reliable signal transmission. Rated for 2A current with maximum contact resistance of 20mΩ.
Operating temperature range from -55°C to 125°C suitable for demanding environments. Constructed with copper alloy contacts and fibreglass reinforced thermoplastic housing for durability. Right angle male connector type designed for through hole PCB mounting.
Class C2 solder termination providing robust solder joints and consistent performance. Manufactured in Germany maintaining high quality standards. Choose HARTING DIN 41612 Connectors for secure, efficient, and durable PCB interconnections in electronic manufacturing and industrial applications.
Explore advanced electronics components and precision connectors with EnvMart for your industrial and commercial electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a maximum current of 2A.
It operates within a temperature range of -55°C to 125°C, making it suitable for demanding environments.
This connector features 96 contacts arranged across 3 rows.
It utilizes Class C2 solder termination, which provides robust solder joints for reliable performance.
The contacts are made from copper alloy, and the housing is constructed from fibreglass reinforced thermoplastic.
The maximum contact resistance is specified at 20mΩ.
The contact pitch is 2.54 mm.
This model has a right angle orientation, which is beneficial for space-saving PCB designs.
It is manufactured in Germany, ensuring adherence to high quality standards.
This connector is designed for through hole mounting on PCBs.
It belongs to the DIN 41612 series, which is widely used for backplane and rack interconnections.
The gold over nickel plating on the contacts provides excellent corrosion resistance and reliable signal transmission.
