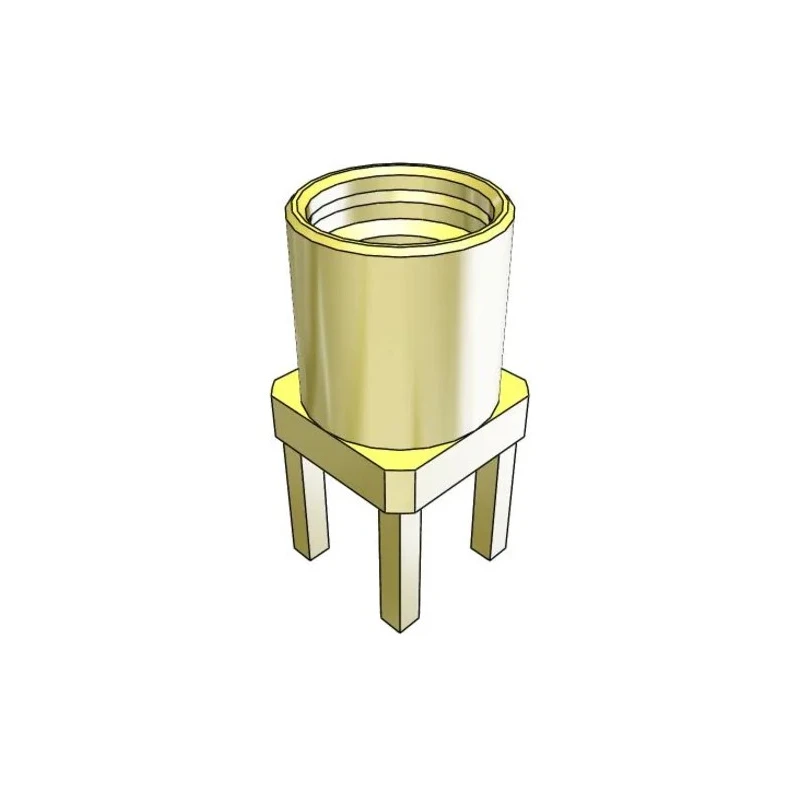

Samtec MMCX Series Micro Miniature Coaxial Connector Through Hole Female 50 Ω Straight Body Solder MMCX-J-P-H-ST-TH1
Specifications
| Country of Origin | India |
|---|---|
| Size | Micro Miniature |
| Brand | Samtec |
| Orientation | Straight |
| Model | MMCX-J-P-H-ST-TH1 |
| Mount Type | Through Hole |
| Operating Frequency | 6GHz |
| Contact Material | Beryllium Copper Alloy |
| Series | MMCX |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Cable Type | Coaxial |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | MCX |
| Body Plating | Gold |
Key Features
- Operates effectively up to 6 GHz frequency.
- Constructed with a beryllium copper alloy contact material plated with gold for enhanced conductivity and corrosion resistance.
- Suitable for through-hole mounting with a micro miniature form factor.
- Supports coaxial cable with normal polarity and offers straight orientation for versatile installation.
- Body plating is gold, ensuring durability and reliable signal transmission.
- Operates within a temperature range of -65°C to 125°C ensuring performance in diverse environments.
- Termination is by solder, allowing secure electrical connection on PCB designs.
- Designed for use in RF applications requiring 50 Ω impedance, providing consistent signal integrity.
Product Description
Samtec MMCX-J-P-H-ST-TH1 is a high-performance micro miniature coaxial connector designed for through hole mounting applications, offering a female interface with a 50 Ω impedance. It features a straight body design with solder termination, making it ideal for RF signal transmission in electronic components.
Constructed from a beryllium copper alloy contact material plated in gold, this connector provides excellent conductivity and resistance to corrosion. The gold plating on the body further enhances durability and ensures minimal signal loss during operation.
Operating efficiently up to 6 GHz frequency, this connector supports demanding RF applications and offers reliability across a wide temperature range from -65°C to 125°C, suitable for both extreme cold and high-temperature industrial environments.
The MMCX series is known for its micro miniature size, making this connector space-efficient and suitable for compact PCB designs. Its through hole mount type ensures robust mechanical stability and consistent electrical performance.
This connector supports coaxial cable type with normal polarity and a straight orientation, facilitating straightforward installation and integration into electronic assemblies. Operates up to 6 GHz frequency for high-speed RF applications.
Beryllium copper alloy contacts with gold plating ensure superior conductivity. Gold-plated body for enhanced durability and corrosion resistance. Through hole mount type provides secure PCB attachment. Micro miniature size ideal for space-constrained designs.
Temperature range between -65°C and 125°C for versatile environmental performance. Solder termination for reliable connection integrity. Straight orientation for flexible usage scenarios.
This product is applicable in various sectors including industrial electronics, telecommunications, and RF equipment manufacturing where high-performance coaxial connections are critical.
Explore more products like this in the Electronics & Electricals category under Electronics Components and Coaxial Connector subcategories at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector operates effectively up to a frequency of 6 GHz, making it suitable for high-speed RF applications.
It features solder termination, allowing for a secure electrical connection on PCB designs.
This connector is designed for a 50 Ω impedance, ensuring consistent signal integrity in RF applications.
It operates within a temperature range of -65°C to 125°C, making it suitable for diverse environmental conditions.
The contact material is a beryllium copper alloy plated with gold, which enhances conductivity and corrosion resistance.
The connector has a straight orientation, facilitating straightforward installation and integration into electronic assemblies.
It is designed for through hole mounting, providing robust mechanical stability and secure attachment to PCBs.
This model is classified as a micro miniature connector, making it suitable for compact PCB designs.
It supports coaxial cables with normal polarity, ensuring compatibility with standard RF applications.
The country of origin for this connector is India.
This connector features a female contact gender, designed for use in various RF applications.
The body is plated with gold, which enhances durability and ensures reliable signal transmission.
