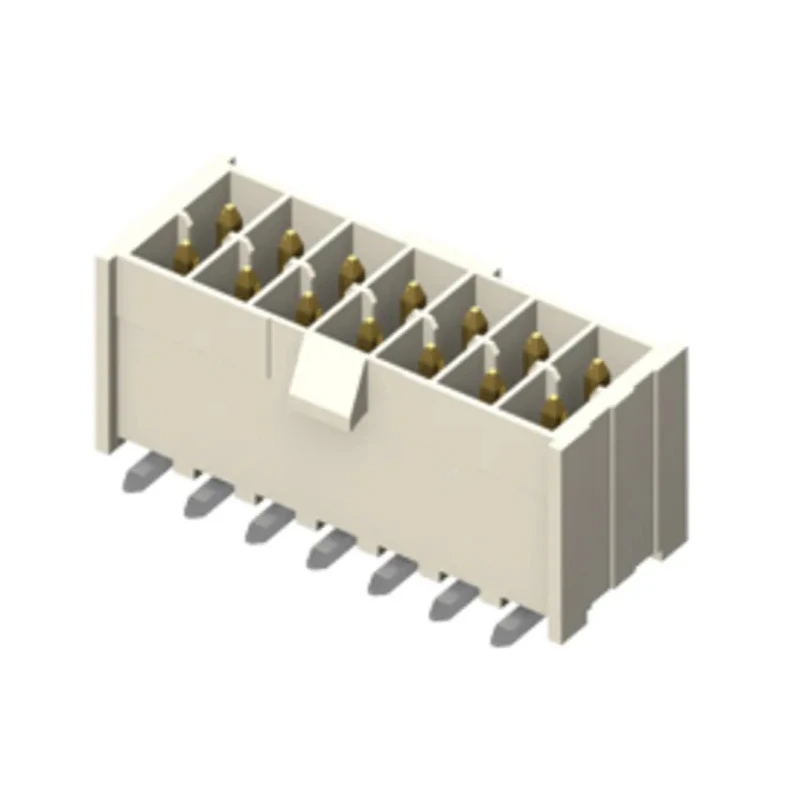

Samtec Straight Through Hole PCB Header, 10 Contacts, 2.54 mm Pitch, 2 Row, Shrouded IPL1
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 954V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.8A |
| Model | IPL1 |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | IPL1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features 10 individual gold-plated phosphor bronze contacts for corrosion resistance.
- Constructed with durable liquid crystal polymer housing ensuring mechanical stability.
- Supports current rating of 3.8 A at 95°C for robust electrical performance.
- Designed with two rows in a straight orientation for compact PCB integration.
- Shrouded to protect contacts and prevent misalignment during assembly.
- Mount type is through-hole for secure soldering on PCB boards.
- Operates safely in temperature range from -55°C up to 125°C.
Product Description
Samtec IPL1 series Straight Through Hole PCB Header is a high-quality connector designed for wire-to-board applications requiring a 2.54 mm pitch. The component features 10 male, gold-plated phosphor bronze contacts housed in a robust liquid crystal polymer shrouded body. With a two-row configuration and through-hole mount type, this header is engineered for secure soldering and durability.
The header supports a current rating of 3.8 A at an operating temperature of 95°C, and can function reliably within a broad temperature range from -55°C to 125°C, making it ideal for demanding industrial and electronic equipment environments. Rated for voltages up to 954 V, it complies with safety requirements for power connectors without specific certifications. The shrouded design offers added protection against misalignment and unintended contact shorts, ensuring assembly reliability.
Its compact size and straight orientation make it suitable for various PCB interconnection tasks in communications, consumer electronics, automation systems, and embedded electronics. Made in the United States, it exhibits quality manufacturing standards expected from Samtec components.
Features 10 individual gold-plated phosphor bronze contacts for corrosion resistance. Constructed with durable liquid crystal polymer housing ensuring mechanical stability. Supports current rating of 3.8 A at 95°C for robust electrical performance.
Designed with two rows in a straight orientation for compact PCB integration. Shrouded to protect contacts and prevent misalignment during assembly. Mount type is through-hole for secure soldering on PCB boards. Operates safely in temperature range from -55°C up to 125°C.
Voltage rating up to 954 V suitable for various electronic applications.
This PCB header from Samtec’s IPL1 series is ideal for electronic manufacturing, testing, prototyping, and repair applications within industrial, laboratory, automation, and consumer electronic sectors. Explore more electronic connectors and components on EnvMart for your specific project demands.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 3.8 A at an operating temperature of 95°C.
The voltage rating is up to 954 V, making it suitable for various electronic applications.
It operates safely within a temperature range from -55°C to 125°C.
This model features 10 individual gold-plated phosphor bronze contacts.
The pitch of the header is 2.54 mm, which is standard for many wire-to-board applications.
The housing is constructed from durable liquid crystal polymer, ensuring mechanical stability.
It features a through-hole mount type for secure soldering on PCB boards.
This model is shrouded, which helps protect the contacts and prevents misalignment during assembly.
It is designed with a straight orientation, allowing for compact PCB integration.
It is suitable for various applications including communications, consumer electronics, automation systems, and embedded electronics.
The termination type for this PCB header is solder, which is standard for through-hole connectors.
It is manufactured in the United States, adhering to quality manufacturing standards.
