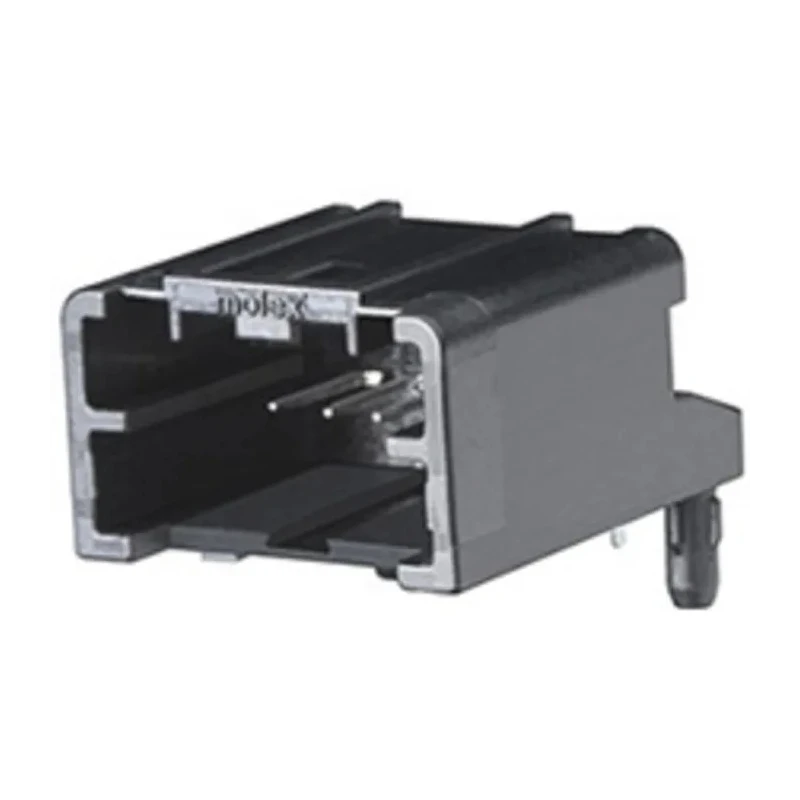

Molex 34793 Automotive Connector Female Black PCB 4 Way Solder Termination 347930040

Molex 347930040 automotive connector is a female black PCB connector with 4 solder termination contacts, designed specifically for automotive electronic component applications. This unsealed right-angle header connector is engineered for compactness and space efficiency, featuring a polyethylene terephthalate housing that offers high-temperature resistance and mechanical robustness.

The design includes smaller terminals delivering 50% space savings over traditional USCAR 0.64mm connectors, enabling more signal density in vehicle interiors. It supports a current rating of 4A and operates reliably between -40°C and 105°C, making it suitable for harsh automotive environments. The brass contacts are plated with tin over nickel to ensure excellent conductivity and corrosion protection.

Key features include an independent secondary lock (ISL) terminal-retention feature that secures terminals inside the housing with a one-piece design. Orientation and board alignment features enhance wire-routing and module design flexibility for vertical and right-angle PCB connectors. The connector is compliant with EU RoHS and REACH SVHC regulations, demonstrating commitment to environmental standards.

The compact dimensions of 14.62mm width, 9.94mm height, and 35.6mm depth minimize PCB footprint, facilitating efficient circuit board layouts. Manufactured in Germany, this product meets strict quality guidelines including the USCAR 050 Interface specifications for automotive connector systems.

This automotive connector is ideal for industrial, automotive manufacturing, electronic control units, HVAC systems in vehicles, and other automotive electrical applications demanding a reliable, space-saving PCB connector solution.

This female automotive connector features 4 solder termination contacts for PCB mounting. Designed with an unsealed right angle header and black polyethylene terephthalate housing. Supports a current rating of 4A ensuring reliable electrical performance.

Operates effectively within a temperature range of -40°C to 105°C. Contact material is brass with tin over nickel plating for durability and corrosion resistance. Compact dimensions of 14.62mm width, 9.94mm height, and 35.6mm depth optimize PCB space usage.

The connector meets EU RoHS and REACH SVHC standards for environmental safety. Designed and manufactured in Germany with rigorous USCAR 050 specifications compliance. Explore more Automotive Connector solutions and related products in the Electronics & Electricals category at EnvMart for precise and certified components.
