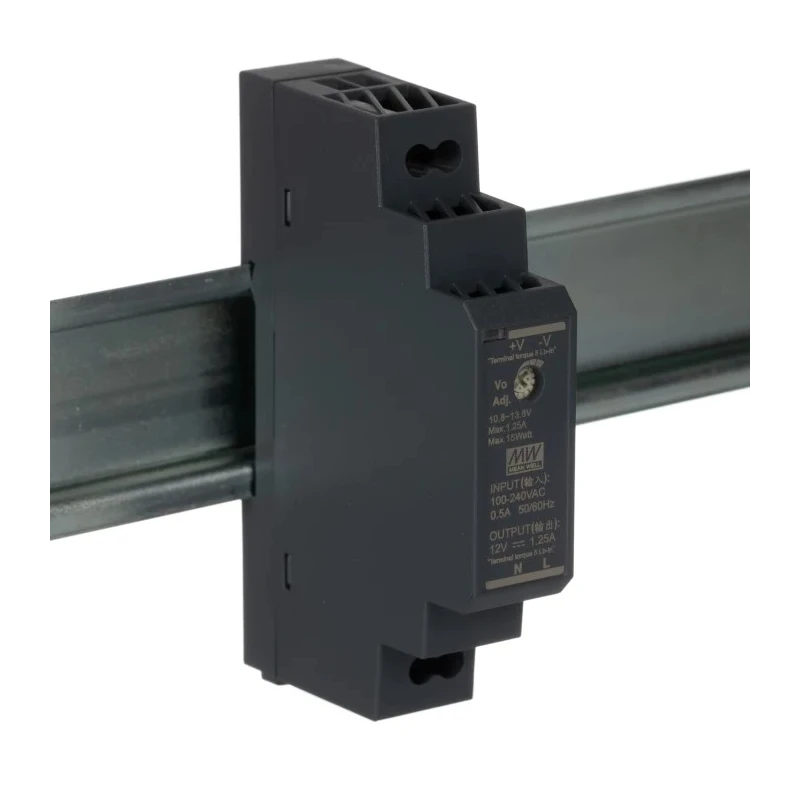

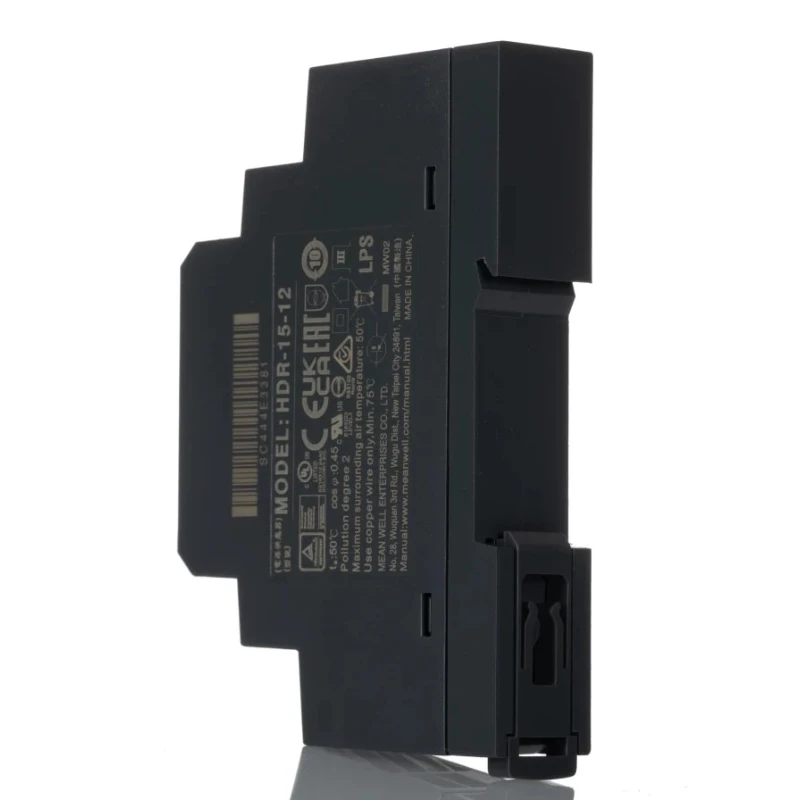

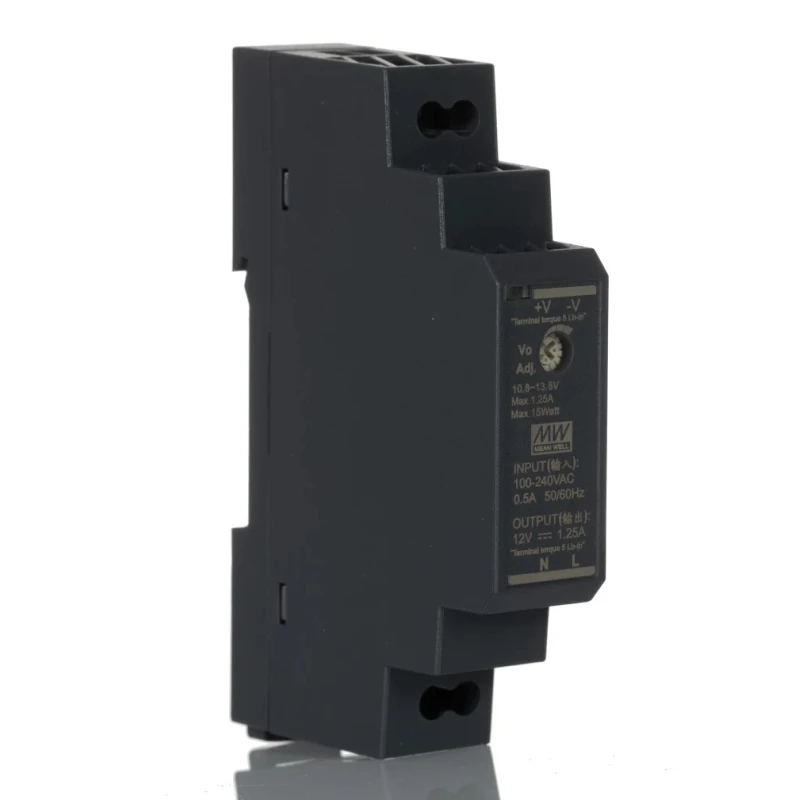

MEAN WELL Ultra Slim Switched Mode DIN Rail Power Supply 12V DC 1.25A Output 15W HDR-15-12
Specifications
| Country of Origin | China |
|---|---|
| Brand | MEAN WELL |
| Power | 15W |
| Efficiency | 85% |
| Height | 90mm |
| Model | HDR-15-12 |
| Depth | 54.5mm |
| Width | 54.5mm |
| Series | Ultra Slim |
| Output Current | 1.25A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Electrical Phase | 1 |
| Standards/Approvals | RoHS, TUV EN 609501, UL |
| Maximum Output Voltage | 12V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- Designed with ultra slim profile for space-saving cabinet installations.
- Supports wide AC/DC input voltage range for flexible power source use.
- Equipped with plastic housing ensuring electrical hazard prevention.
- Output voltage is DC with adjustable function for precise control.
- Operates reliably between -30°C to 70°C ambient temperature.
- Meets safety and quality standards including RoHS, TUV EN 609501, and UL certifications.
- Compatible with industrial DIN rails TS-35/7.5 and TS-35/15 for easy mounting.
Product Description
MEAN WELL HDR-15-12 Ultra Slim Switched Mode DIN Rail Power Supply is engineered to provide stable and efficient DC power output of 15W with 12V at 1.25A, suitable for a variety of industrial and electronic applications.
The unit features an ultra slim design that facilitates compact installation on standard TS-35/7.5 or TS-35/15 DIN rails, conserving valuable control cabinet space. Its stepped plastic housing offers excellent isolation and protection against electrical hazards.
This power supply supports a full range AC/DC input voltage, accepting up to 370V DC and 264V AC inputs, and maintains reliable operation across wide temperature conditions spanning from -30°C to 70°C. Its no-load power consumption and adjustable DC output voltage add to operational efficiency and flexibility.
Certifications including RoHS compliance, TUV EN 609501 safety standard, and UL listing affirm product quality and reliability. With a compact dimension of 90mm height, 54.5mm depth, and 54.5mm width, this PSU integrates seamlessly into power supply and automation systems in manufacturing, industrial control, instrumentation, and similar sectors.
Ultra slim profile for optimized space usage. Wide AC/DC range input enables versatility. Plastic housing for electrical safety. Adjustable DC output voltage for precision. Operation in wide temperature range -30°C to 70°C.
Compliance with RoHS, TUV EN 609501, UL standards. Easy DIN rail mounting on TS-35/7.5 and TS-35/15 rails.
This MEAN WELL ultra slim DIN Rail Power Supply is an ideal choice for industrial automation, control cabinets, telecommunications, and electronic instrument power needs. Explore more power supply solutions in the EnvMart portfolio to find the right fit for your industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HDR-15-12 power supply provides a stable output power of 15W.
This model delivers an output current of 1.25A.
It supports a wide input voltage range, accepting up to 370V DC and 264V AC.
The dimensions are 90mm in height, 54.5mm in depth, and 54.5mm in width.
It operates reliably within a temperature range of -30°C to 70°C.
It is equipped with a plastic housing that provides electrical hazard prevention.
This model is compatible with standard DIN rails TS-35/7.5 and TS-35/15 for easy mounting.
It meets safety and quality standards including RoHS, TUV EN 609501, and UL certifications.
The HDR-15-12 has an efficiency rating of 85%.
This power supply has a single output.
Yes, the output voltage is adjustable for precise control.
The sub-type of this model is Switched Mode.
