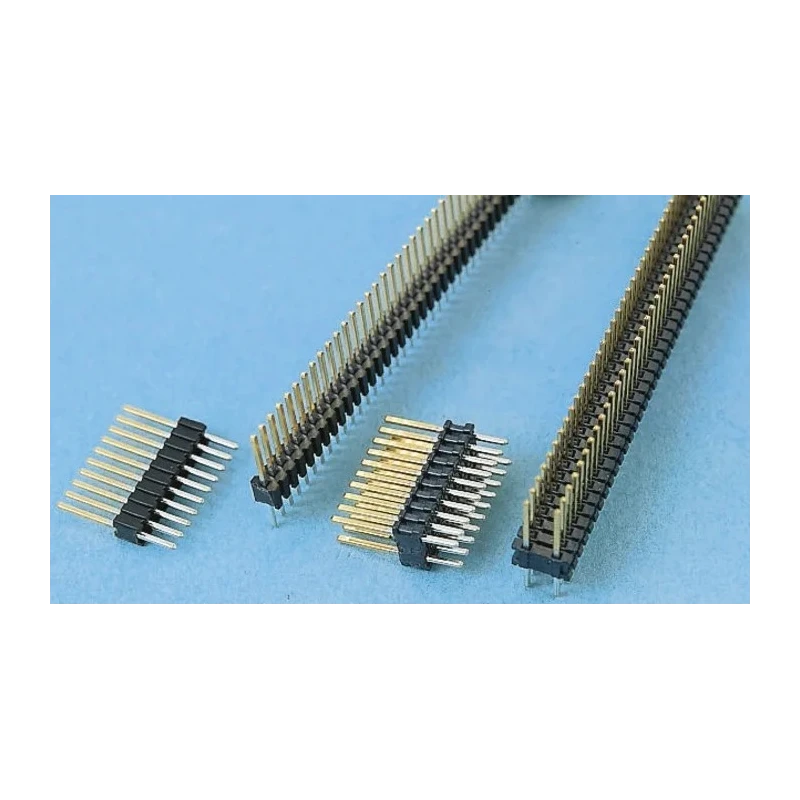

Samtec TMS Series Straight Through Hole Pin Header 20 Contacts, 1.27 mm Pitch, 2 Row, Unshrouded TMS-110-01-S-D

Samtec TMS-110-01-S-D is a high-quality straight through hole pin header designed for printed circuit board (PCB) applications. This model features 20 male contacts arranged in 2 rows with 1.27 mm pitch, ideal for board-to-board connector systems in electronic assemblies. The contacts are made of phosphor bronze with a gold plating that provides superior electrical conductivity and corrosion resistance, ensuring long-lasting performance in industrial and commercial electronics.

The housing is constructed from a durable polymer material that withstands mechanical stress and environmental factors. Its through-hole mounting type enables soldering directly onto the PCB, offering strong mechanical retention and reliable electrical connections. The header is unshrouded, allowing for easy access and straightforward inspection of pins during assembly or maintenance operations.

Electrical specifications include a current rating of 1 Amp, suitable for common low-power electronic circuits. The product operates effectively within a broad temperature range from -55°C up to 105°C, making it suitable for challenging operational environments including industrial electronics, manufacturing equipment, and instrumentation.

Physical dimensions critical for design and engineering are consistent with TMS series standards, with tail pin length at 3.5 mm and mating pin length at 3.2 mm. This ensures compatibility with a wide range of mating connectors and PCBs.

Constructed of phosphor bronze contacts with gold plating for reliable connectivity. Polymer housing provides robust mechanical and environmental protection. Through-hole mount type ensures strong soldered connection to PCB.

Current rating of 1 Amp supports typical electronic applications. Wide operating temperature range from -55°C to 105°C for industrial use. Unshrouded straight male pins facilitate ease of assembly and maintenance. Dual-row 20 contact design with 1.27 mm pitch ensures compact layout.

Compatible with board-to-board connector systems and can be cut to size.

Suitable for industrial, electronic manufacturing, laboratory equipment, and electronic design uses. This component enables secure and high-quality connections in PCB assemblies across a wide spectrum of electronic devices.
