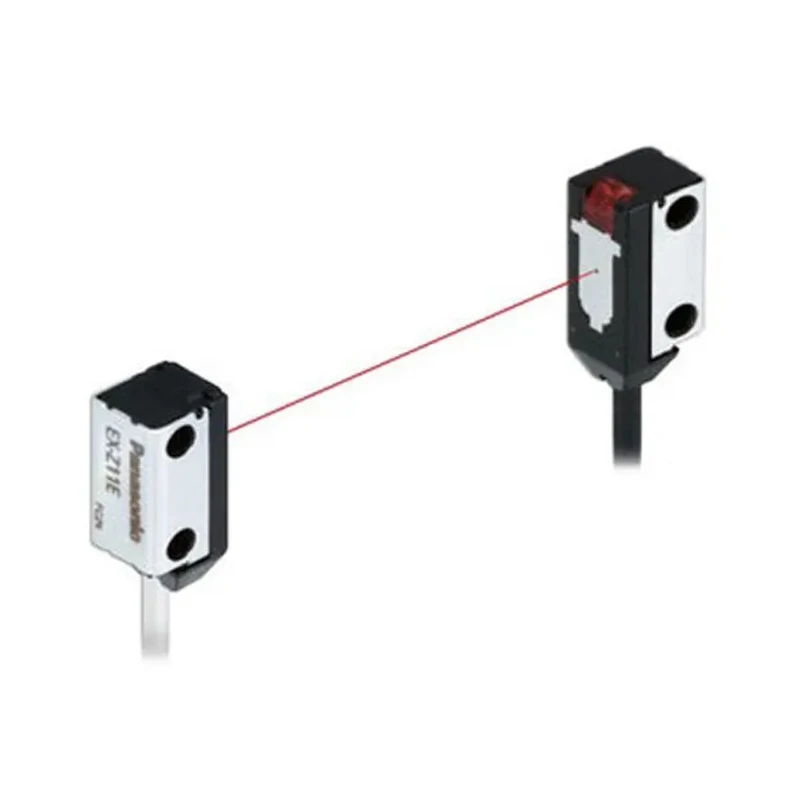

Panasonic Through Beam Photoelectric Sensor Block Type 200 mm Detection Range PNP Output IP67 EX-Z12FA-P

Panasonic EX-Z12FA-P is an ultra-minute through beam Photoelectric Sensor in block style that provides precise detection with a 200 mm sensing range. It incorporates a high-brightness 4-element red LED as the light source ensuring strong light emission for reliable sensing in industrial automation and control applications.

The compact block housing made of Polybutylene Terephthalate allows installation in narrow spaces while the built-in amplifier saves space and wiring complexity. The sensor's 0.3 mm object diameter detection capability improves accuracy for handling small opaque items without optional slits.

This model features PNP output type with wire terminals, operates on 24 V DC maximum voltage, and supports a maximum current of 20 mA. The IP67 enclosure rating guarantees protection against dust and water ingress ensuring durability in harsh industrial environments.

The EX-Z12FA-P sensor maintains performance over a broad temperature range of -10°C to 55°C and offers a fast response time of 500 microseconds, making it well suited for automated assembly lines, material handling, and process control. It adheres to CE, cULus, and IEC certification standards, confirming compliance with international safety and quality norms.

Sold as an emitter and receiver pair labeled respectively with "E" and "D" suffixes, this sensor block is ideal for applications requiring reliable long-range opaque object detection with minimal installation footprint.

The sensor uses a high-brightness 4-element red LED light source for strong, long-lasting emission. Compact block design with built-in amplifier enables installation in narrow spaces. Detects opaque materials with a slit for sensing objects as small as 0.3 mm diameter.

Offers fast response time of 500 microseconds suitable for automation control. Durable Polybutylene Terephthalate housing rated IP67 for dust and water resistance. Operates at maximum 24 V DC and maximum current of 20 mA with wire terminal type.

Wide operating temperature range from -10°C to 55°C for diverse environments. Complies with CE, cULus, and IEC standards ensuring quality and safety.

Panasonic sensors are widely used across industrial automation, manufacturing, water treatment, HVAC systems, and agricultural processes. Discovery and integration on EnvMart enable users to obtain authentic sensors to optimize production efficiency and reliability.
