MEAN WELL Switching Power Supply 1 W 15V DC 85-305V AC Universal Input IRM-01-15

Free Delivery in India | Lowest Global Shipping Charges

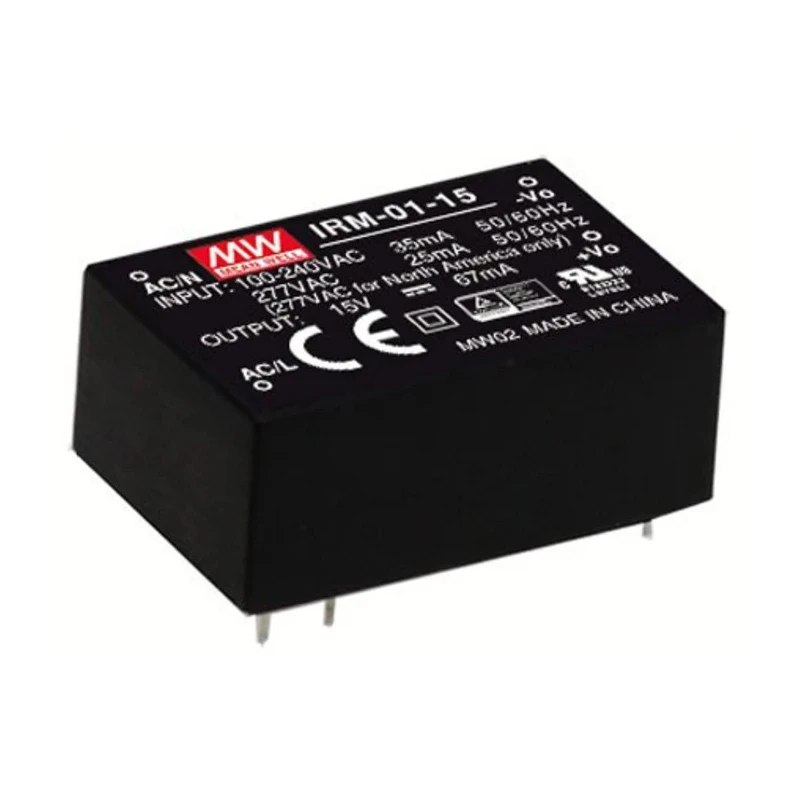

MEAN WELL Switching Power Supply 1 W 15V DC 85-305V AC Universal Input IRM-01-15

Name: MEAN WELL Switching Power Supply 1 W 15V DC 85-305V AC Universal Input IRM-01-15
Brand: MEAN WELL
SKU: 93977
Price: 20.22 USD
Availability: InStock



Category Switching Power Supply Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Power	1W
Efficiency	75%
Length	33.7mm
Model	IRM-01-15
Depth	15mm
Gross Weight	19g
Width	22.2mm
Mount Type	PCB
EMC Immunity	Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, heavy industry level (surge L-N: 1 K V), criteria A
Series	IRM
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-30°C
Number of outputs	1
Maximum Input Voltage	430, 305V dc
Maximum Output Voltage	15V dc
SMPS Output Current	67mA
Minimum Input Voltage	85V ac
EMC Emission	Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3

Key Features

Compact encapsulated design suitable for PCB mounting.
High efficiency up to 77% ensuring low power consumption.
Operates within wide temperature range from -30°C to 85°C.
Built-in protections against overvoltage, overload, and short circuit.
Meets international safety and EMC standards including UL60950-1 and TUV EN60950-1.
Class II isolation level with excellent EMI filtering for electromagnetic compatibility.
Constructed with phenolic case and fully potted silicone for vibration, dust, and moisture resistance.
Suitable for industrial and factory automation equipment, handheld electronics, and mechanical devices.

Product Description

MEAN WELL IRM-01-15 Switching Power Supply is a 1 W, single output AC-DC supply designed for compact PCB mounting applications. It provides a stable 15V DC output voltage with a universal input voltage range of 85V AC to 305V AC, supporting 430 V DC maximum input voltage. The product is constructed with a phenolic case and fully potted with silicone to resist vibration up to 5G, dust, and moisture, enhancing heat dissipation and reliability.

The unit operates efficiently with up to 77% efficiency depending on the model and consumes less than 0.075 W in no-load conditions, adhering to global power consumption regulations. Safety standards compliance includes UL60950-1, TUV EN60950-1 approvals, and design references to IEC60601-1, EN60335-1, and EN61558-1/-2-16. The Switching Power Supply is a Class II design, equipped with overvoltage, overload, and short circuit protections and cooled by natural convection.

This power supply incorporates superior EMI filtering components that satisfy EN55022 Class B requirements without additional parts, ensuring low electromagnetic interference in heavy industry environments. Its operational temperature range extends from -30°C to 85°C, making it suitable for diverse industrial environments.

With dimensions 33.7mm length, 22.2mm width, and 15mm depth, and a lightweight of 19g, IRM-01-15 is ideal for handheld electronic devices, factory automation, mechanical equipment, and industrial electrical applications.

Compact encapsulated AC-DC power supply for PCB mount. Universal AC input voltage of 85-305V AC and 430V DC maximum input. Single output delivering 15V DC at 67mA output current. High efficiency up to 77% with low no-load consumption.

Built-in protections and Class II isolation. Approved to international safety standards: UL60950-1, TUV EN60950-1. Complies with EMC emission and immunity standards for industrial use.

This power supply series by MEAN WELL is reliable for industrial, laboratory, and commercial equipment requiring compact, efficient, and robust DC power solutions. For more industrial power supply options, browse the Switching Power Supplies category on EnvMart.
