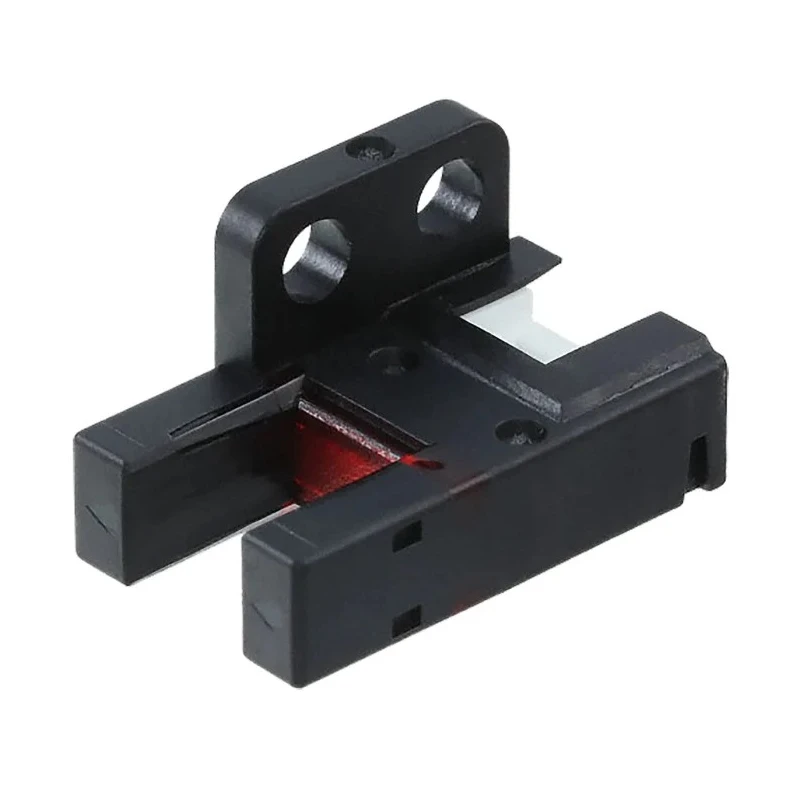

Panasonic Through Beam Photoelectric Sensor Fork Style 6 mm PNP IP40 PM-R65W-P
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Light Source | Infrared |
| Detection range | 6 mm |
| Model | PM-R65W-P |
| IP Rating | IP40 |
| Mount Type | Chassis Mount |
| Housing Material | Polybutylene Terephthalate, Polycarbonate |
| Output type | PNP |
| Series | PM-65 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 50mA |
| DetectIon Type | Through Beam |
| Terminal type | 4-Pin Connector |
| Maximum dc Voltage | 24V dc |
| Standards/Approvals | IEC |
| Materials Detected | Opaque |
| Sensor Style | Fork |
Key Features
- Fork sensor design with integrated emitter and receiver for compact installation.
- Through beam detection with 6 mm range enables precise object sensing.
- PNP output, suitable for direct connection to PLCs or automation controllers.
- Operates at a maximum DC voltage of 24V dc for reliable performance.
- Infrared light source ensures consistent operation even in challenging environments.
- Polybutylene Terephthalate and Polycarbonate housing provide durability against impacts and vibrations.
- IP40 protection rating minimizes dust ingress for industrial and factory use.
- Easy chassis mount using M3 screws simplifies setup.
Product Description
Panasonic PM-R65W-P Through Beam Photoelectric Sensor Fork Style is engineered for compact, reliable presence detection in automation and manufacturing environments. This sensor features a fork-shaped housing, integrating both emitter and receiver in a single unit, reducing installation complexity and maximizing performance.
With a 6 mm detection range and through beam operation, it precisely senses opaque objects, making it suitable for applications such as parts counting, position sensing, machine safety interlocking, and conveyor automation. The sensor utilizes a PNP output, allowing for direct and flexible interfacing with programmable logic controllers (PLCs) and other industrial digital inputs.
Fork sensor design with integrated emitter and receiver for compact installation. Through beam detection with 6 mm range enables precise object sensing. PNP output, suitable for direct connection to PLCs or automation controllers.
Operates at a maximum DC voltage of 24V dc for reliable performance. Infrared light source ensures consistent operation even in challenging environments. Polybutylene Terephthalate and Polycarbonate housing provide durability against impacts and vibrations.
IP40 protection rating minimizes dust ingress for industrial and factory use. Easy chassis mount using M3 screws simplifies setup.
Reverse supply polarity protection, output short circuit protection, and mechanical robustness provided by the resin-reinforced cable and circuit section advance the sensor's reliability. It has a large operating indicator for easy status monitoring from multiple angles, supporting rapid troubleshooting and maintenance. Operation across the temperature range of -25°C to +55°C ensures adaptability to various industrial working conditions.
This sensor is IEC compliant and meets prevailing standards for industrial automation and control gear. Typical use cases include material handling, packaging machines, electronics assembly, and robotic lines where precise detection is essential. Its compact form, easy mounting, and robust electrical/fault protection make it suitable for high-cycle operations.
Explore more Panasonic sensors and industrial automation products in the Photoelectric Sensor category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this model is 6 mm, allowing for precise sensing of opaque objects.
It features a PNP output, which is suitable for direct connection to programmable logic controllers (PLCs) or automation controllers.
The maximum operating voltage for the PM-R65W-P is 24V DC.
This model is designed to detect opaque materials.
The sensor has an IP40 protection rating, which minimizes dust ingress, making it suitable for industrial environments.
It operates within a temperature range of -25°C to +55°C, ensuring adaptability to various industrial conditions.
The housing is made from Polybutylene Terephthalate and Polycarbonate, providing durability against impacts and vibrations.
This sensor is designed for chassis mounting and can be easily installed using M3 screws.
It utilizes an infrared light source for consistent operation, even in challenging environments.
It features a 4-pin connector for electrical connections.
This model is IEC compliant, meeting prevailing standards for industrial automation and control gear.
It is suitable for applications such as parts counting, position sensing, machine safety interlocking, and conveyor automation.
