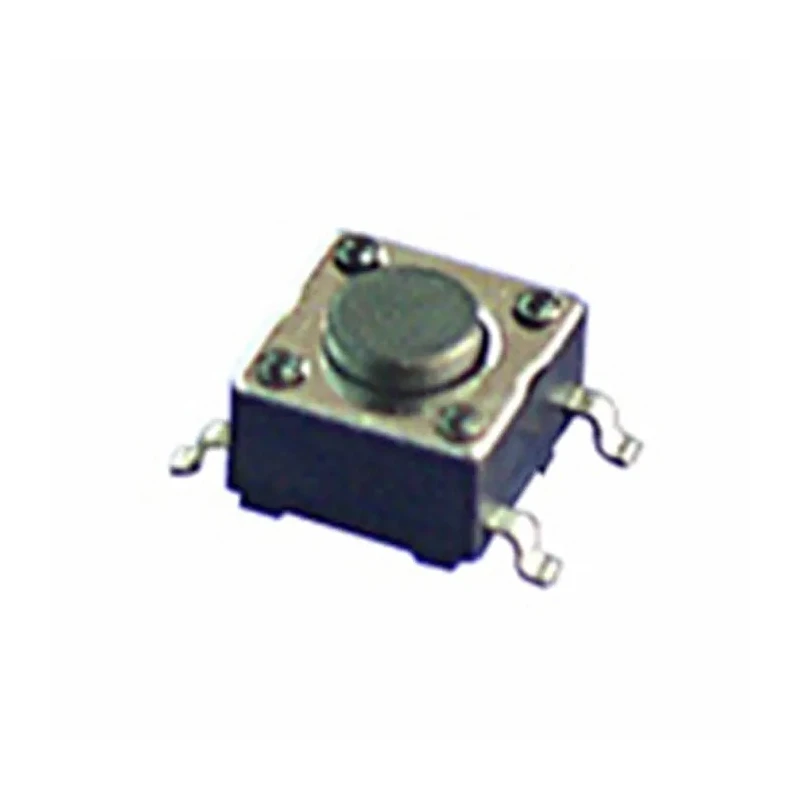

NKK Switches IP67 Tactile Switch Flat Black, 0.8 mm Actuator, SPST 125mA 15V DC, Surface Mount HP0315AFKP2-S
Specifications
| Country of Origin | China |
|---|---|
| Brand | NKK Switches |
| Height | 4.4mm |
| Length | 6.2mm |
| Model | HP0315AFKP2-S |
| IP Rating | IP67 |
| Width | 6.2mm |
| Mount Type | Surface |
| Series | HP03 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Switch Configuration | (On)-Off |
| Minimum Operating Temperature | -20°C |
| Terminal type | Gull Wing |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Actuator Length | 0.8mm |
| Contact DC Voltage | 15V dc |
| Actuator Style | Flat |
| Actuator Orientation | Straight |
| Switch Contact Current | 125mA |
| Operating Force | 1.6N |
| Mechanical Life | 500000Cycles |
Key Features
- IP67 rated for dust and water protection, ideal for harsh environments.
- Flat actuator with 0.8 mm height for comfortable tactile feedback.
- SPST contact configuration with a momentary switch operation.
- 125mA switch contact current at 15V DC, ensuring reliable performance.
- Surface mount gull wing terminals allow easy automated soldering.
- Heat resistant resin construction for durability and longevity.
- Gold plated contacts optimize conductivity and minimize corrosion.
- Mechanical life rated for 500,000 cycles, designed for frequent usage.
Product Description
NKK Switches HP0315AFKP2-S IP67 Tactile Switch is a robust, flat actuator switch designed for compact electronic devices requiring high reliability and precise feedback. Featuring a black flat actuator with a height of 0.8 mm, this switch is engineered for comfortable operation and integration in densely packed PCBs and panels.
The HP0315AFKP2-S model offers SPST contact configuration and momentary switch operation, making it well-suited for control panels, instrumentation, and keyboard applications. Rated for 125mA contact current and 15V DC, it supports both low and moderate signal switching requirements in various industrial and commercial environments.
Constructed with heat-resistant resin, the switch ensures performance even under demanding thermal conditions. The gull wing terminal design allows for reliable surface mount installation with automated soldering methods. Gold plated contacts provide enhanced electrical conductivity and corrosion resistance for extended lifecycle use.
IP67 ingress protection means the device is fully shielded against dust and water ingress, making it suitable for harsh environments. Compact 6.2 mm × 6.2 mm body footprint facilitates space-efficient component placement.
Flat, straight actuator orientation is ideal for panel and keypad integration without protrusions. Mechanical life of up to 500,000 cycles ensures long-term durability and repeated actuation. 20°C to 70°C operating temperature range supports diverse industrial and commercial applications.
RoHS compliant for global electronics manufacturing requirements.
This tactile switch finds use in various sectors including electronic manufacturing, industrial control, keyboard assemblies, test equipment, and automation. Its high reliability makes it a preferred choice for demanding industrial, laboratory, and commercial devices.
Explore additional options in Tactile Switches and industrial components by NKK Switches and other brands in the EnvMart Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tactile switch has an IP67 rating, meaning it is fully protected against dust and can withstand immersion in water up to a certain depth, making it suitable for harsh environments.
This model features an SPST (Single Pole Single Throw) contact configuration, designed for momentary switch operation.
The dimensions of the tactile switch are 6.2 mm in length and width, with a height of 4.4 mm.
The maximum operating temperature for the tactile switch is 70°C, allowing it to function in various industrial applications.
The mechanical life of the HP0315AFKP2-S is rated for up to 500,000 cycles, ensuring it can withstand frequent usage.
It features gull wing terminals, which facilitate reliable surface mount installation and are suitable for automated soldering.
The actuator style is flat, with a height of 0.8 mm, designed for comfortable tactile feedback during operation.
The switch is rated for a contact current of 125 mA at a voltage of 15V DC, suitable for low to moderate signal switching.
The operating force for this tactile switch is 1.6 N, which is the force needed to actuate the switch.
Yes, the HP0315AFKP2-S is RoHS compliant, meeting global electronics manufacturing requirements.
The minimum operating temperature for this model is -20°C, allowing it to function in cooler environments.
This tactile switch is suitable for various applications including control panels, instrumentation, keyboard assemblies, and automation systems.
