| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-C9V1-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101, RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 9.1V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 100Ω |
| Typical Voltage Temperature Coefficient | 3.8mV/K |

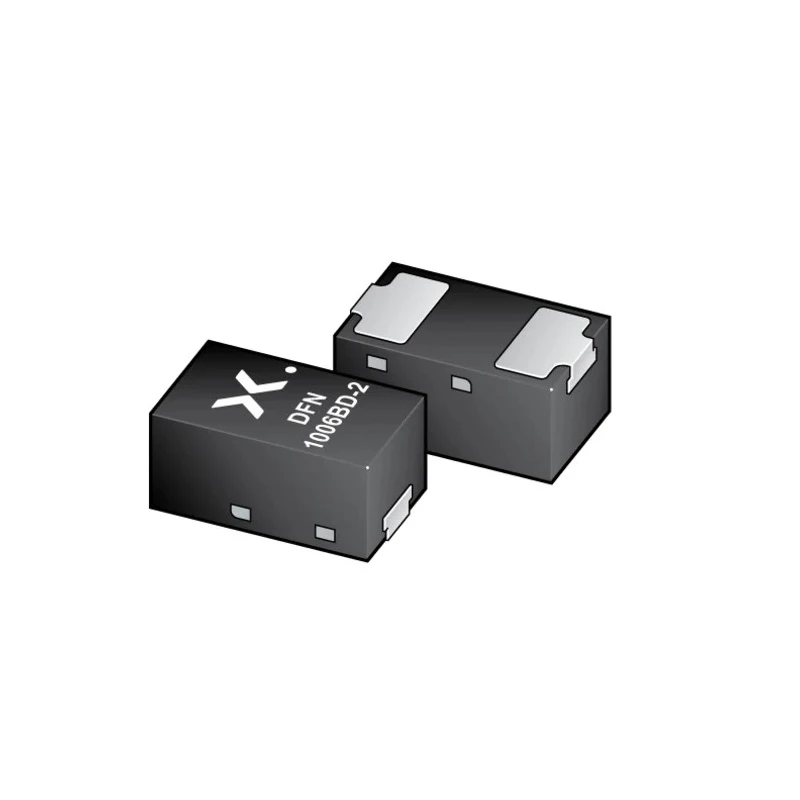

Nexperia BZX884S-C9V1-QYL 9.1V Zener diode is a high-precision single-element device, suitable for electronic circuit protection, voltage regulation and reference applications in the automotive and industrial sectors. Its surface-mount package (DFN1006BD-2) is optimized for compact PCB designs, featuring side-wettable flanks that enhance machine insertion efficiency and solder reliability.
This general-purpose zener diode offers a nominal Zener voltage of 9.1V, making it ideal for voltage regulation and limiting functions. Its tolerance of ±2% ensures accuracy and reliability in sensitive circuitry, while a maximum power dissipation of 365mW supports robust operation in demanding environments.
The two-pin design, housed in the DFN1006BD-2 package, enables ease of surface mounting for high-density electronic assemblies. Zener diode with nominal breakdown voltage of 9.1V, supporting consistent voltage regulation.
Single element chip configuration, designed for space-efficient surface mount deployment. Maximum power dissipation rating of 365mW, reliable for industrial and automotive applications. DFN1006BD-2 package (SOD882BD) with ultra-small footprint and side-wettable flanks.
Voltage tolerance of ±2% and maximum Zener impedance of 100Ω. Test current rating of 5mA and reverse leakage current up to 500nA. Wide operational temperature range from -55°C to +150°C. Compliant with AEC-Q101 and RoHS standards for quality and environmental safety.
Its compact design is well suited for PCB assemblies requiring high component density. The device is commonly deployed in automotive electronics, consumer devices, industrial power supplies, and voltage reference elements.
Whether used for electronic circuit protection or voltage stabilization, the BZX884S-C9V1-QYL provides consistent performance and reliable operation across a wide range of environments. See EnvMart’s Zener Diode category for more models from Nexperia and other global manufacturers.
