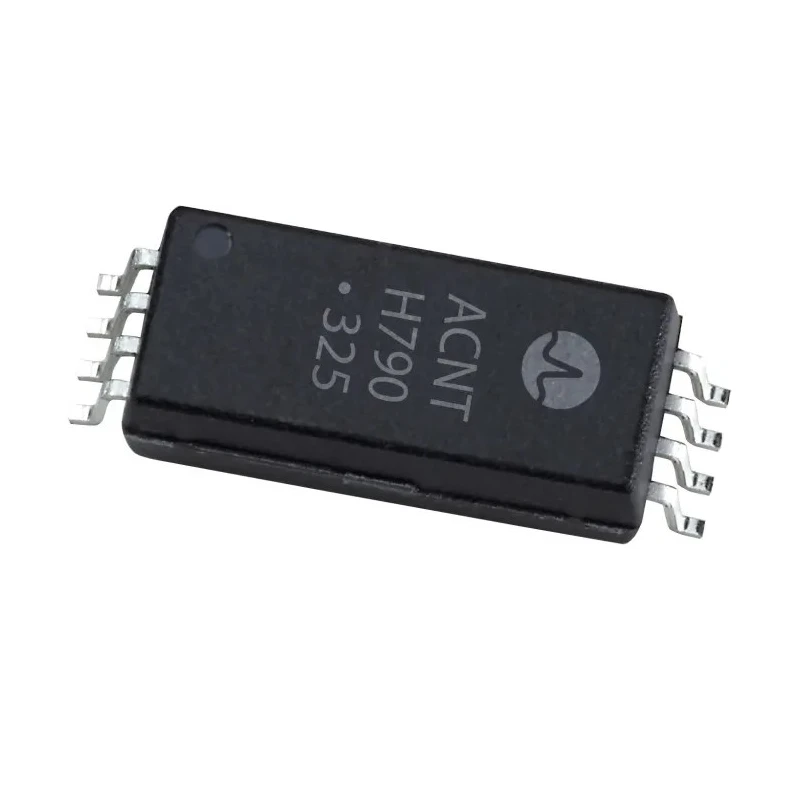

Broadcom Optocoupler Surface Mount 8-Pin ACNT-H790-500E Isolation Amplifier
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Broadcom |
| Model | ACNT-H790-500E |
| Mount Type | Surface |
| Bandwidth | 200 kHz |
| Series | ACNT-H790 |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 230mA |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Number of Pins | 8 |
| Typical Rise Time | 1.7μs |
Key Features
- Suitable for precise isolation of signals in motor drives and renewable energy systems.
- Features advanced Sigma-Delta A/D modulation technology for high accuracy.
- Surface mount SO-8 package with 8 pins for easy PCB integration.
- Provides high common-mode transient immunity and safety isolation up to 15 kV/μs.
- Wide operating temperature range from -40°C to 105°C for robust performance.
- Offers 1.7μs rise and fall time and low input offset voltage for reliable analog signal transmission.
- RoHS compliant and designed with 142 mm creepage and clearance for industrial safety requirements.
Product Description
The Broadcom ACNT-H790-500E Optocoupler is a high-performance surface mount isolation amplifier, engineered for current and voltage sensing in power electronic applications. This device is equipped with advanced Sigma-Delta A/D modulation technology, delivering high gain accuracy (±3%) and low gain drift, making it particularly suited for industrial use in motor drives, renewable energy, and automation systems.
Designed in a stretched SO-8 package with 8 pins, the ACNT-H790-500E provides a generously sized creepage and clearance distance of 14.2 mm for optimal electrical insulation and safety. Its robust input offset voltage and excellent linearity ensure minimal signal distortion during operation.
This optocoupler supports a maximum input current of 230 mA, operates in a wide temperature range from -40°C up to 105°C, and features a rapid 1.7μs rise and fall time for dynamic analog signal isolation. The 15 kV/μs high common-mode transient immunity makes it suitable for environments subject to high electrical noise.
Precise isolation designed specifically for current and voltage sensing in industrial and power electronics. Surface mount form factor facilitates easy integration into densely packed circuit boards. Excellent signal accuracy and stability over temperature variations, minimizing system errors.
Ideal for motor drives, renewable energy systems, industrial automation, and general power conversion systems.
This product is widely used in applications where reliable signal isolation and protection are critical, such as motor controls, solar inverter circuits, and industrial power management systems.
Enhance your industrial and power electronics projects with Broadcom's trusted optoelectronic technology. For more Optocouplers and isolation amplifiers, browse the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bandwidth of this model is 200 kHz, making it suitable for high-frequency applications in industrial automation and power electronics.
The maximum input current for the ACNT-H790-500E is 230 mA, allowing it to handle significant signal levels in various applications.
It operates within a temperature range of -40°C to 105°C, ensuring reliable performance in diverse environmental conditions.
This optocoupler features a single channel, which is typical for applications requiring precise signal isolation.
The typical rise time for this model is 1.7μs, which supports rapid signal transmission in dynamic applications.
The ACNT-H790-500E uses a surface mount design, facilitating easy integration into printed circuit boards (PCBs).
This optocoupler is RoHS compliant, ensuring it meets environmental safety standards for electronics.
It has a creepage and clearance distance of 14.2 mm, which provides optimal electrical insulation and safety in industrial applications.
This model is ideal for applications such as motor drives, renewable energy systems, and industrial automation where reliable signal isolation is critical.
The ACNT-H790-500E offers high common-mode transient immunity of up to 15 kV/μs, making it suitable for environments with high electrical noise.
The country of origin for this optocoupler is the Philippines, indicating its manufacturing location.
It utilizes advanced Sigma-Delta A/D modulation technology, which provides high accuracy and low gain drift for effective signal isolation.
