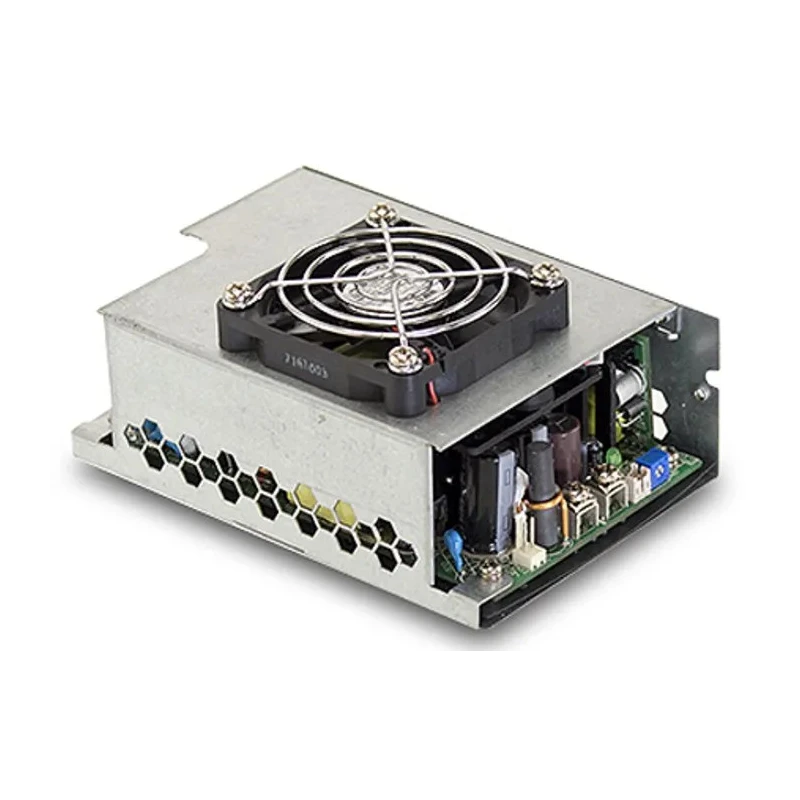

MEAN WELL Switching Power Supply 12V DC, 249.6W, Medical Grade, Chassis Mount RPS-400-12-TF
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Power | 249.6W |
| Efficiency | 91.5% |
| Length | 130mm |
| Model | RPS-400-12-TF |
| Depth | 66.5mm |
| Gross Weight | 580g |
| Width | 66.5mm |
| Mount Type | Chassis |
| Series | RPS-400-12 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Maximum Output Voltage | 12V dc |
| SMPS Output Current | 33.3A |
| Minimum Input Voltage | 80V ac |
Key Features
- Provides a regulated 12V DC output with a maximum output current of 33.3A.
- Delivers a high power output of 249.6W for medical and industrial equipment.
- Features universal AC input with full range compatibility from 80V AC to 264V AC, and supports up to 370V DC input.
- Built in PFC function, medical safety approvals, and suitability for Class I or Class II installations.
- Miniature chassis mount design with robust protection mechanisms including short circuit, overload, over voltage, and over temperature.
- Operates efficiently with a maximum efficiency rating of 91.5% and minimal leakage current.
- Certified to UL 62368-1, TUV BS EN/EN 62368-1, IEC 60950-1, CSA C22.2, EAC TP TC 00, CCCGB4943.1 and other global standards.
Product Description
MEAN WELL RPS-400-12-TF Switching Power Supply is engineered for reliable performance in demanding medical and industrial environments. Delivering a regulated output of 12V DC and a high power capacity of 249.6W, this unit is designed to support sensitive equipment needing stable, robust power supplies, such as oral irrigators, hemodialysis machines, medical monitors, sleep apnea devices, pumps, and electric beds.
The RPS-400-12-TF features a universal AC input range from 80V AC to 264V AC and is also compatible with input voltages up to 370V DC. Its miniature size allows for easy installation in confined spaces, while chassis mount compatibility ensures secure integration into equipment or panel assemblies.
High performance regulated output voltage of 12V DC at up to 33.3A. Exceptional efficiency at 91.5%, reducing energy loss and heat generation. Built-in PFC function to improve power factor and reduce harmonics. Medical safety certified for use in BF rated "patient contact" devices and hospital-grade systems.
Multiple protection features including short circuit, overload, over voltage, and over temperature safeguards. Free air convection cooling up to 250W and forced air cooling capability for higher loads. Supports standby 5V output for auxiliary purposes.
Advanced approvals: UL, TUV, IEC, CSA, EAC, CCC, BSMI, and AS/NZS standards for global compliance.
Its robust design incorporates no-load power consumption and low leakage current, optimizing safety and efficiency for critical installations. Integral fan supply and remote sense function further expand operational reliability.
The compact form factor (130mm x 66.5mm x 66.5mm) and lightweight construction (580g) facilitate easy handling and installation in medical carts, laboratory bench setups, and industrial automation panels.
Applications span a wide range, including medical equipment, laboratory instruments, industrial control cabinets, water treatment systems, and commercial electronics needing certified, powerful, and safe power supplies.
Explore more certified industrial and medical power solutions by MEAN WELL and other global brands in the Switching Power Supply category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 249.6W.
It provides a regulated output voltage of 12V DC with a maximum output current of 33.3A.
This unit has an efficiency rating of 91.5%.
The dimensions are 130mm in length, 66.5mm in width, and 66.5mm in depth, with a gross weight of 580g.
It is suitable for Class I or Class II installations and is certified for use in BF rated "patient contact" devices.
This model includes protection mechanisms for short circuit, overload, over voltage, and over temperature.
The operating temperature range is from -30°C to 70°C.
It is designed for medical equipment, laboratory instruments, industrial control cabinets, and water treatment systems.
Yes, it operates with free air convection cooling up to 250W and has forced air cooling capability for higher loads.
This model features a chassis mount design for secure integration into equipment or panel assemblies.
