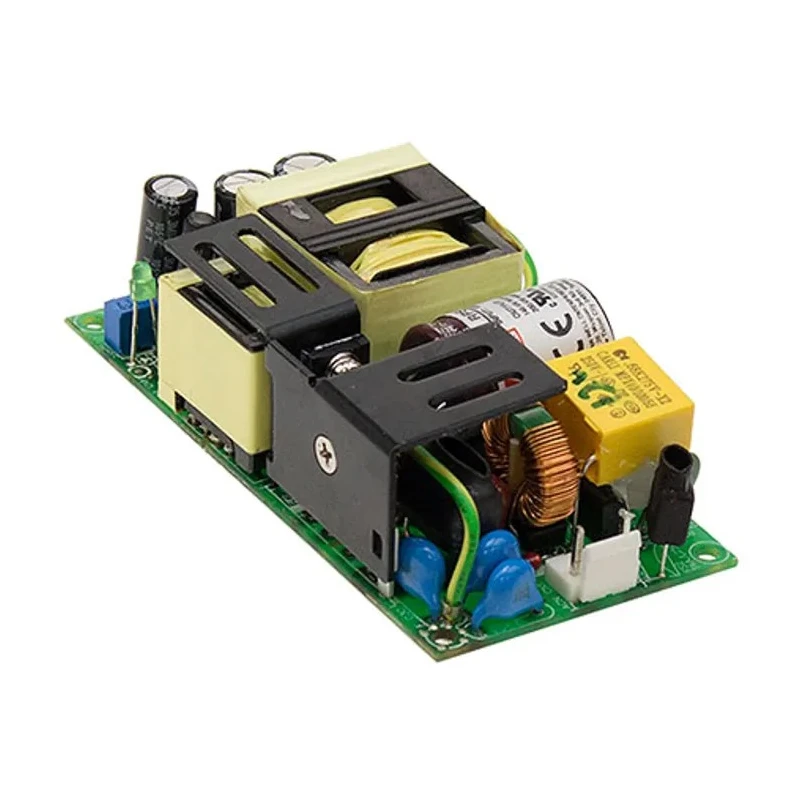

MEAN WELL Switching Power Supply 24V DC, 141.6W, Panel Mount, 1 Output, Medical Grade RPS-200-24

MEAN WELL RPS-200-24 Panel Mount Switching Power Supply, 24V DC, 141.6W is engineered to deliver precision performance in medical, laboratory, and industrial environments. This compact, highly efficient switch mode power supply features a single output at 24V DC, ideal for powering sensitive electronics and equipment requiring stable, clean voltage.

The RPS-200-24 model is designed for both Class I and Class II installations, conforming to stringent medical regulations including 2 x MOPP ratings for patient contact equipment. Safety is further assured with comprehensive protections against short circuit, overload, overvoltage, and overtemperature conditions, making it suitable for critical applications.

With a power output of 141.6W and current capability up to 8.4A, this supply meets the demands of oral irrigators, hemodialysis machines, medical monitors, sleep apnea devices, and precision medical pumps. Universal AC input and built-in PFC function ensure compatibility with a wide range of mains environments, supporting operation from 80V AC up to 370V DC.

Offers a maximum output voltage of 24V DC for stable power supply. Single output configuration with panel mount design ensures easy integration. Delivers up to 141.6W power and 8.4A output current for efficient operation.

Wide operating temperature range from -30°C to 70°C enhances durability. Compact dimensions (101.6mm x 29mm x 29mm) allow flexible installation. High efficiency of 94% reduces energy consumption. Conforms to medical regulations with low leakage current and 2 x MOPP safety rating.

Free air convection cooling suitable for sensitive environments. Short circuit, overload, overvoltage, and overtemperature protection included.

Efficiency at 94% and low no-load power consumption make this power supply ideal for applications requiring minimized heat and energy waste. The mechanical design allows simple panel mounting with robust physical dimensions: length 101.6mm, width 29mm, depth 29mm, and a weight of just 190g.

This unit is approved to international standards including AS/NZS62368.1, BSMI CNS143361, CCCGB4943.1, CSA C22.2 No. 62368-1, EAC TP TC 00, IS 13252(Part1)/IEC 60950-1, UL 62368-1, TUV BS EN/EN 62368-1, and has EMC EN55011 compliance.

Industrial and laboratory use cases include equipment in manufacturing sites, quality testing setups, healthcare facilities, and research institutions where reliable and safe DC power is essential. For more switching power supplies and specialized solutions, browse the EnvMart Electronics & Electricals category and MEAN WELL product range.
